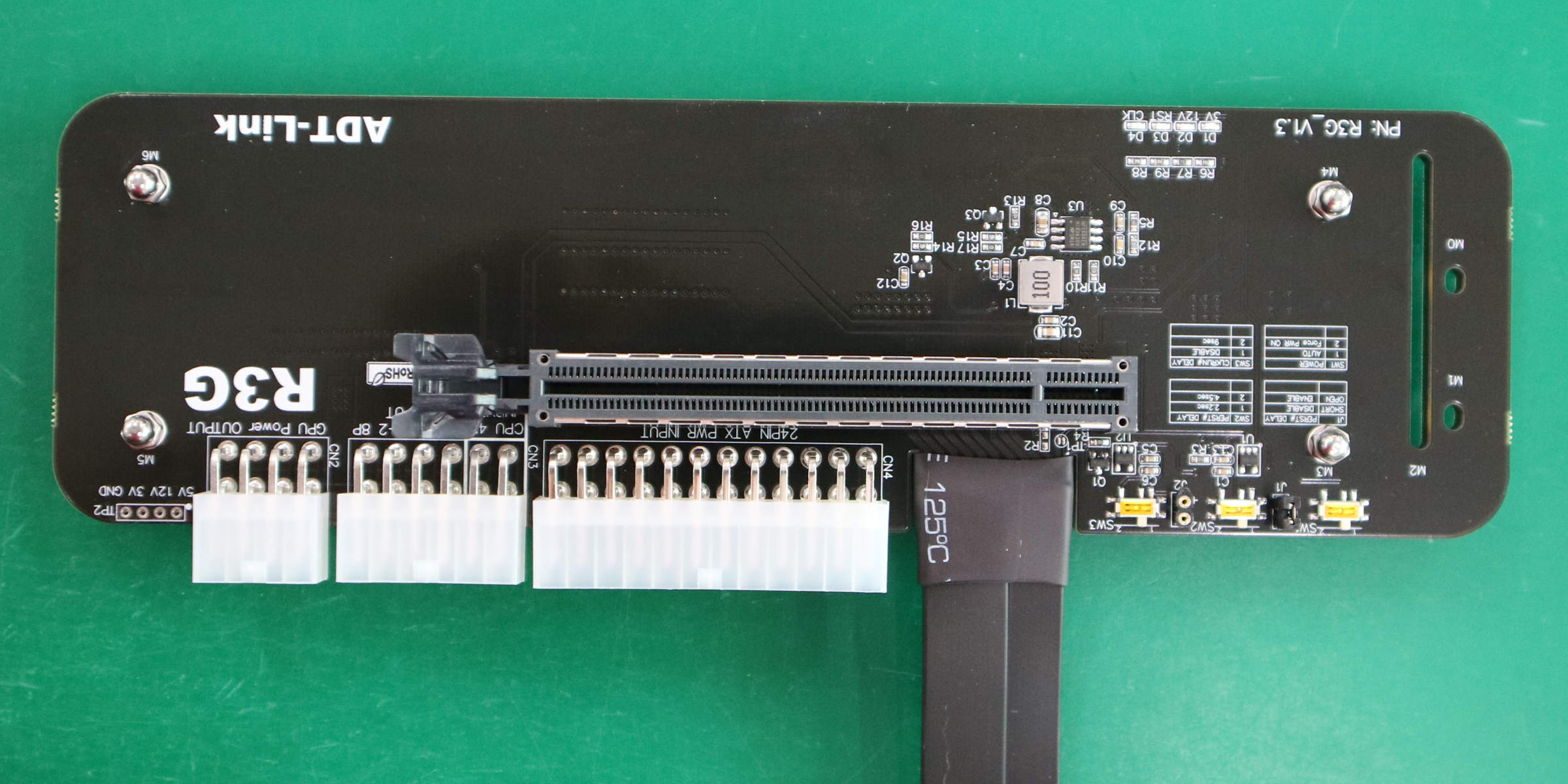

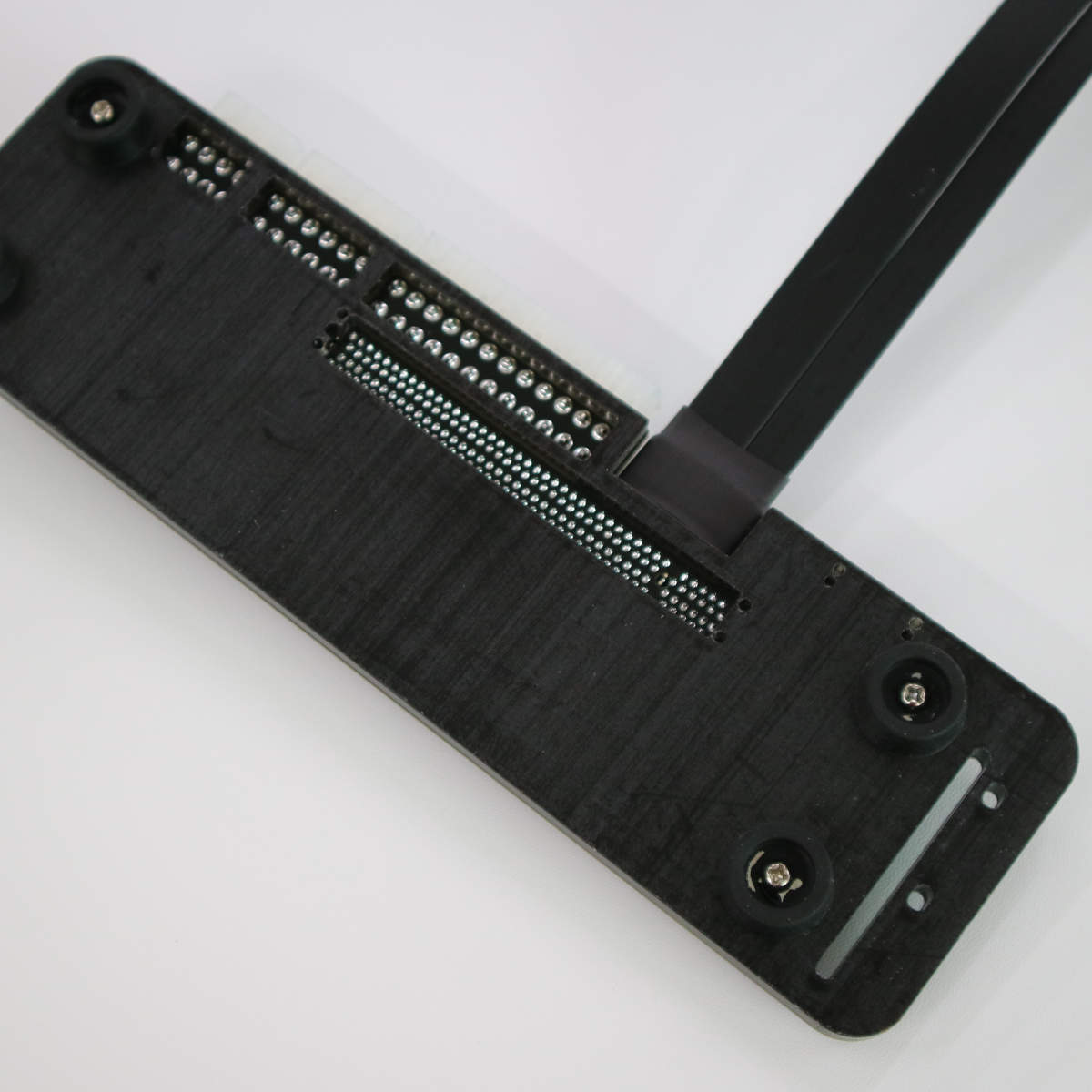

ADT-Link PCIe x16 to M.2 NVMe eGPU Adapter
|R23SG||PCIe x4 edge to PCIe x16 connector|

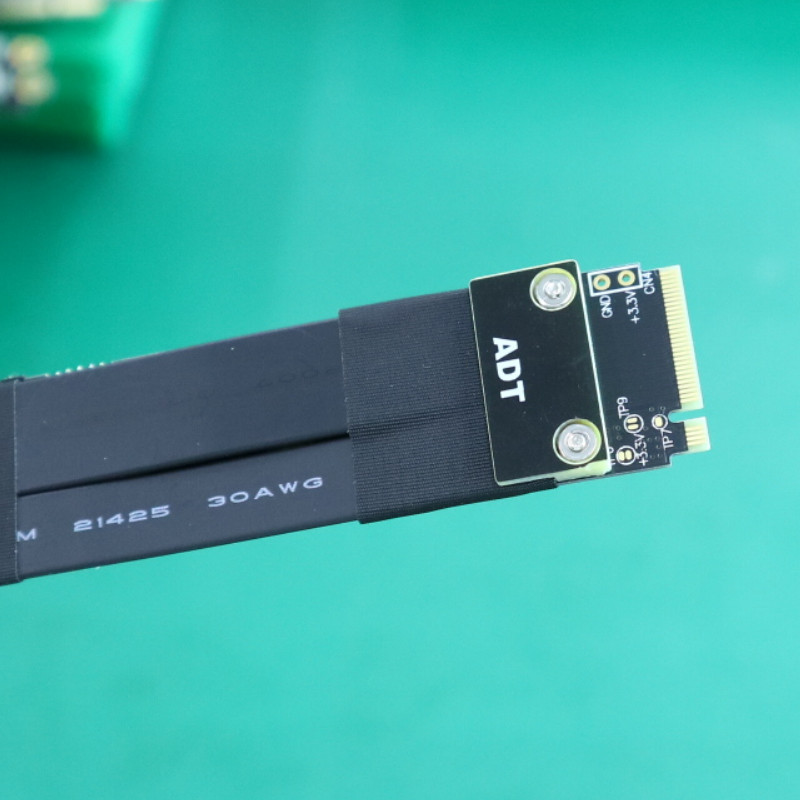

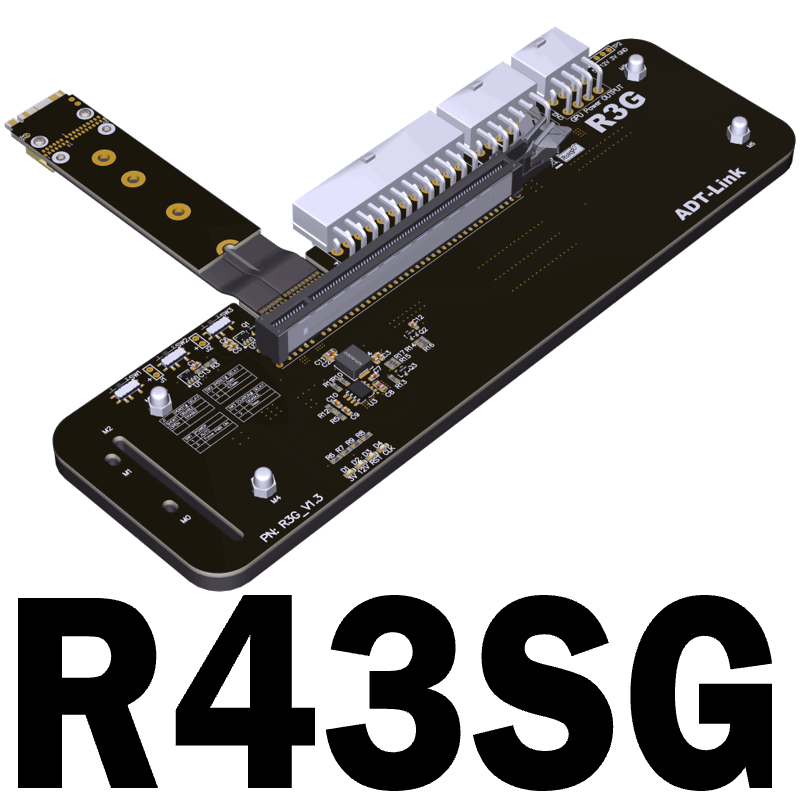

||M.2 NVMe edge to PCIe x16 connector|

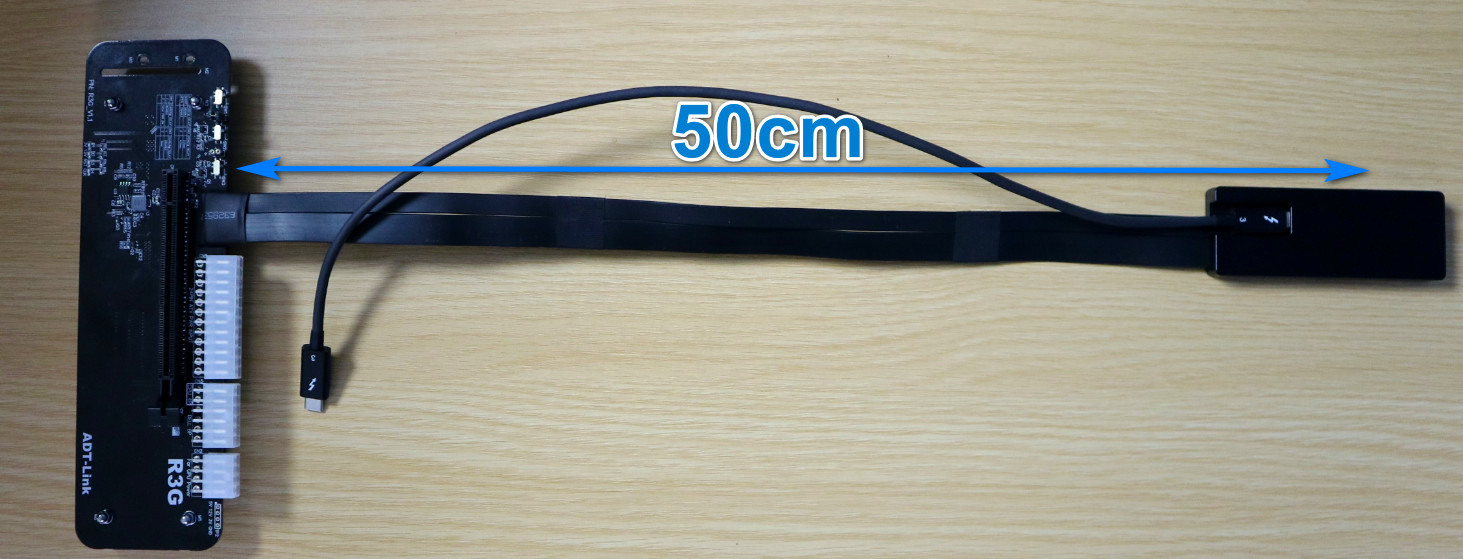

|R43SG-TB3||M.2 NVMe edge to PCIe x16 connector. Add TB3 to M.2 NVMe adapter|

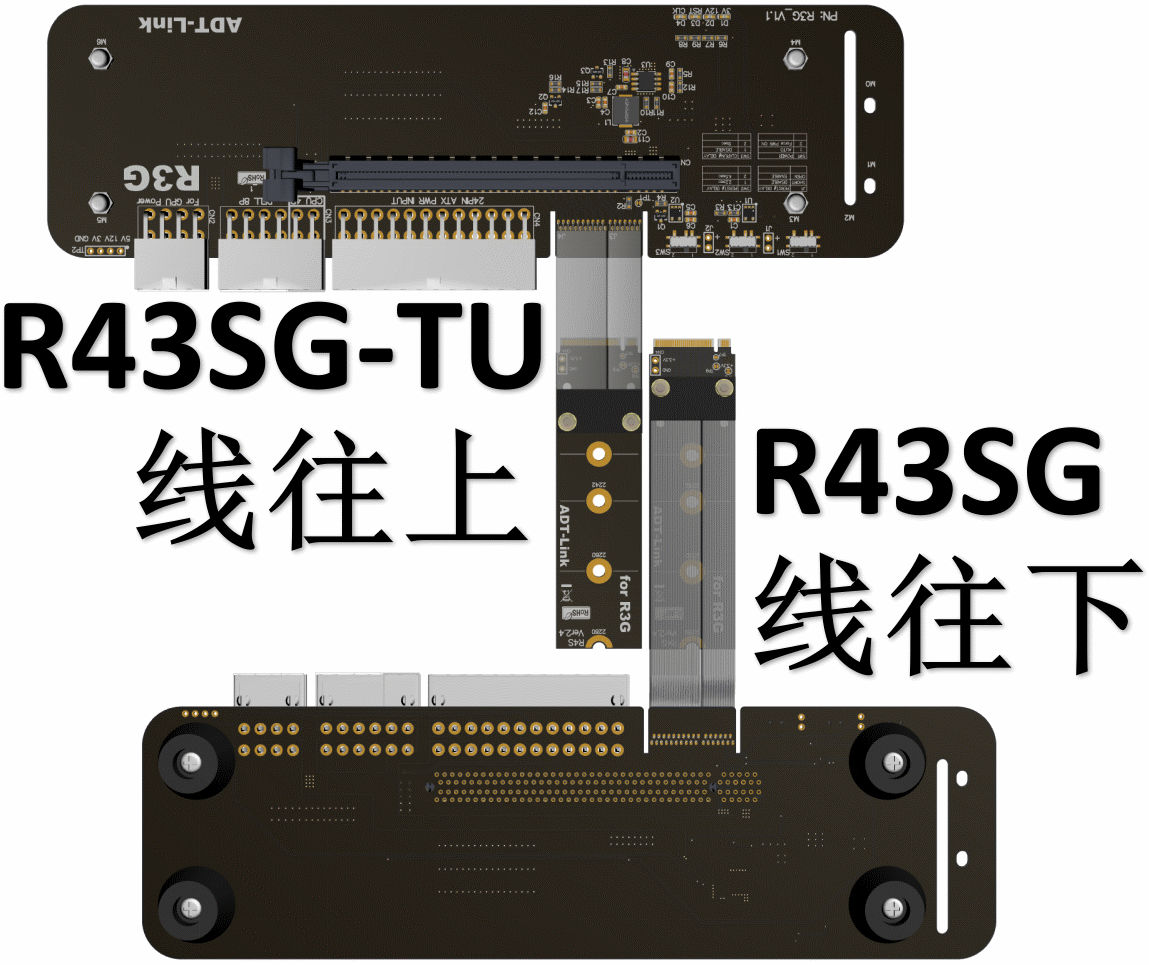

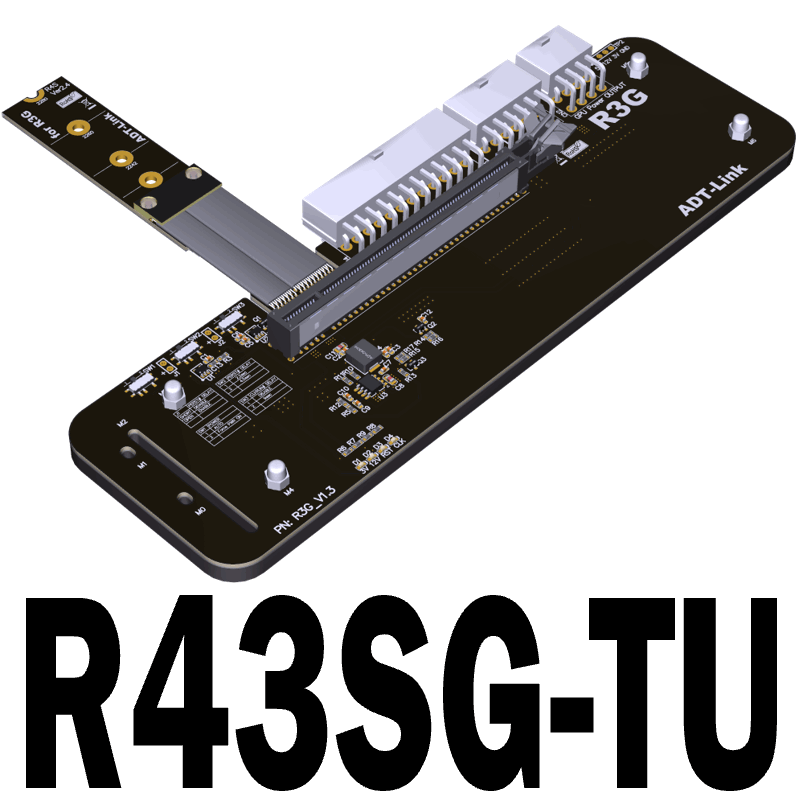

|R43SG-TU||M.2 NVMe edge daughter board cable turn up to PCIe x16 connector|
M.2 WiFi key-A.E. edge to PCIe x16 connector
mPCIe edge to PCIe x16 connector

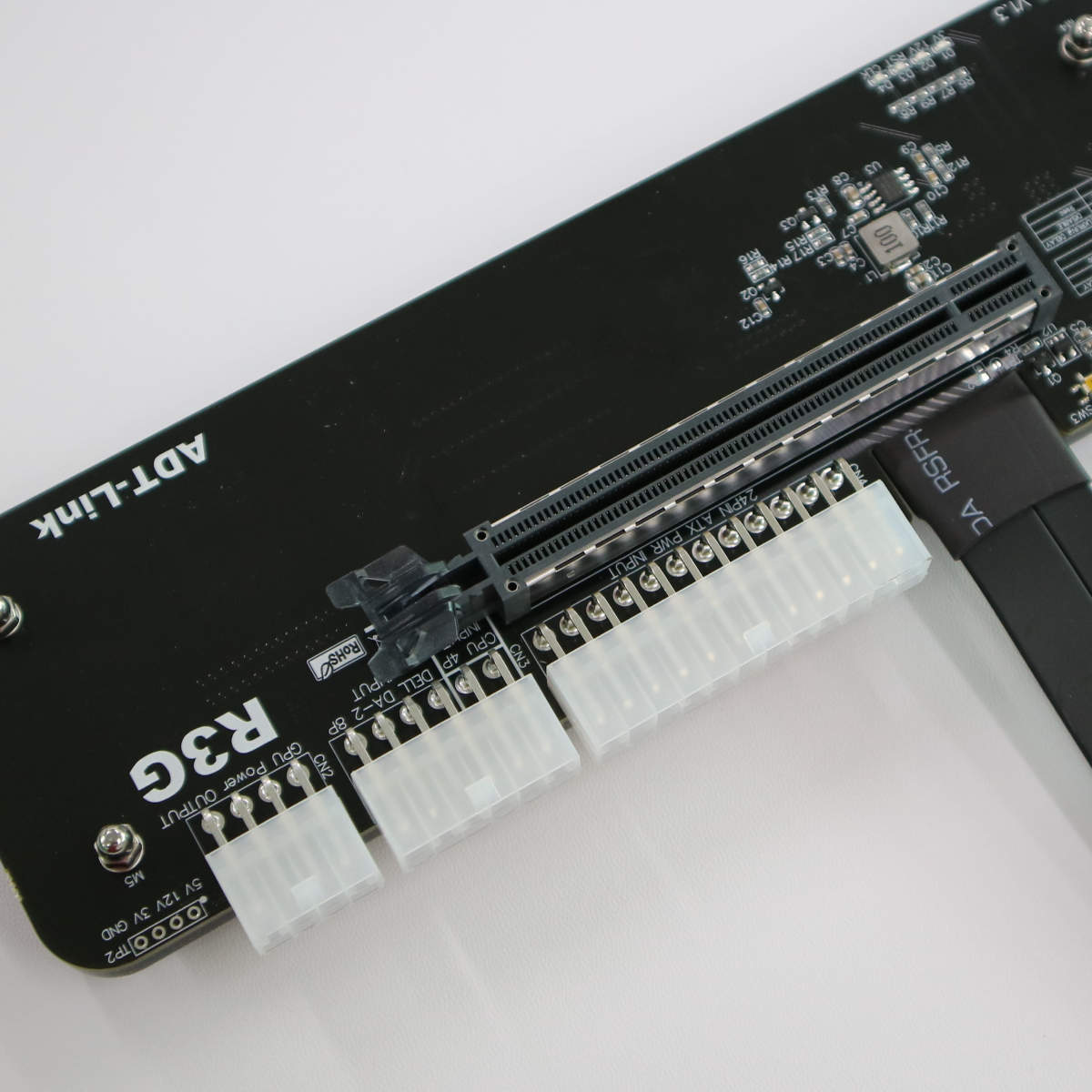

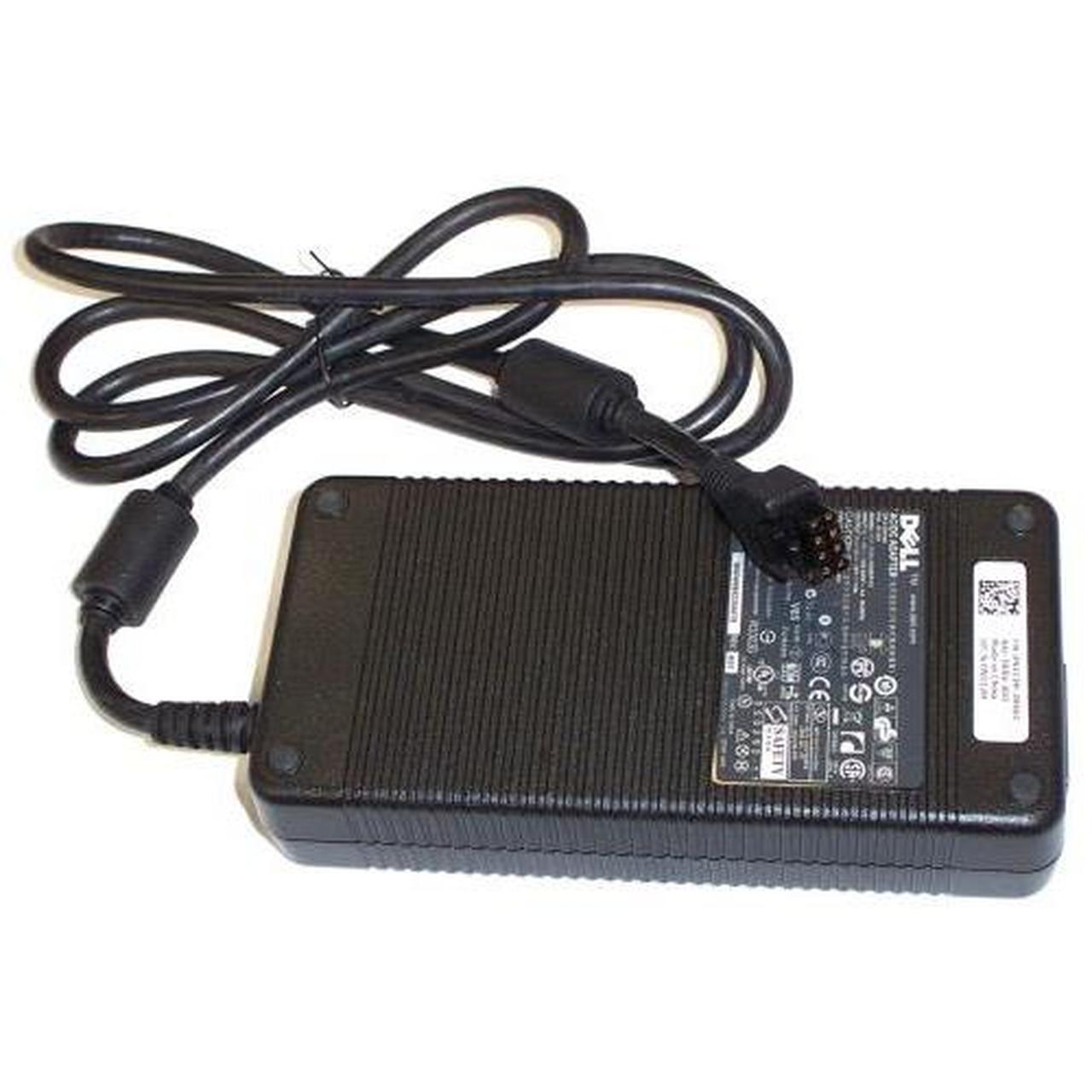

DELL DA-2 8PIN Input. Dual 8P_GPU power output.

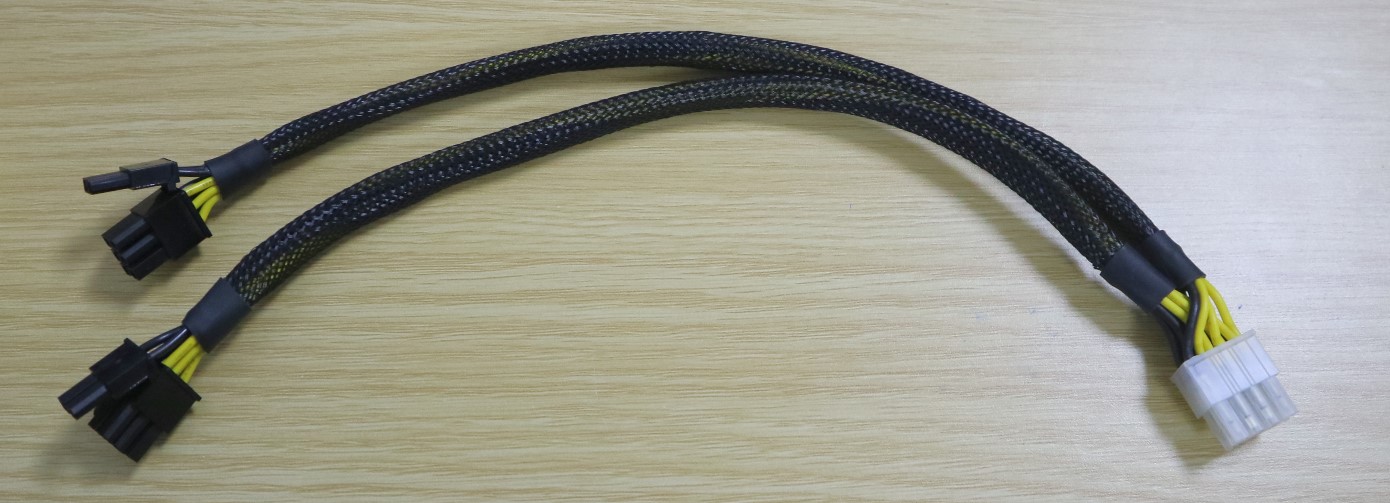

Product accessories, enclosed with the following graphics card power cord below

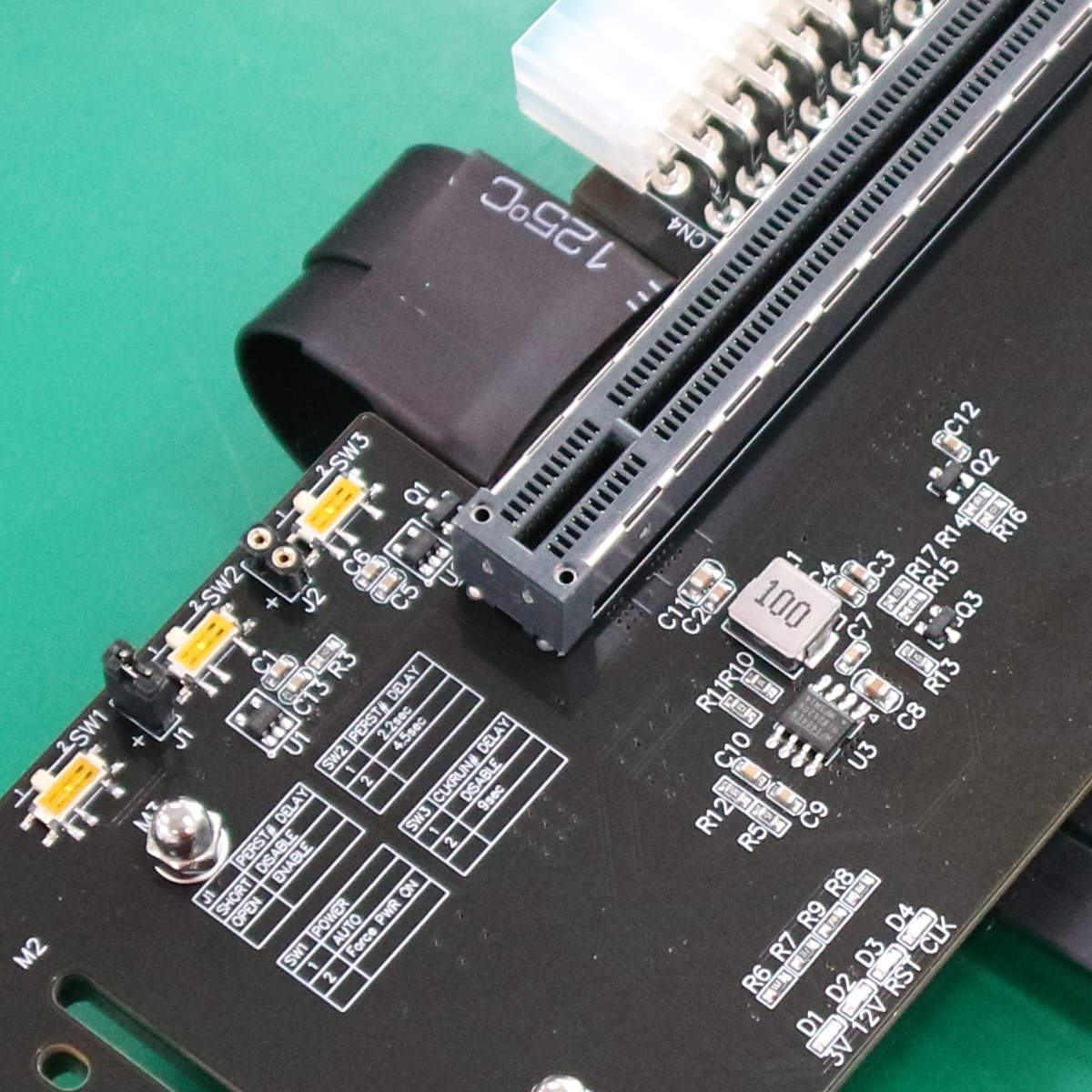

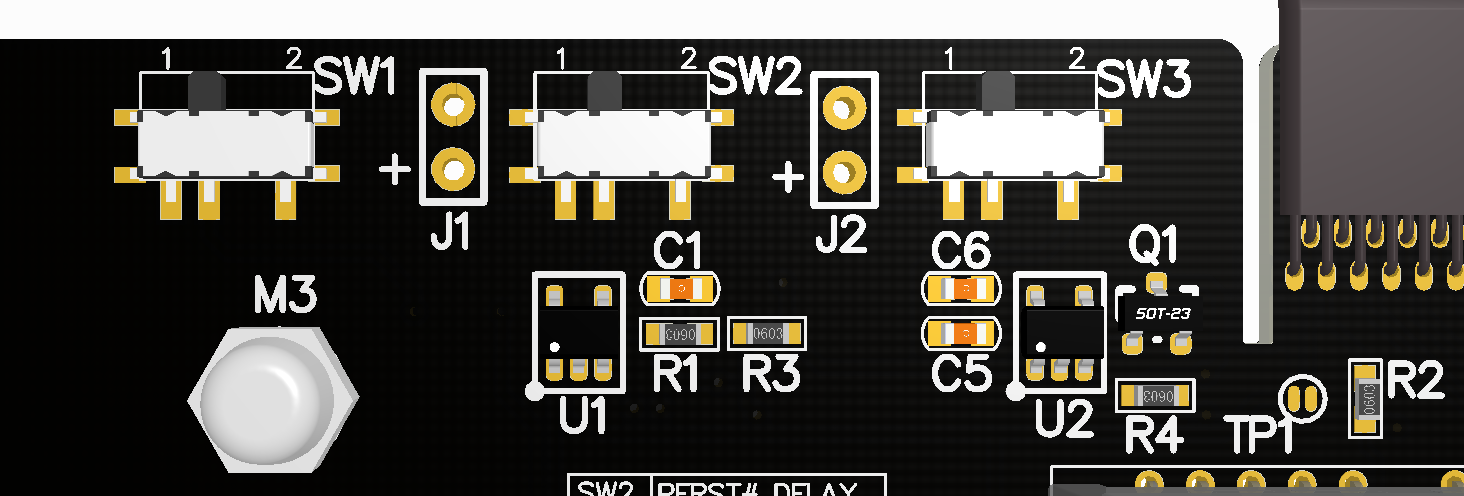

SW1, Power Forced Start Switch, 1 for automatic startup, 2 for forced startup, please cut to 1 for automatic startup.
SW2, PERST # signal delay switch, 1 delay 2.2 seconds, 2 delay 4.5 seconds, with eGPU software, for graphics card compatibility optimization, the current software does not support, please cut to 1
SW3, CLKRUN # signal delay switch, 1 is closed, 2 is delayed for 9 seconds, with eGPU software, for graphics card compatibility optimization, the current software does not support, please cut to 1
J1, PERST # signal delay switch, OPEN to open delay function, SHORT to close delay function, the current software does not support, please insert the jumper cap SHORT.
J2, CLKRUN_Capacitance Delay, currently the software does not support, only for R&D engineers plug in capacitance adjustment delay testing. It takes about 2.2 seconds to insert a 1uF capacitor, 5 seconds to insert a 2.2u capacitor, and so on.

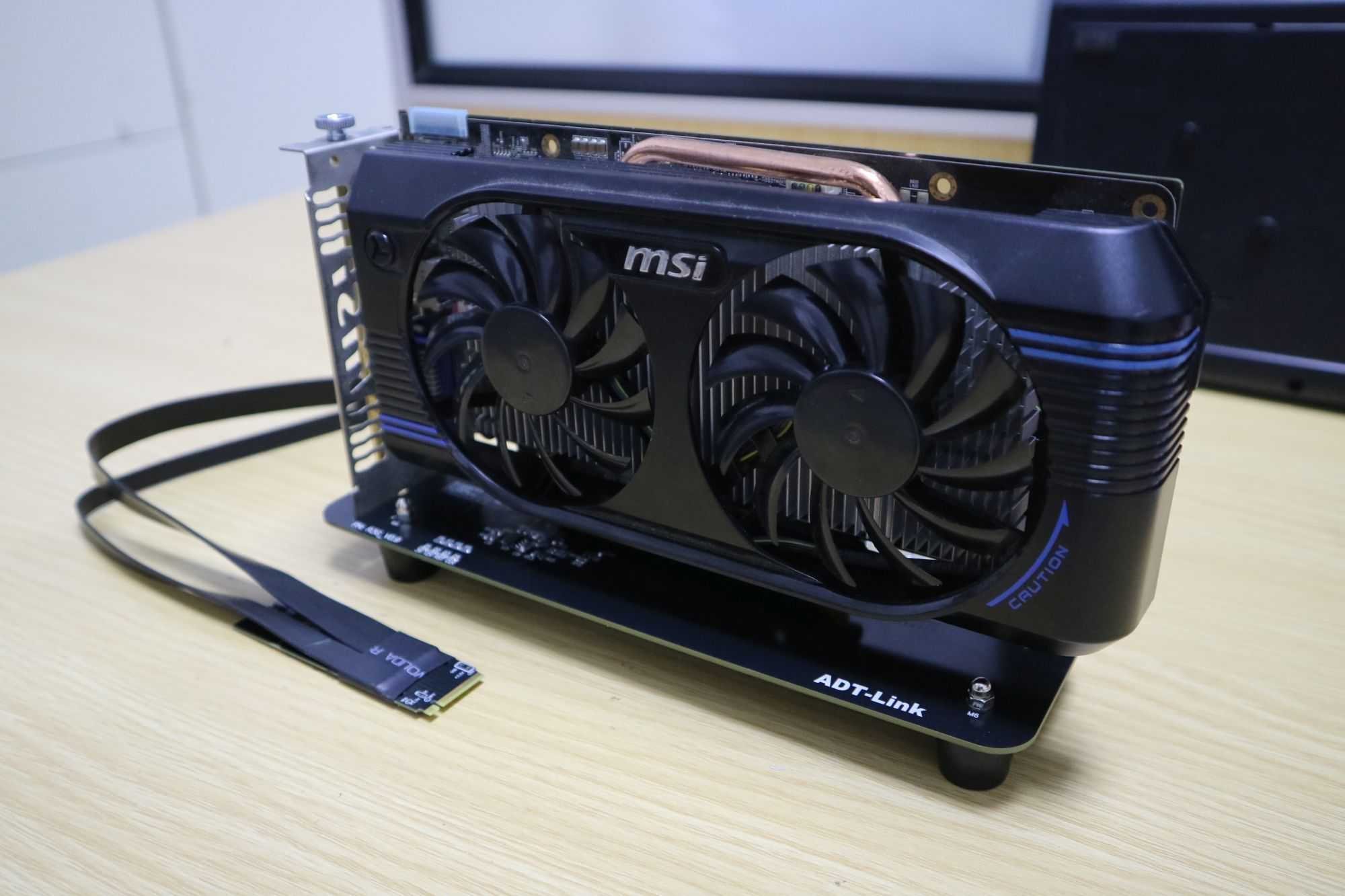

1. Install the hexagonal copper pillar and insert the graphics card into the PCIe x16 slot. The screw is tightened so that the graphics card will not shake or fall off.

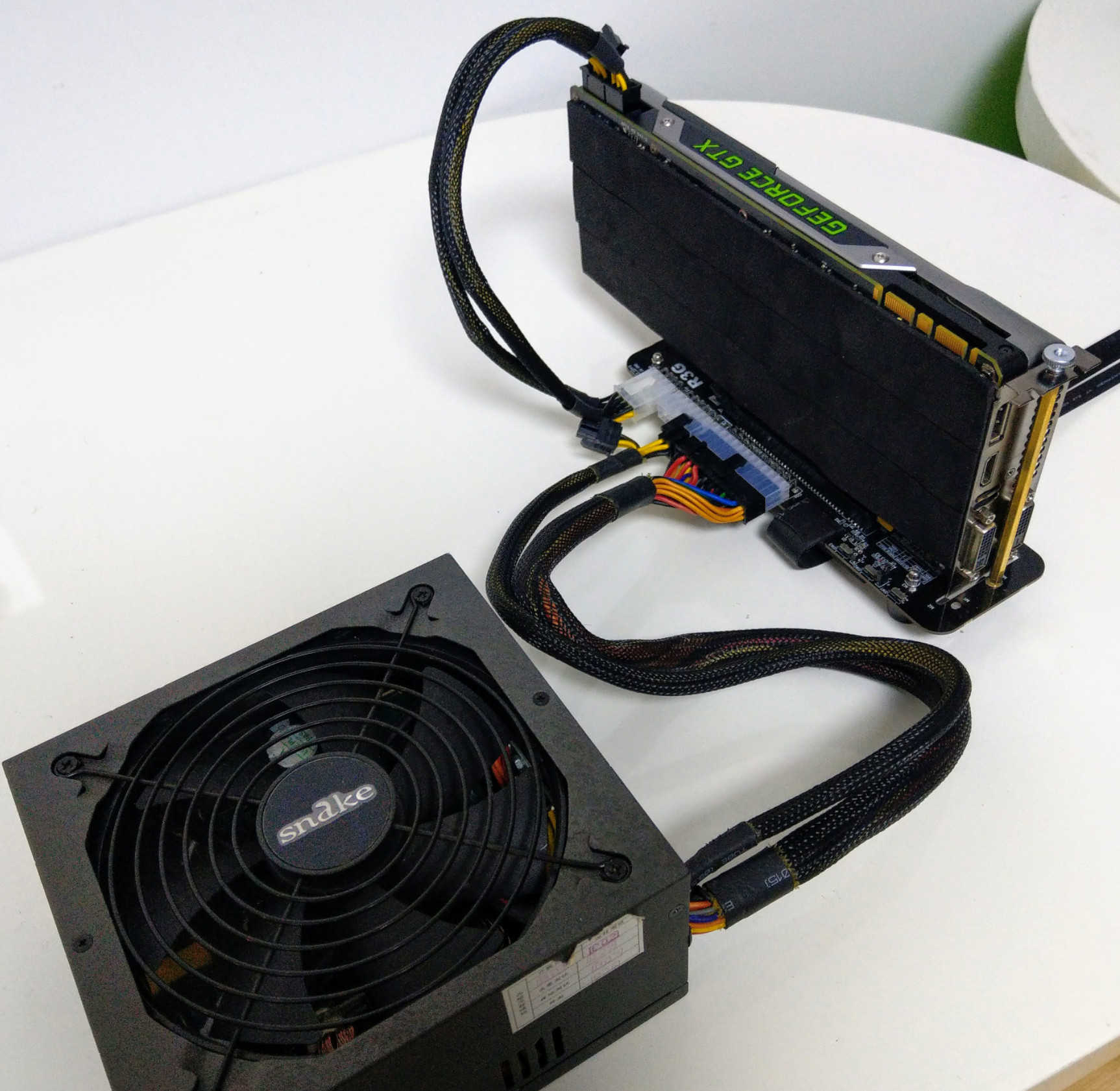

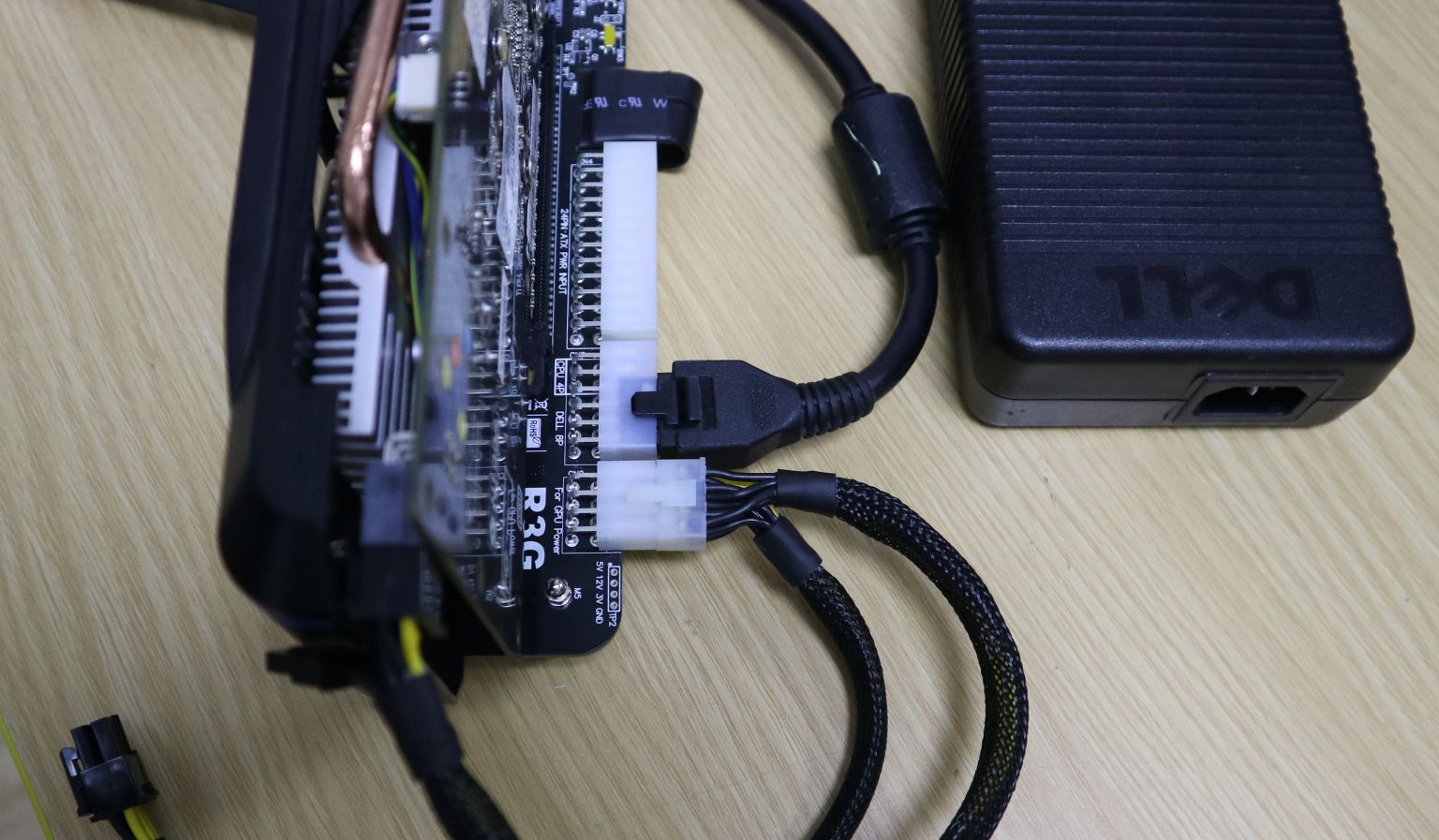

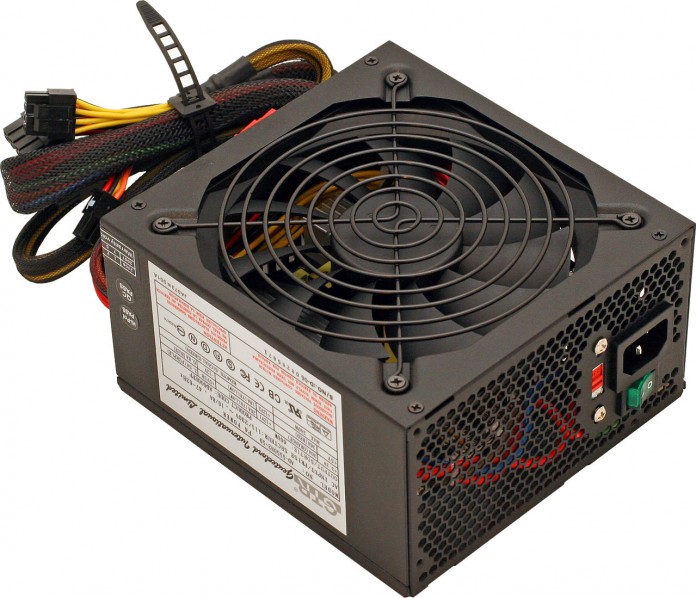

2. Install ATX power supply or DELL power supply, including graphics card power cord should also be connected, after installed, DELL power supply will light orange lights.
3. You can plug in the M.2 cable when the computer is off. After power on, the ATX power supply will automatically start the fan to turn. If you use the DELL power supply, the green light will turn on. At this time, the R3G board will turn on two green lights. The system will recognize the card automatically. Please install the graphics card driver. The installation of the driving process may prompt the computer to restart.
To open 3D PDF files. Please use Adobe Reader DC software.
3D PDF files download http://www.adt.link/Uploads/download/ADT_R3G_3D.zip
3D STEP files download http://www.adt.link/Uploads/download/ADT_R3G_STEP.zip
ADT R3G schematic download http://www.adt.link/download/ADT-Product-R3G-Schematic.html
