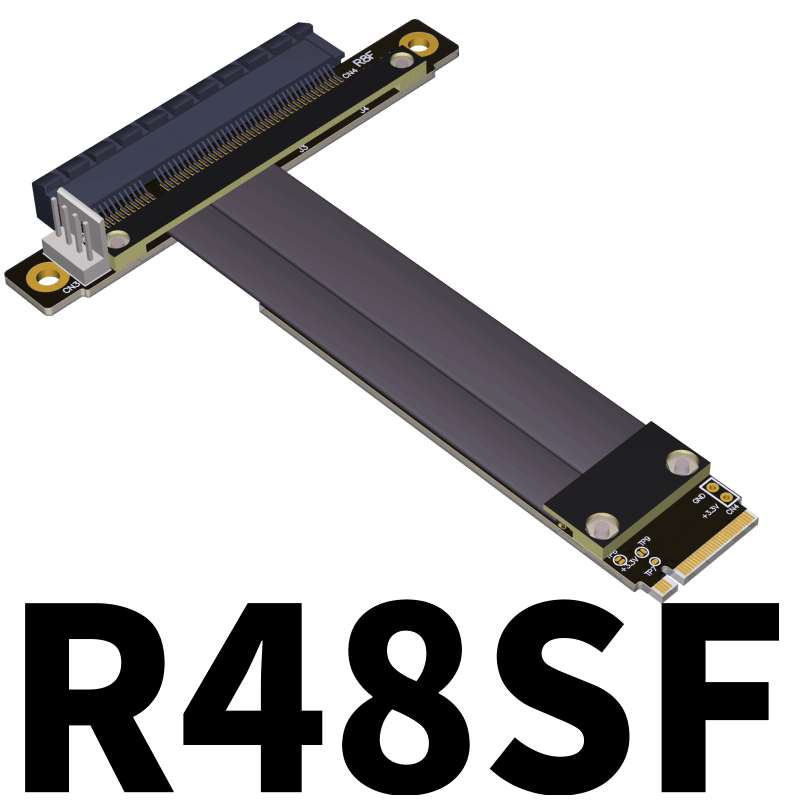

M.2 NVMe to PCIe x8 Extender

  • R48SF
R48SF

R48SF

  • Product ID: R48SF
  • Interface: PCIe x8 / M.2 NVMe
  • Application: Extension
  • Shelf time:2019-01-10 11:07:19
  • Product description: M.2 NVMe to PCIe x8 extender adapter jumper for LAN, RAID SSD cards.
  • INQUIRY

ADT-Link M.2 NVMe to PCI express 3.0 x8 Extension Cable

Brand name: ADT-LINK

Product name: M.2 NVMe to PCIe x8 extension cable

Product model: R48SF

Transfer speed: PCIe3.0 x4 full speed, 32G/bps (Max.)

Wire length: 10 ~ 100 cm, the length can be customized,

Application: PCIe x8  LAN, RAID SSD cards to M.2(ultra SSD, M-key) extension


Cable length Description:

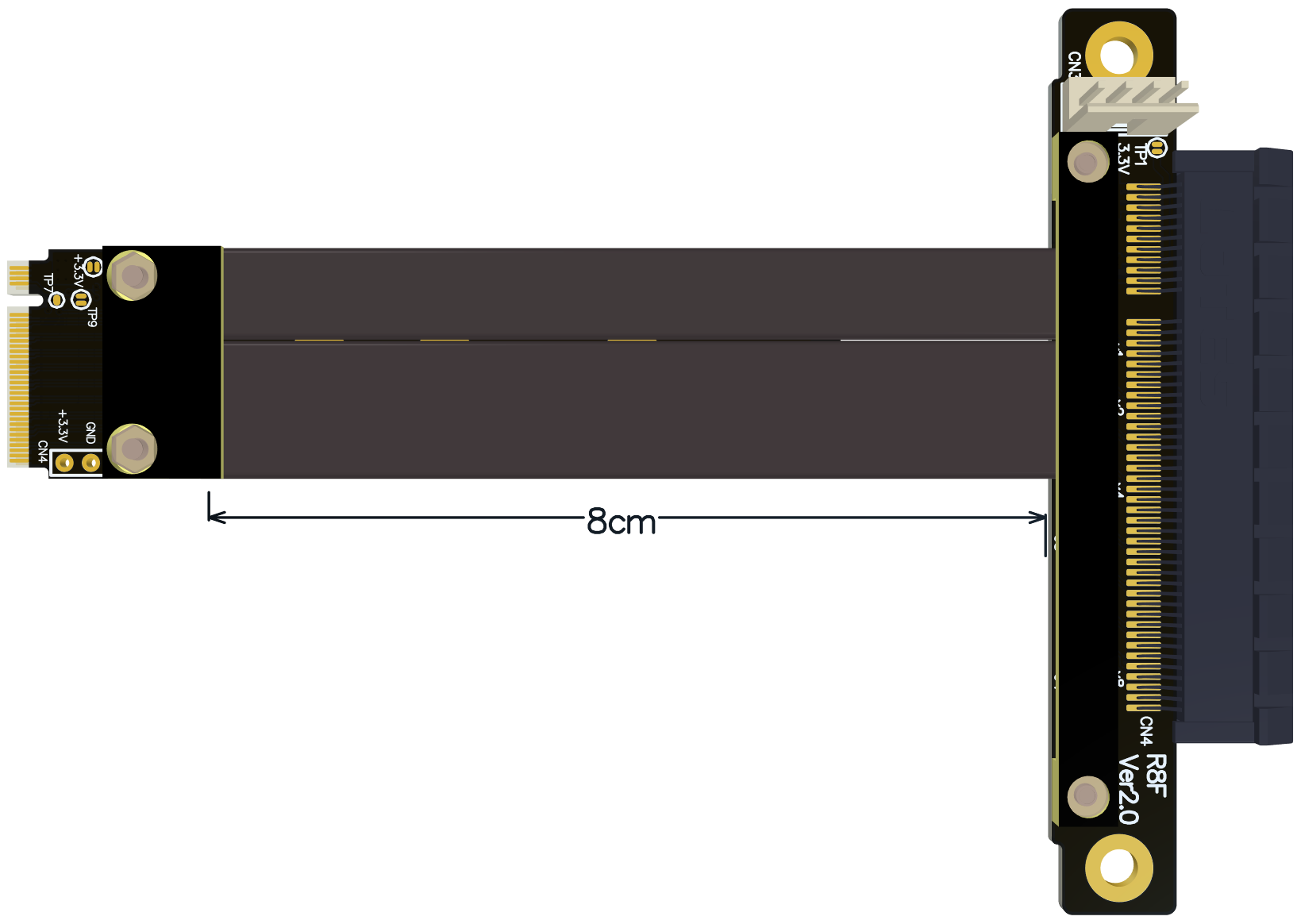

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 8cm blue arrow in the figure below.

R48SF Cable length

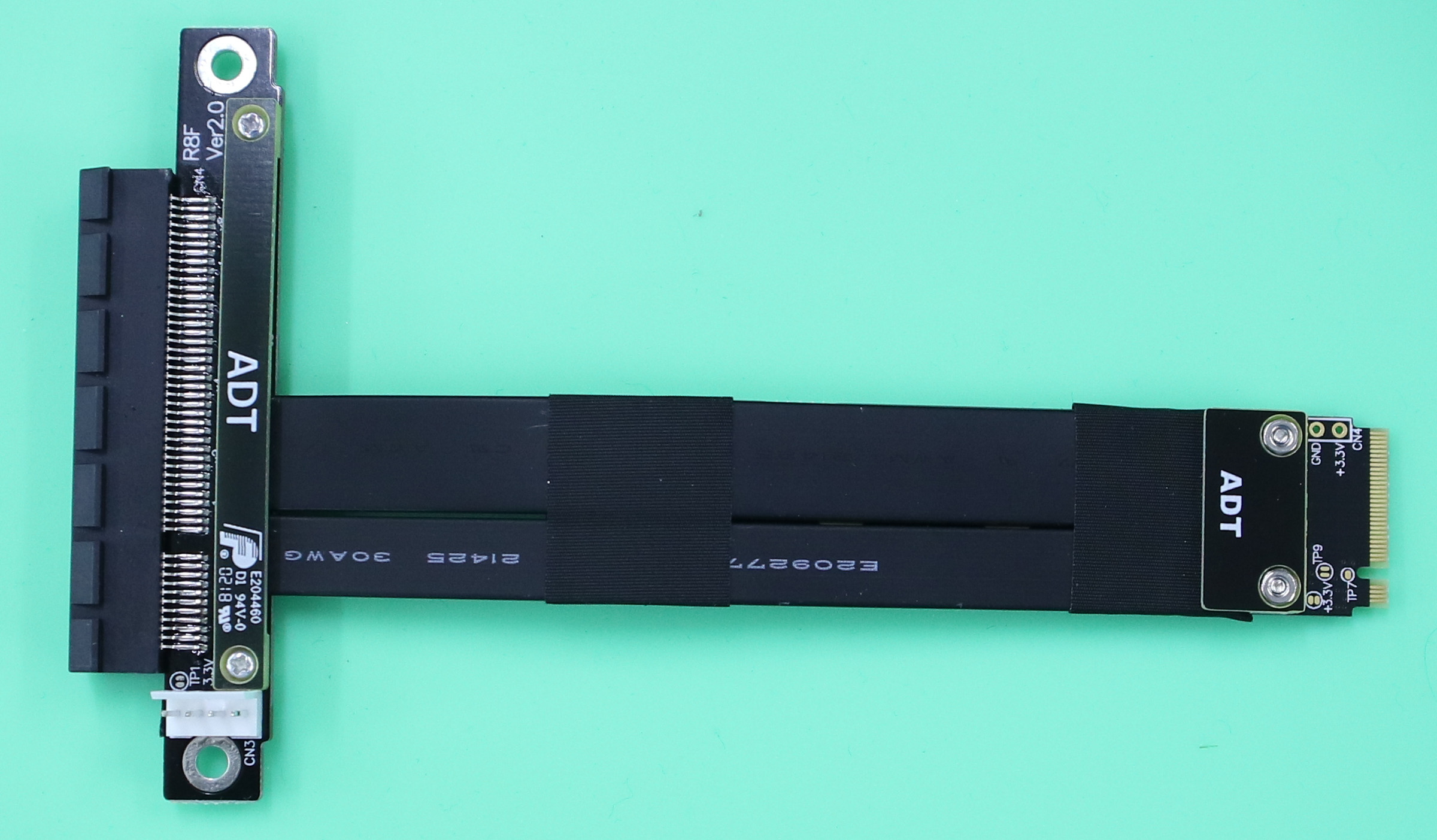

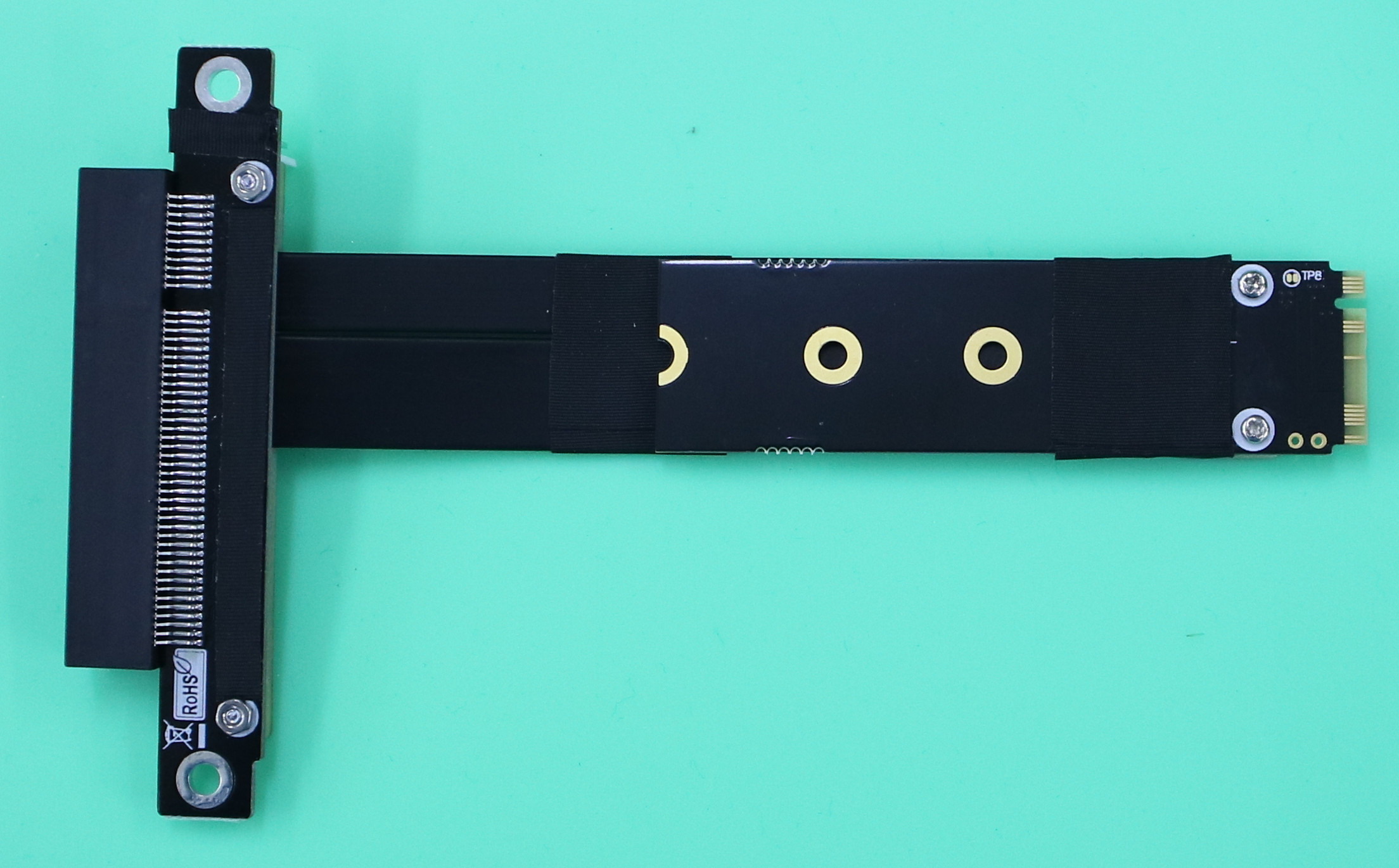

Photo:



Download:

To open 3D PDF files. Please use Adobe Reader DC software.

3D model STEP & PDF files download http://www.adt.link/Uploads/download/ADT_R48_3D.zip


WebShop:

http://www.adt.link/product/R48SF-Shop.html
