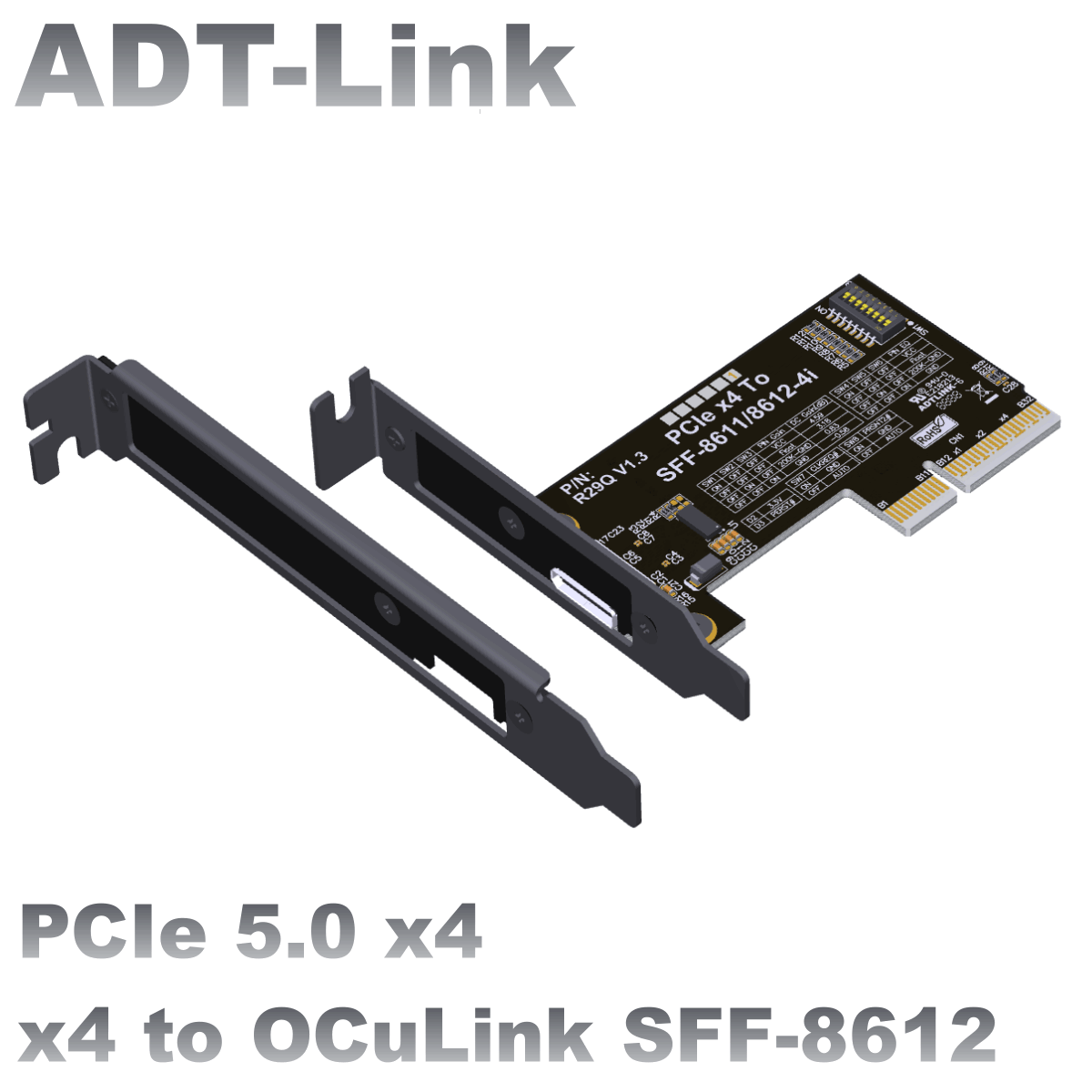

ADT-Link PCIe 5.0 x4 to OCuLink SFF-8612 adapter

Brand name: ADT-LINK

Product name: PCIe 5.0 x4 to OCuLink SFF-8612 adapter with half height and full height brackets

Product model: R29Q

Transfer speed: 128Gb/Sec (PCIe gen5 x4 Max.)

Application:OCuLink graphics card external to PCIe x4/x8/x16 interface

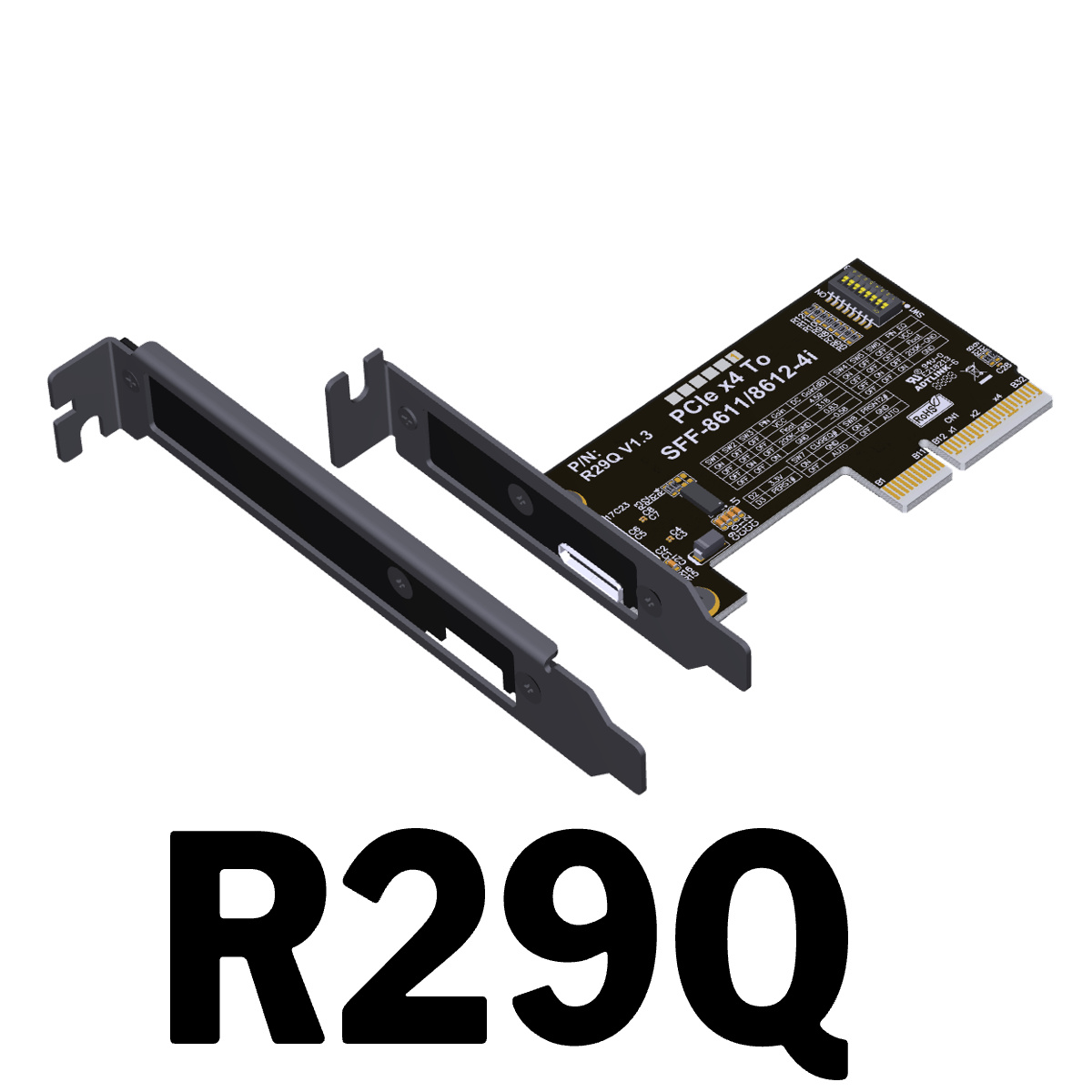

ADT R29Q Part-Number Description:

Dimension data of the bracket

Product advantages:
1. Support PCIe 5.0 x4, compatible with gen4/gen3.
2. Equipped with full height and half height brackets, widely used in various environments.

3. Circuit protection design to prevent the current generated by external graphics cards from flowing to the motherboard, thus protecting the motherboard
4. Gold finger gold plating process, with a gold thickness of up to 10U, in compliance with IPC Level 1 international standards
5. High frequency, low resistance, high temperature, and oxygen resistant PCB board, with no deformation, yellow crystal, semi transparent color, no whitening, and no blackening

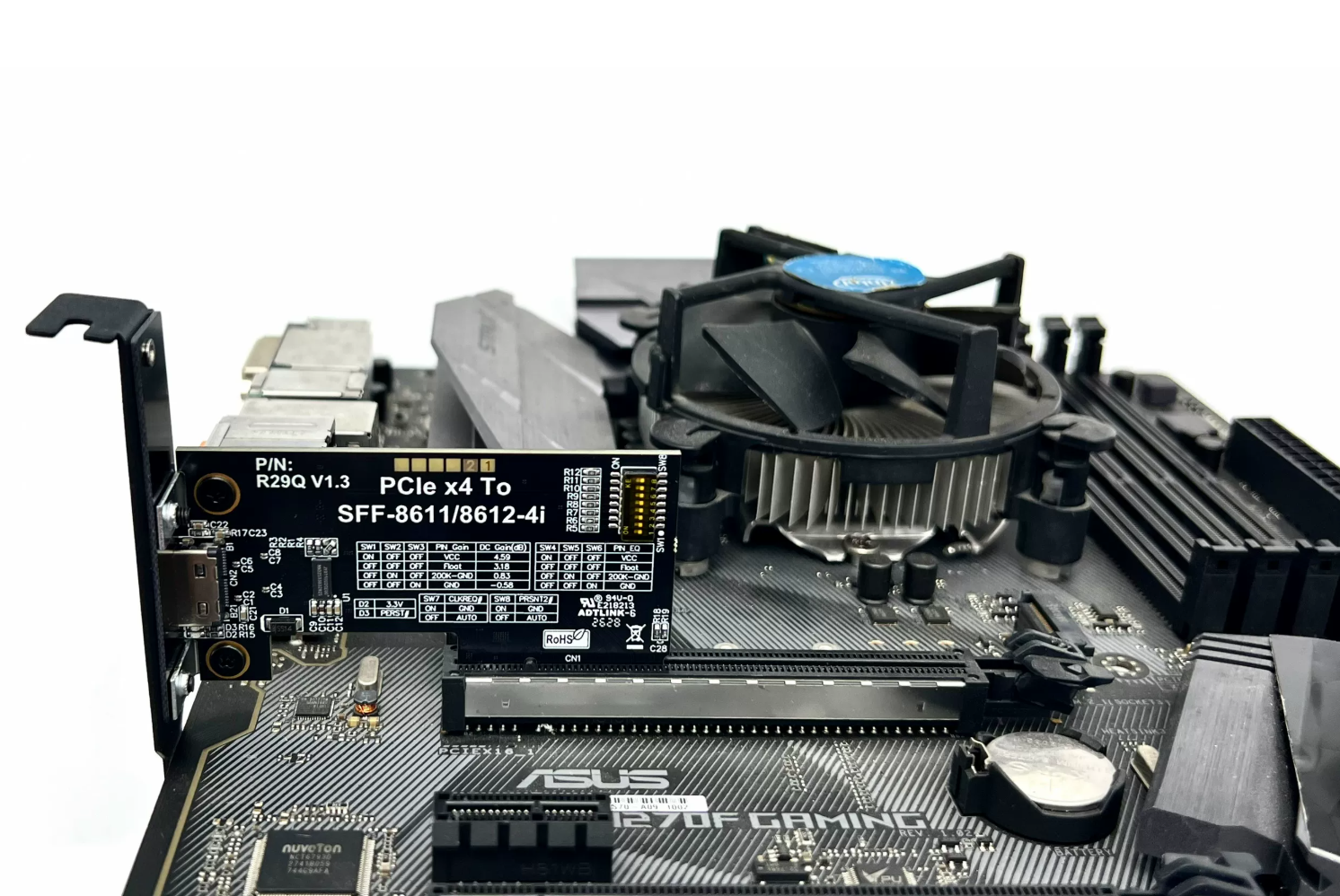

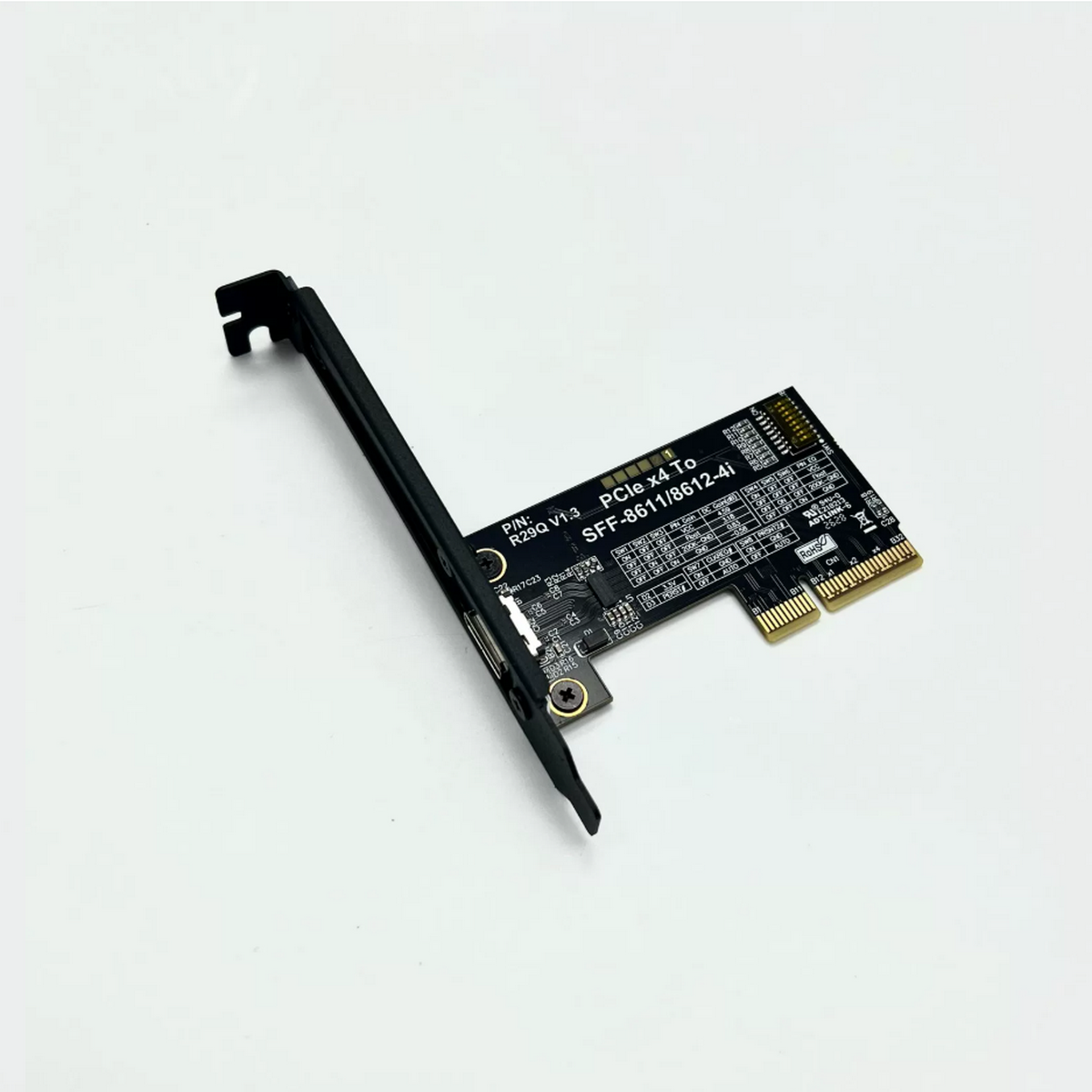

Photos:

Q&A:

Introduction to R29Q indicator lights

R29Q has two indicator lights: D2 light is the power indicator light, which is normally on; The D3 light is a RESET light, which normally only flashes once when turned on.

Test data:

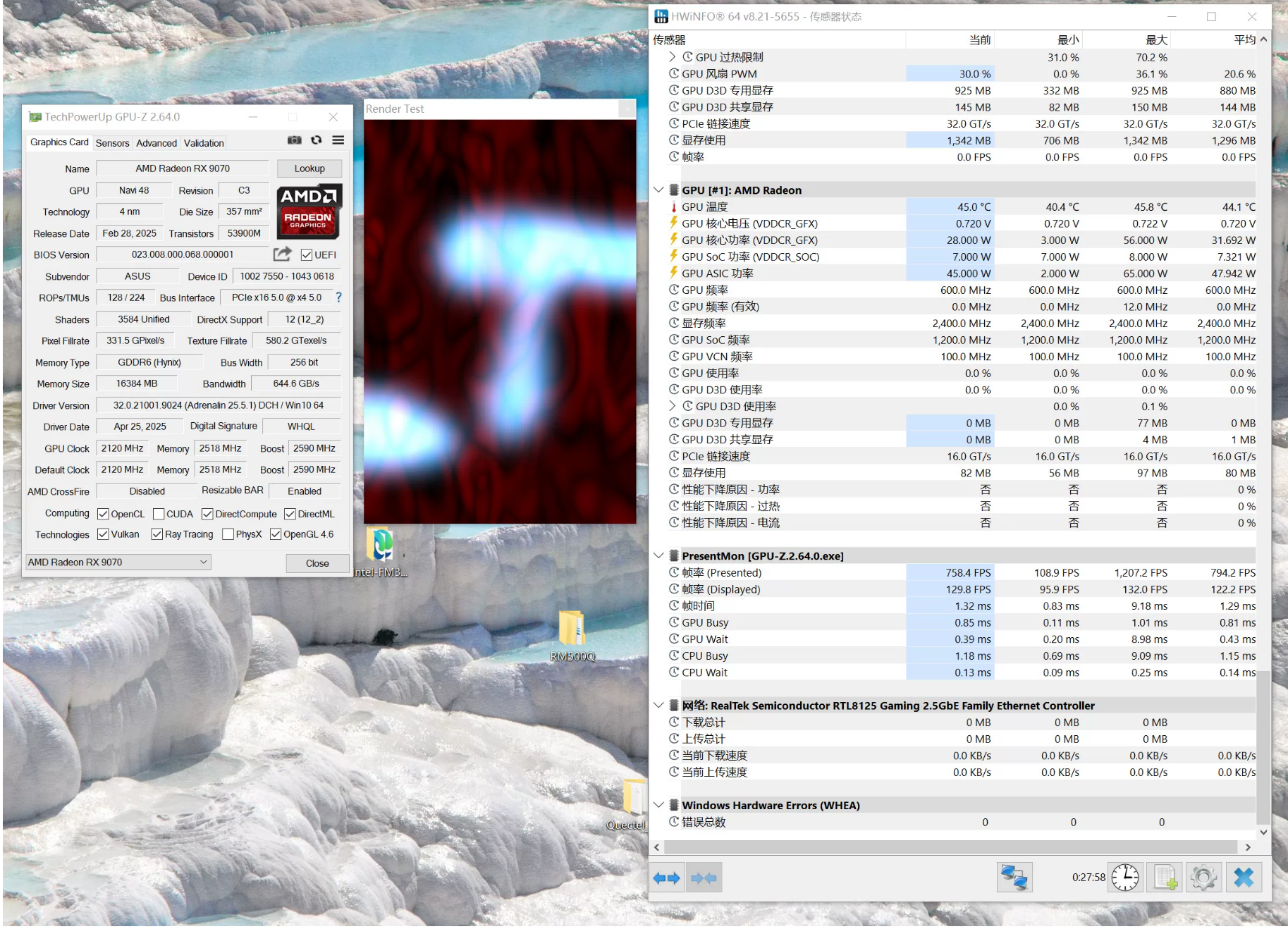

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D model files download https://www.adt.link/download/ADT_R29A_3D.zip

FTP: Hong Kong

3D model files download https://www.adtlink.cn/download/ADT_R29A_3D.zip
