ADT-Link Oculink to M.2 NVMe Adapter

Brand name: ADT-LINK

Product name: Oculink to M.2 NVMe adapter

Product model: F4Q

Transfer speed: 128Gb/Sec (PCIe gen5 x4 Max.)

Weight: 20g

Dimension: support M.2 NGFF key M(2230) 22mm x 80mm NVMe card

Application: Oculink to M.2 NVMe adapter extesnion riser card

Part-Number Description:

Product advantages:
1. The product is made of high-quality materials, UL certified PCB board, PCB workmanship is precise, copper thickness is thickened to 1oz, no invariance, color is yellow crystal, semi-transparent, not white or black.
2. Support PCIe 5.0 x4, compatible with Gen4/gen3.

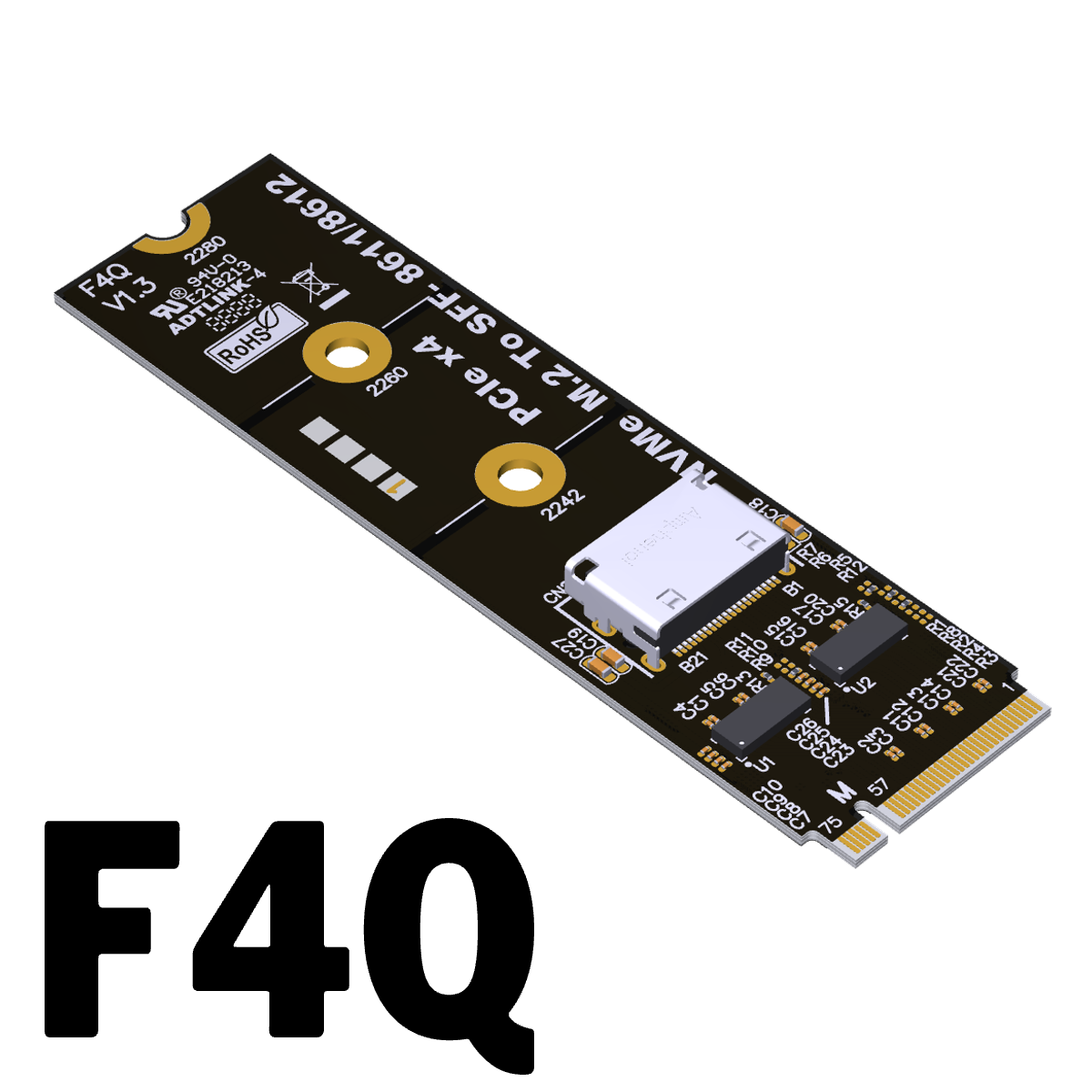

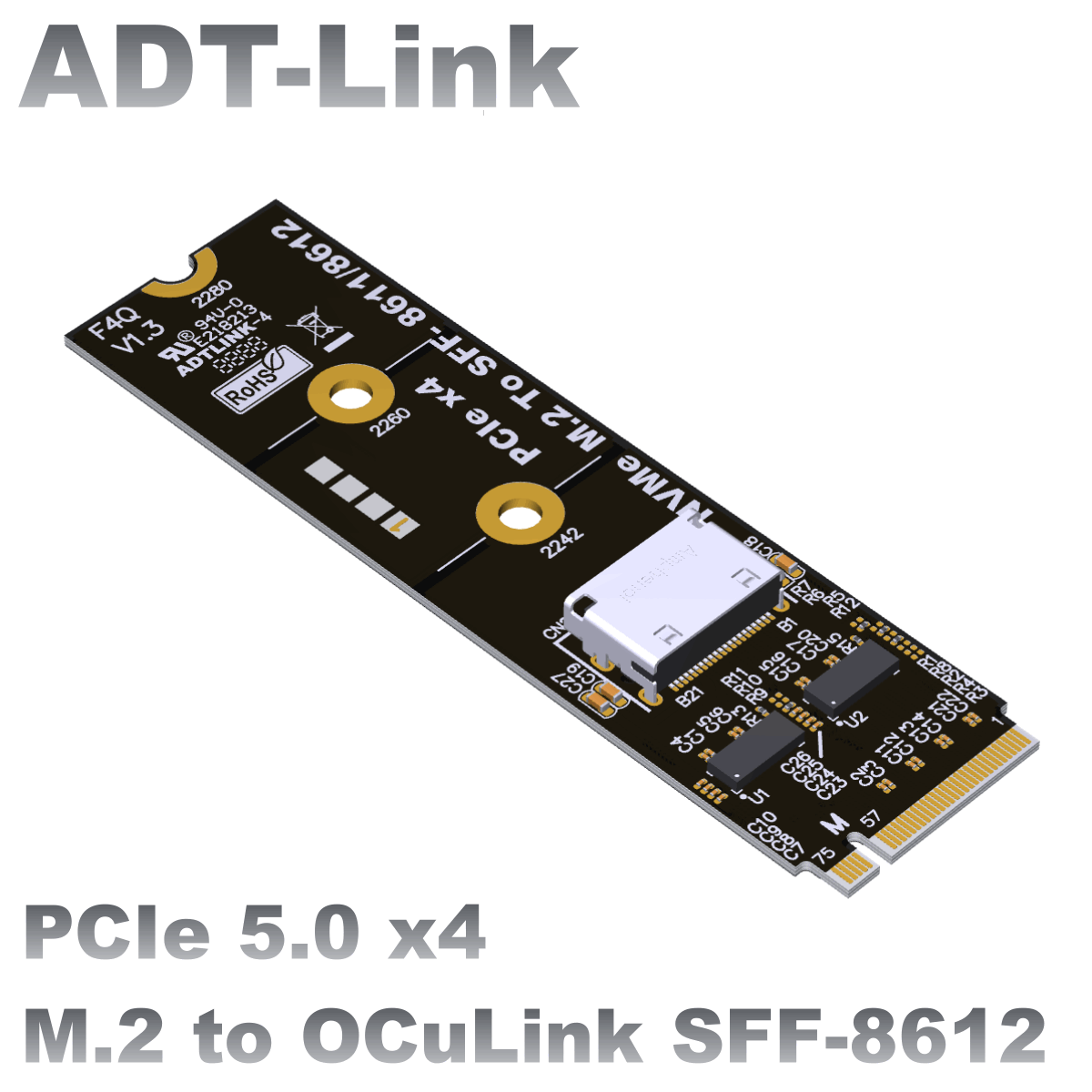

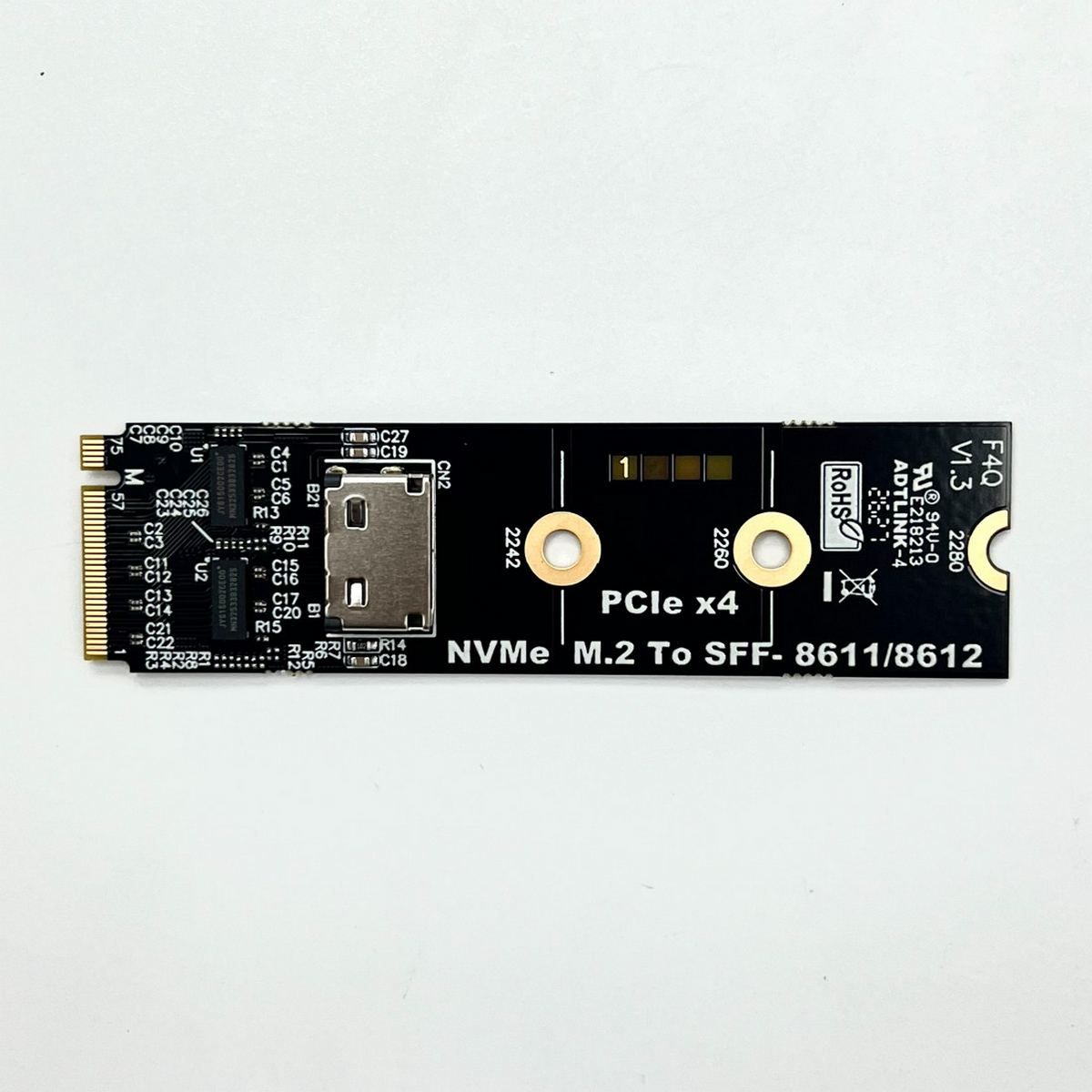

Photo:

Can F4Q support PCIe 5.0?
Our laboratory has tested that it can reach PCIe5.0, and the measured read and write speeds are as follows:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D model files download http://www.adt.link/download/ADT_F4Q_3D.zip

FTP: Hong Kong

3D model files download http://www.adtlink.cn/download/ADT_F4Q_3D.zip
