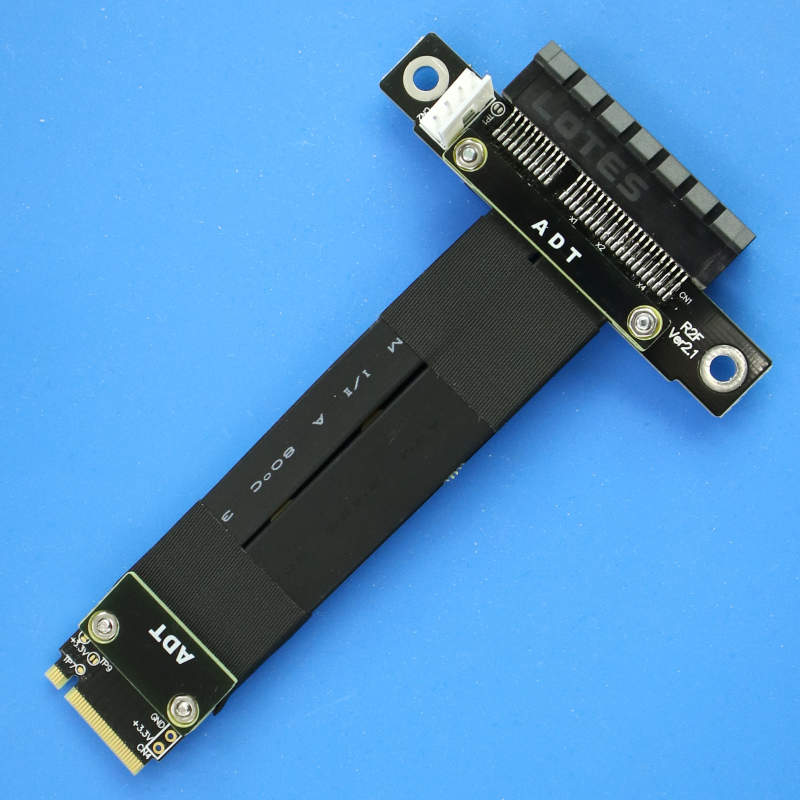

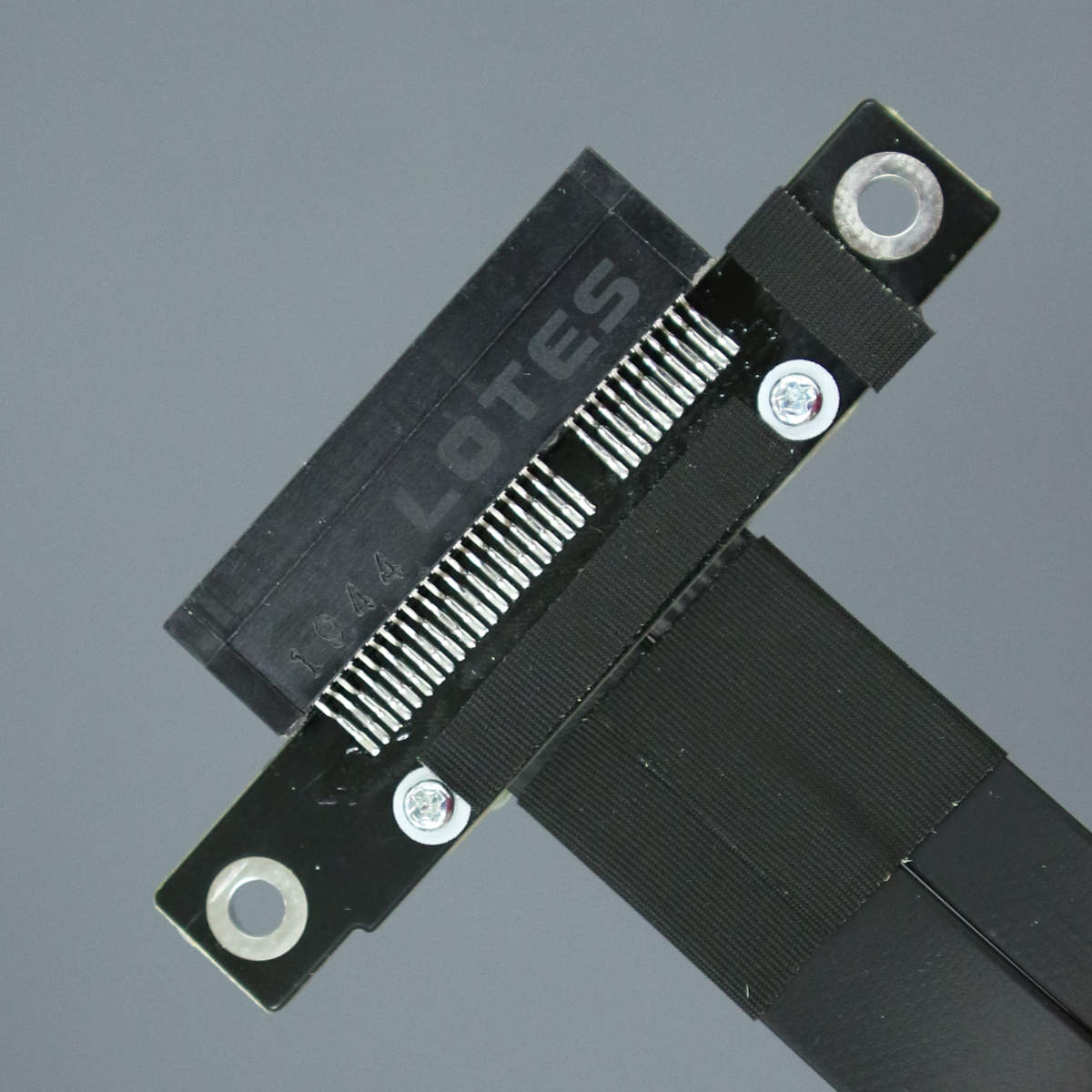

ADT-Link M.2 NVMe to PCI-Express x4 Extension Cable

Brand name: ADT-LINK

Product name:M.2 NVMe to PCIe x4 extension cable

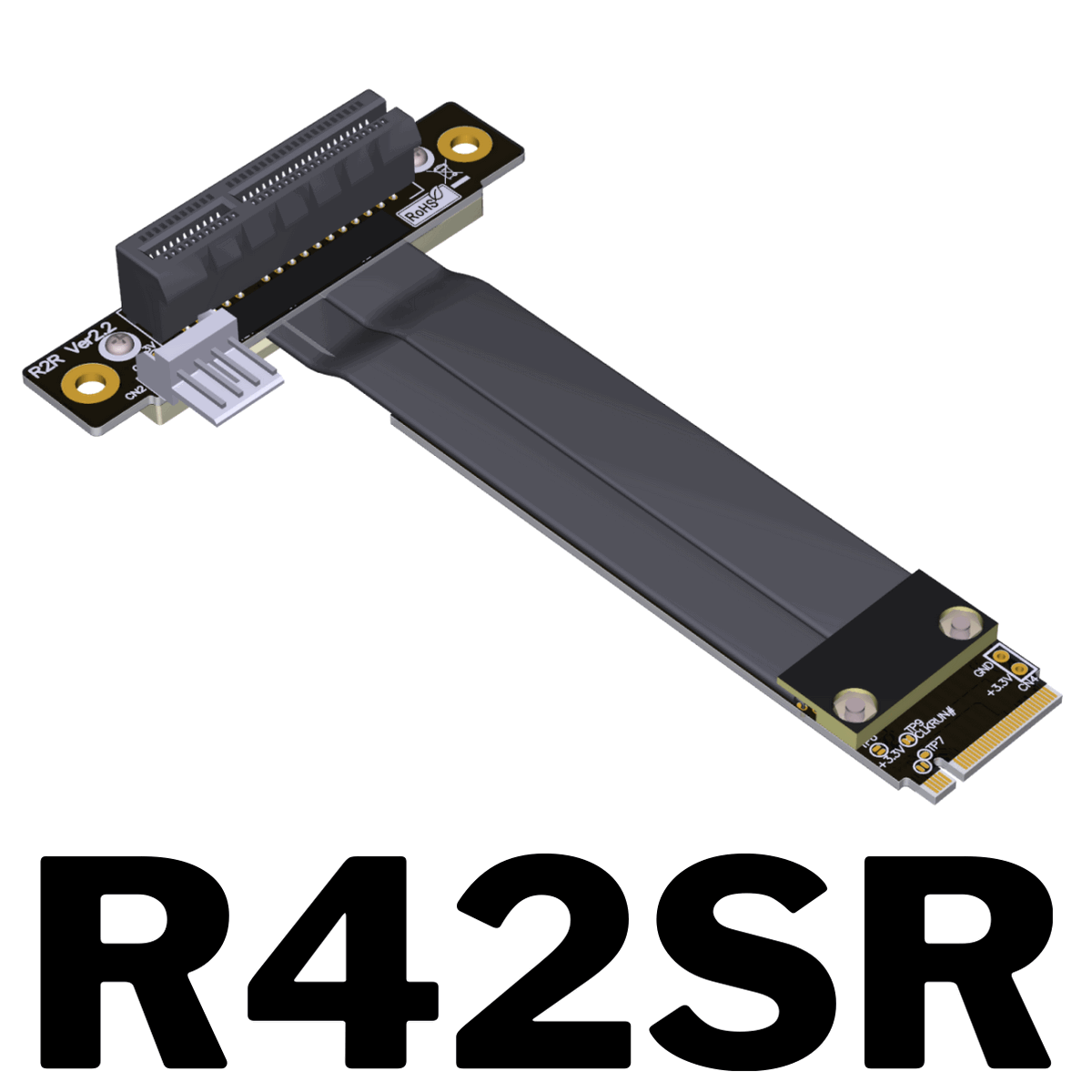

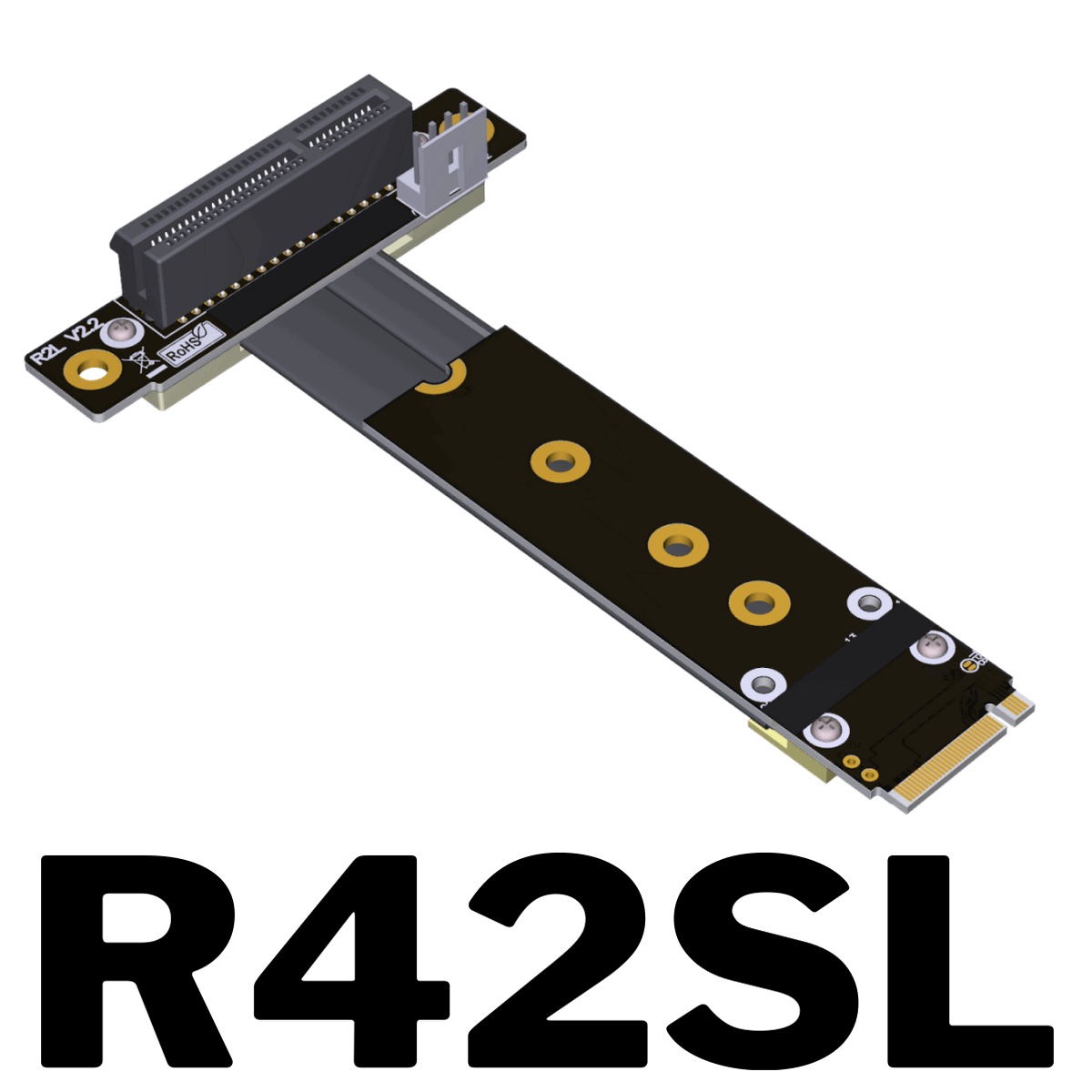

Product model:R42SF,R42SL,R42SR

Transferspeed:PCIe3.0 x4 full speed, gen3, 32G/bps (Max.)

Wire length:3 ~ 100 cm, the length can be customized

Application: PCIe x4  SSD RAID, LAN, Capture cards to M.2(ultra SSD, M-key)extension

Cable length Description:

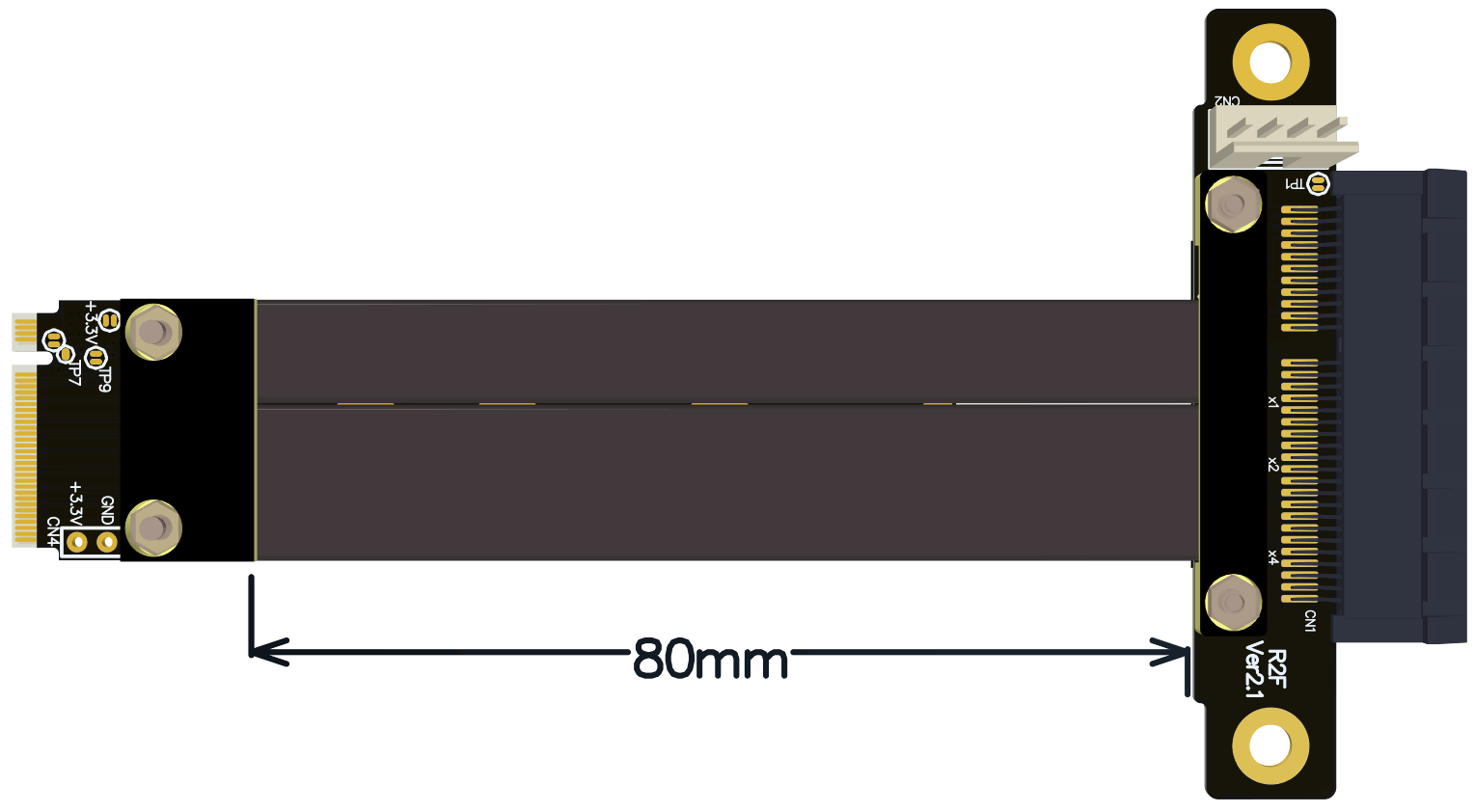

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 8cm arrow in the figure below.

Accessories description:

A SATA power adapter cable is included with the product, and it must be connected to have 12V power supply.

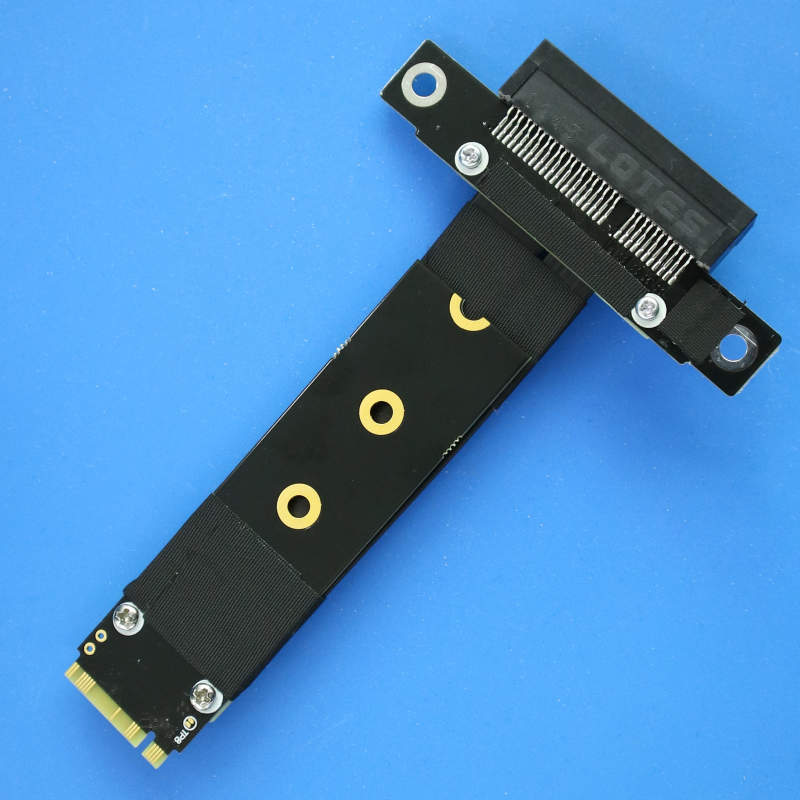

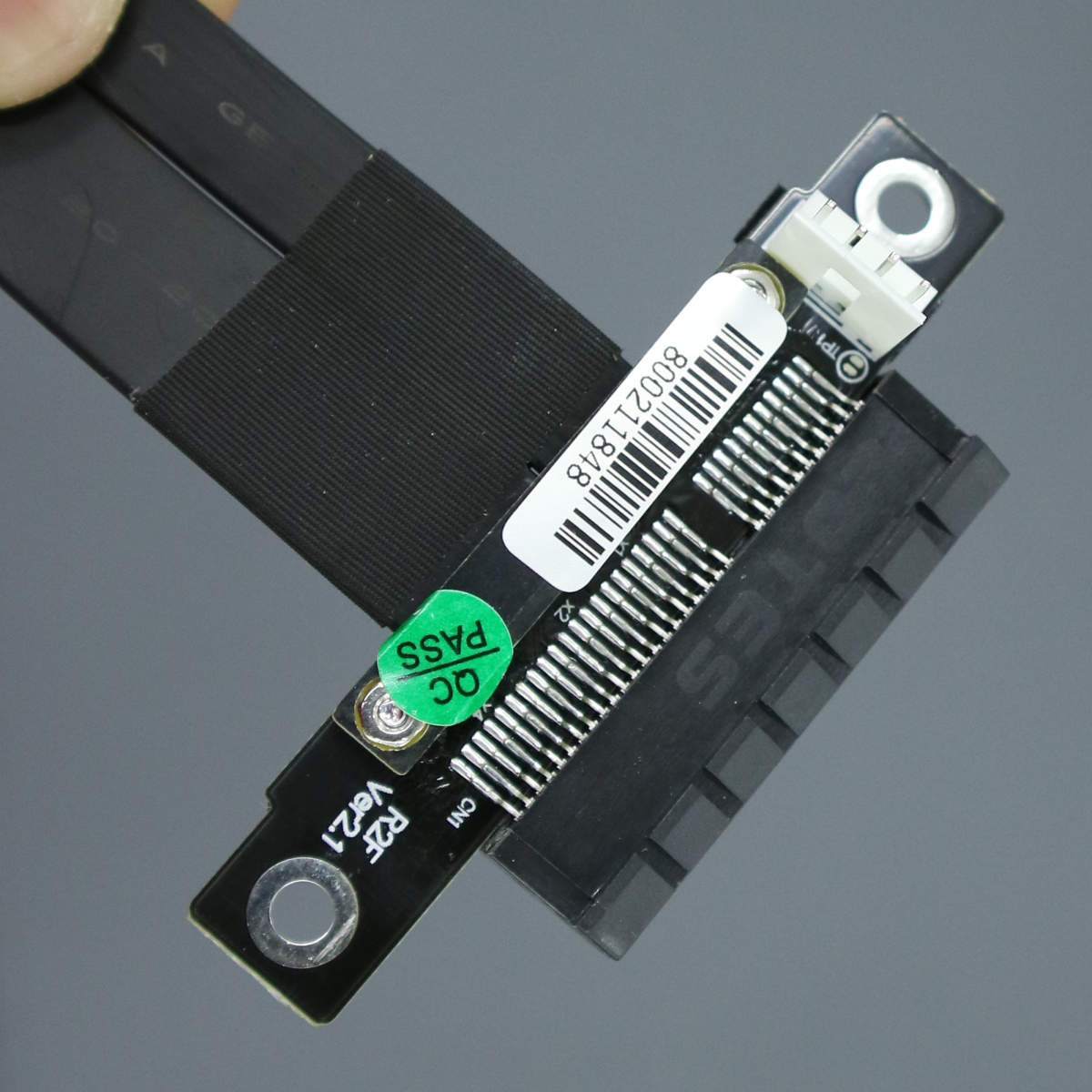

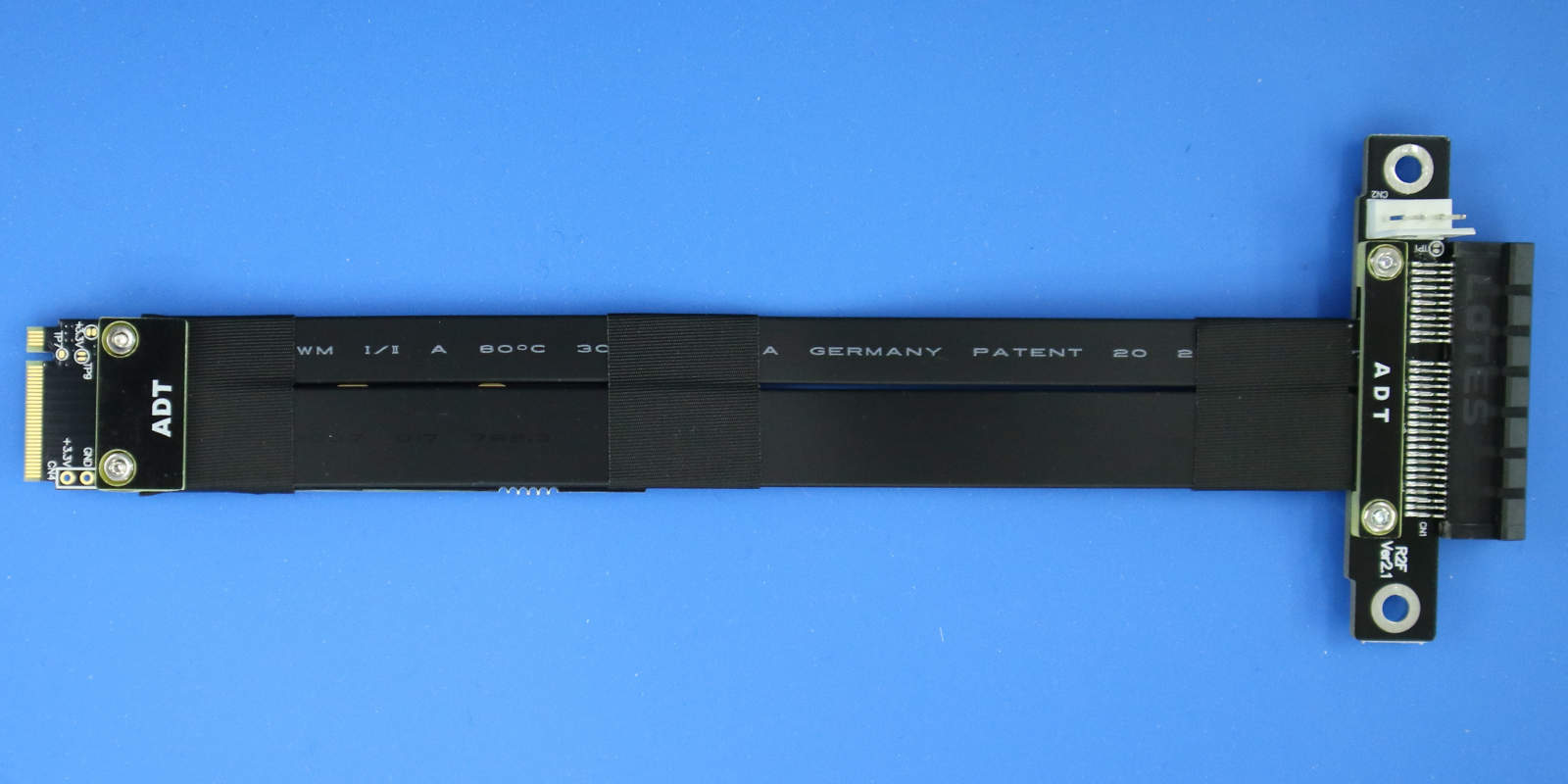

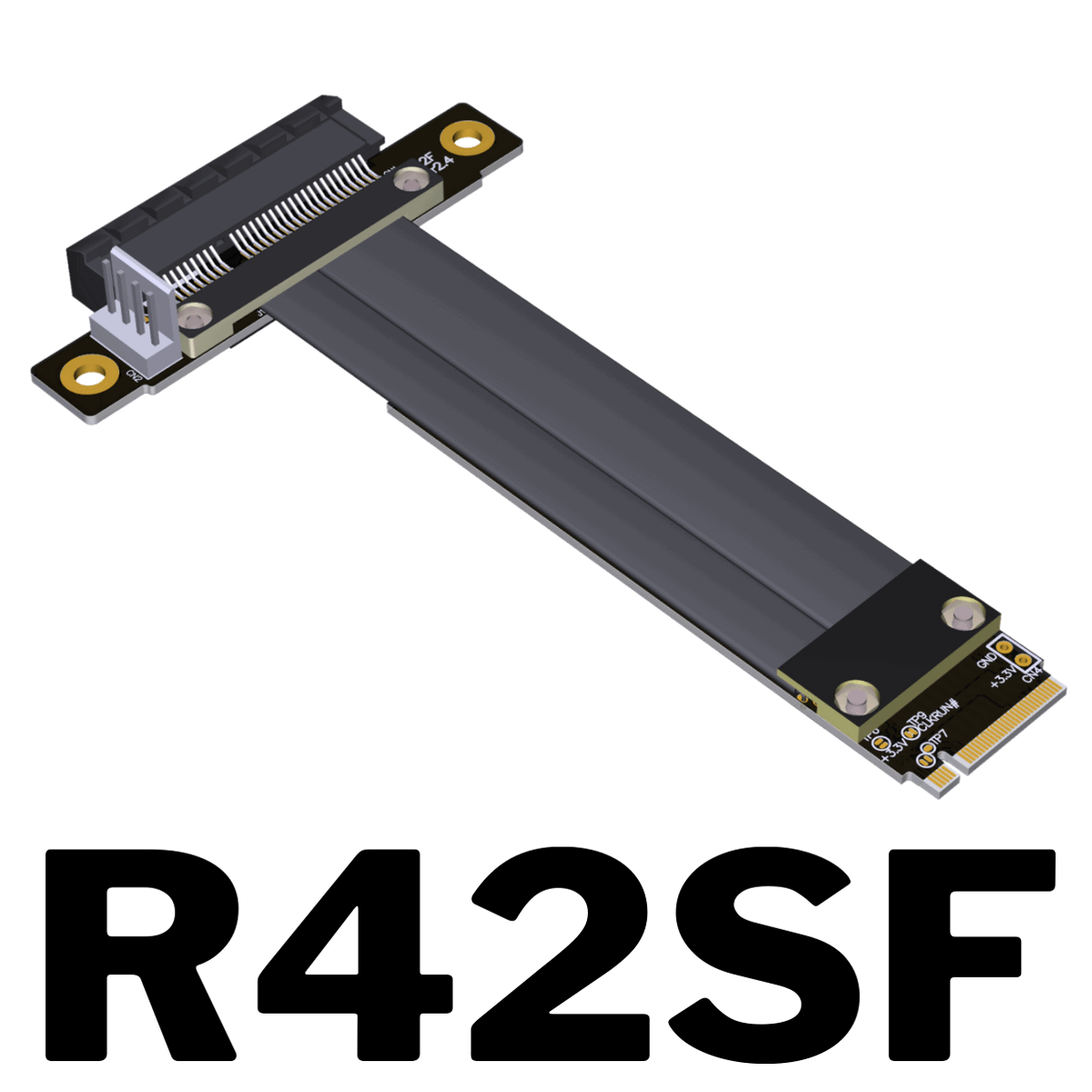

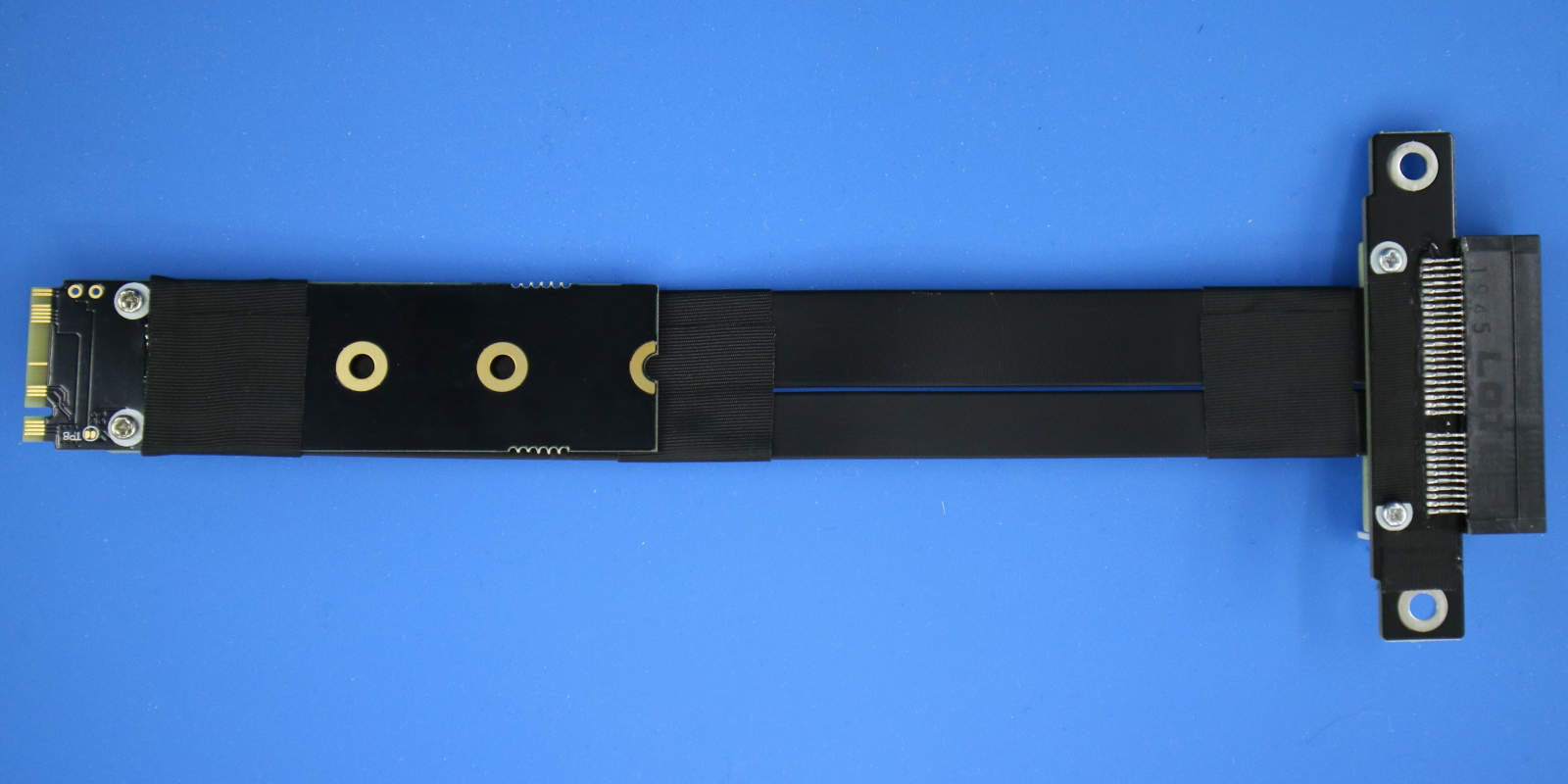

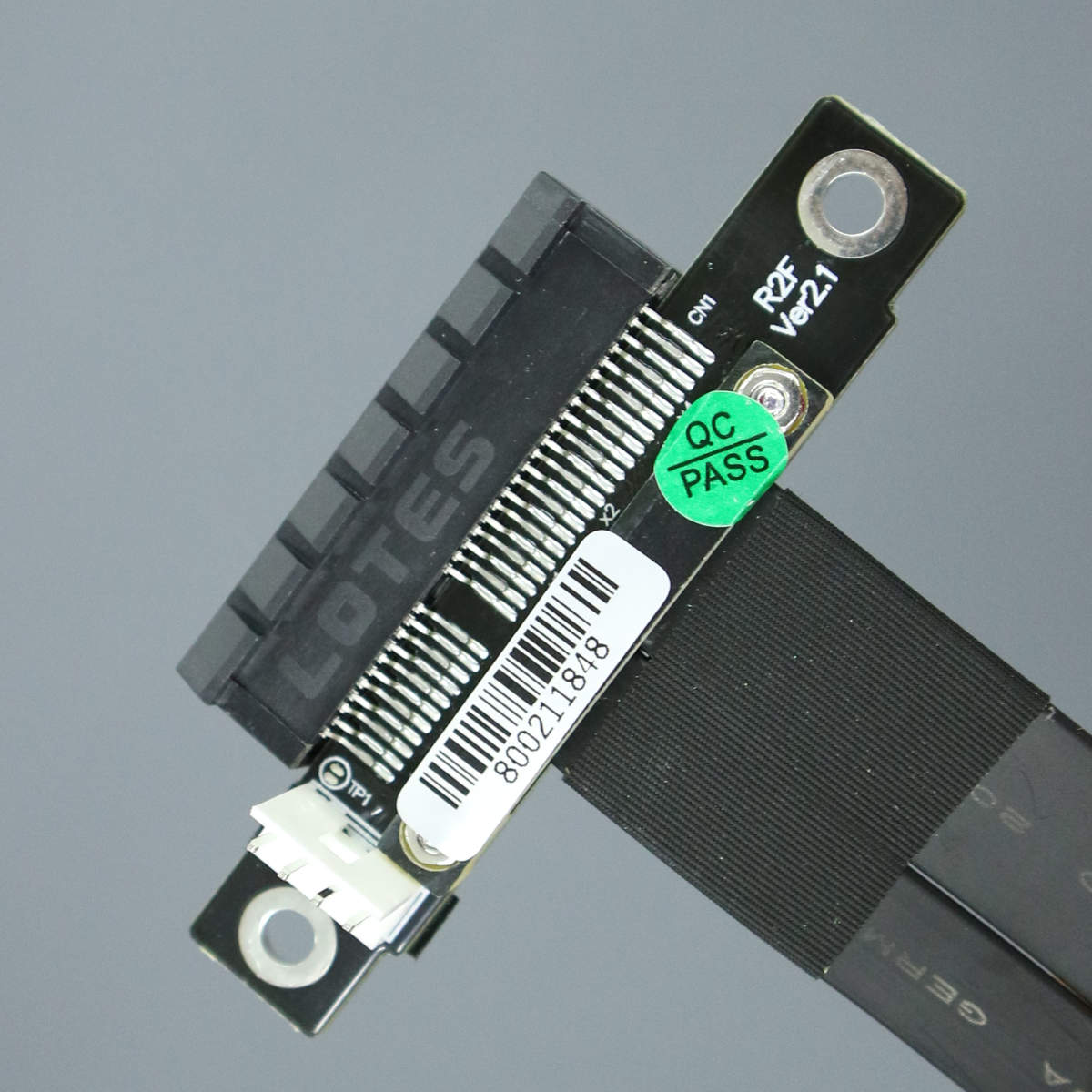

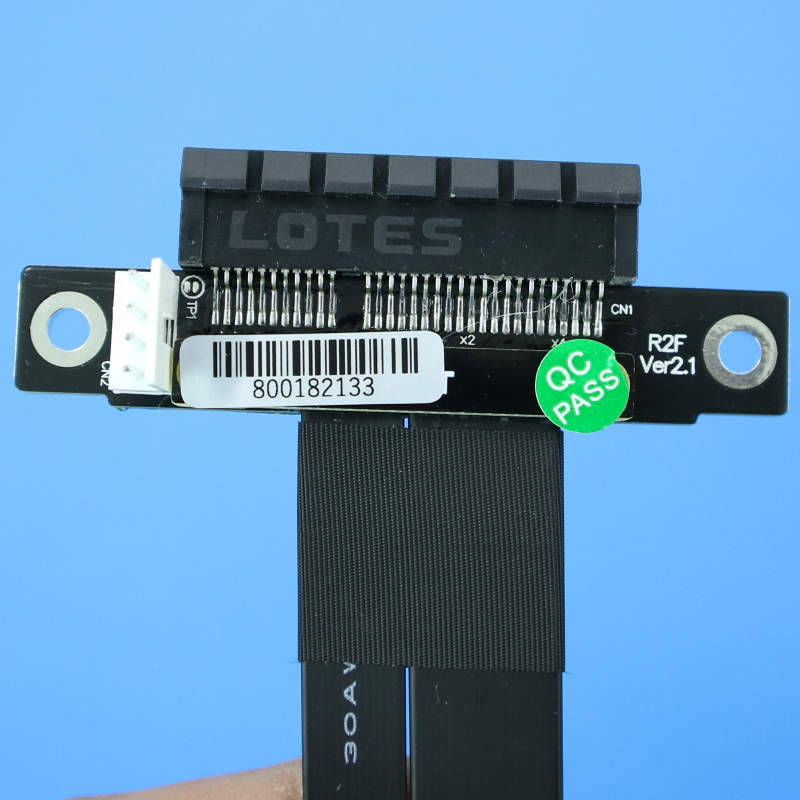

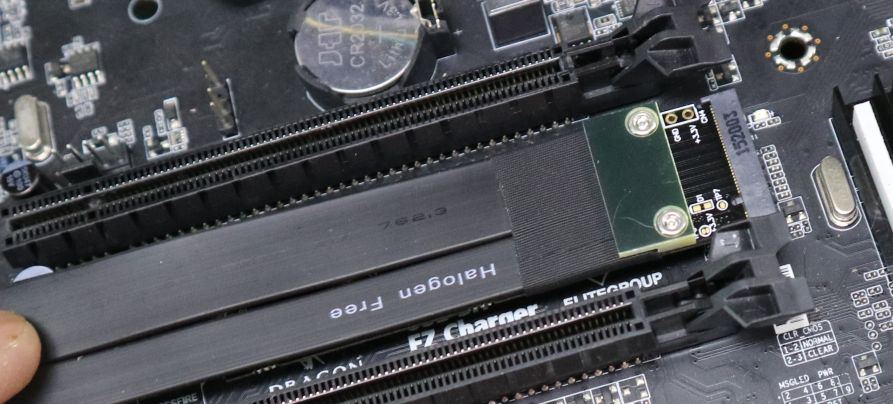

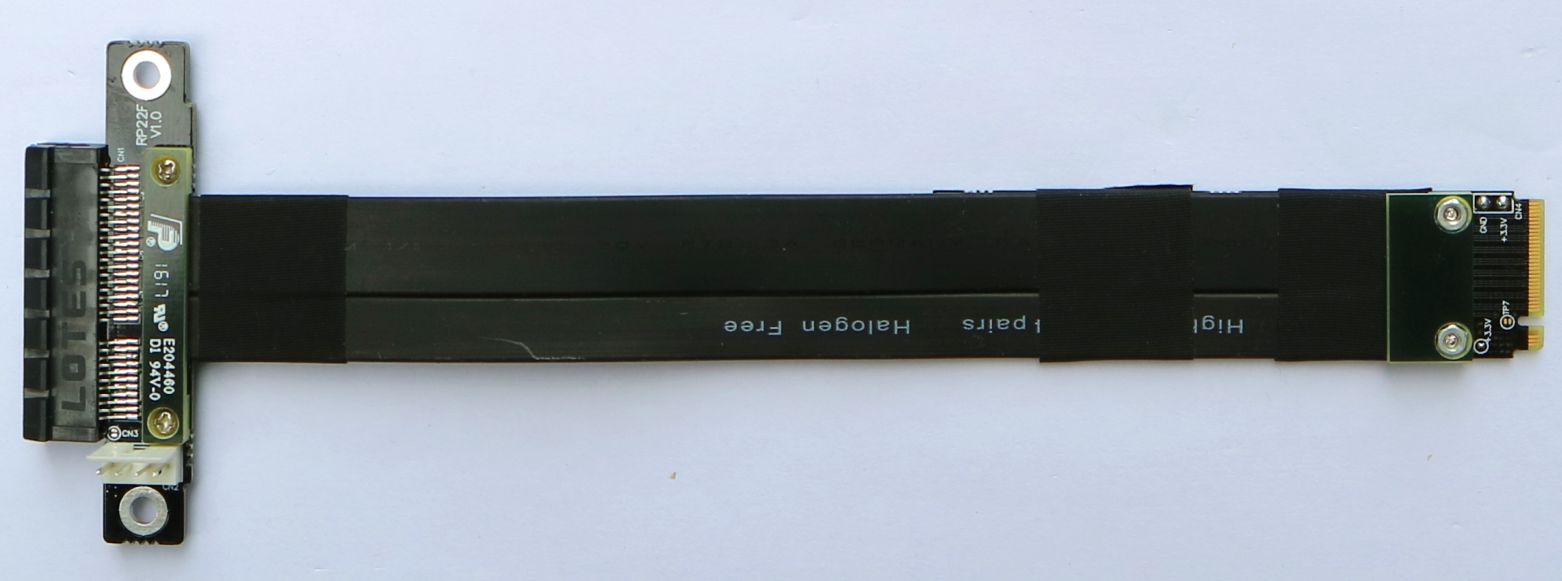

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D model PDF files download http://www.adt.link/Uploads/download/ADT_R42_3D.zip

3D model STEP files download http://www.adt.link/Uploads/download/ADT_R42_STEP.zip

Spec download http://www.adt.link/Uploads/download/ADT_R42SF Cable specification 20200630.pdf

Spec download http://www.adt.link/Uploads/download/ADT_R42SS schematic 20200117.pdf

FTP: Hong Kong

3D model PDF files download http://www.adtlink.cn/Uploads/download/ADT_R42_3D.zip

3D model STEP files download http://www.adtlink.cn/Uploads/download/ADT_R42_STEP.zip
