ADT-Link PCIe 5.0 x4 to M.2 NVMe adapter

Brand name: ADT-LINK

Product name: PCIe 5.0 x4 to M.2 NVMe adapter

Product model: R24C-AB

Transfer speed: 128Gb/Sec (PCIe gen5 x4 Max.)

Application:M.2 NVMe SSD Card to PCIe x4/x8/x16 interface

ADT R24C-AB Description:

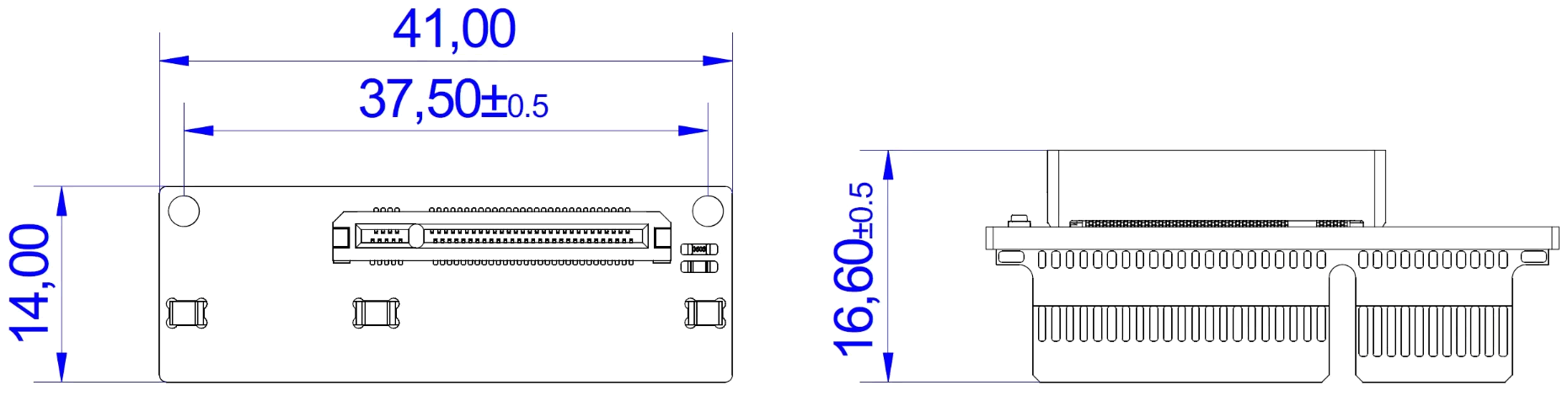

Dimension data of the product.

Product advantages:
1. Support PCIe 5.0 x4, compatible with gen3/gen4/gen51. Supports PCIe 5.0 X4 compatibility with Gen3/Gen4/Gen5

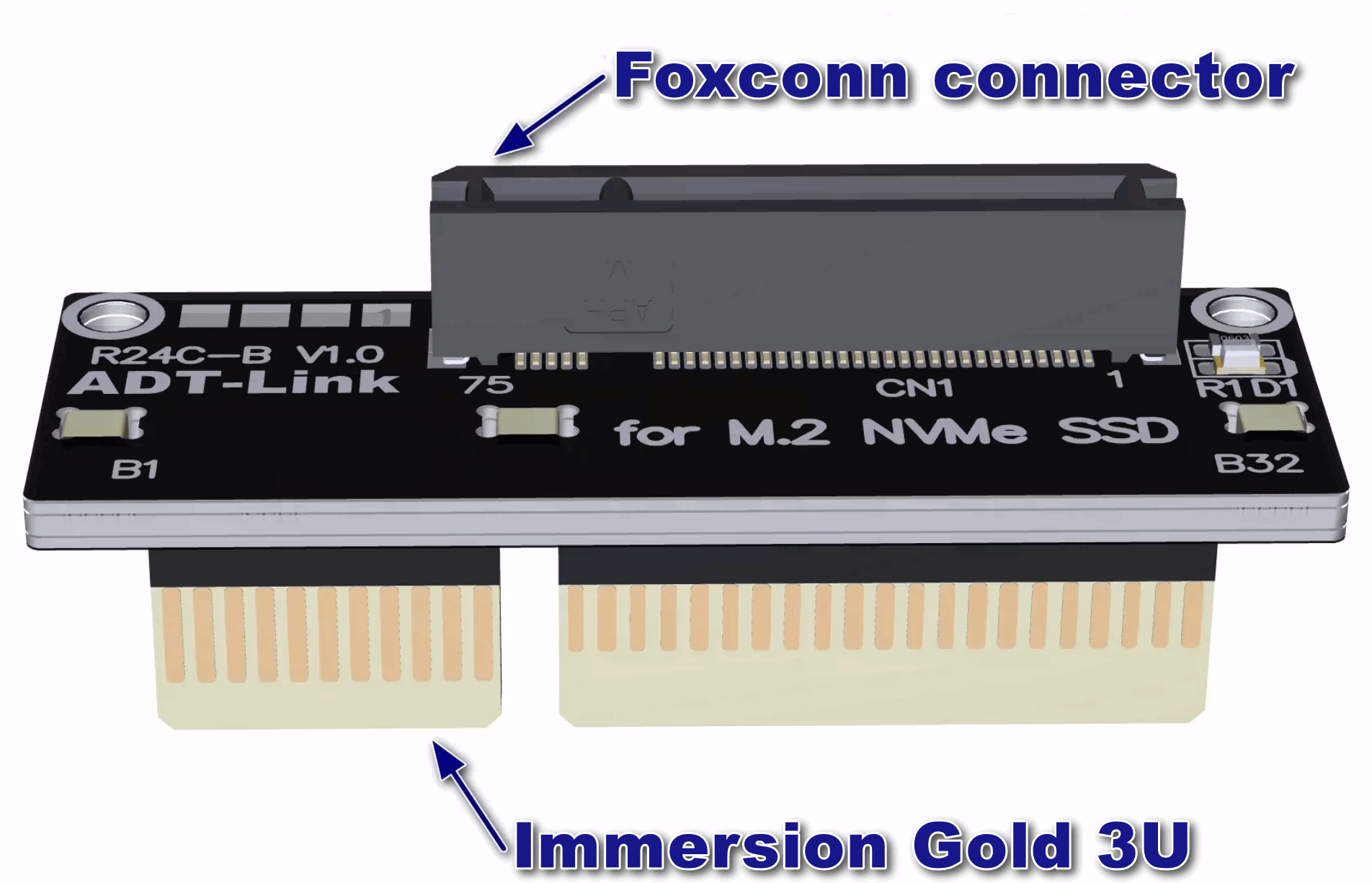

2. Gold finger gold plating process, in compliance with IPC Level 1 international standards
3. High frequency, low resistance, high temperature, and oxygen resistant PCB board, with no deformation, yellow crystal, semi transparent color, no whitening, and no blackening

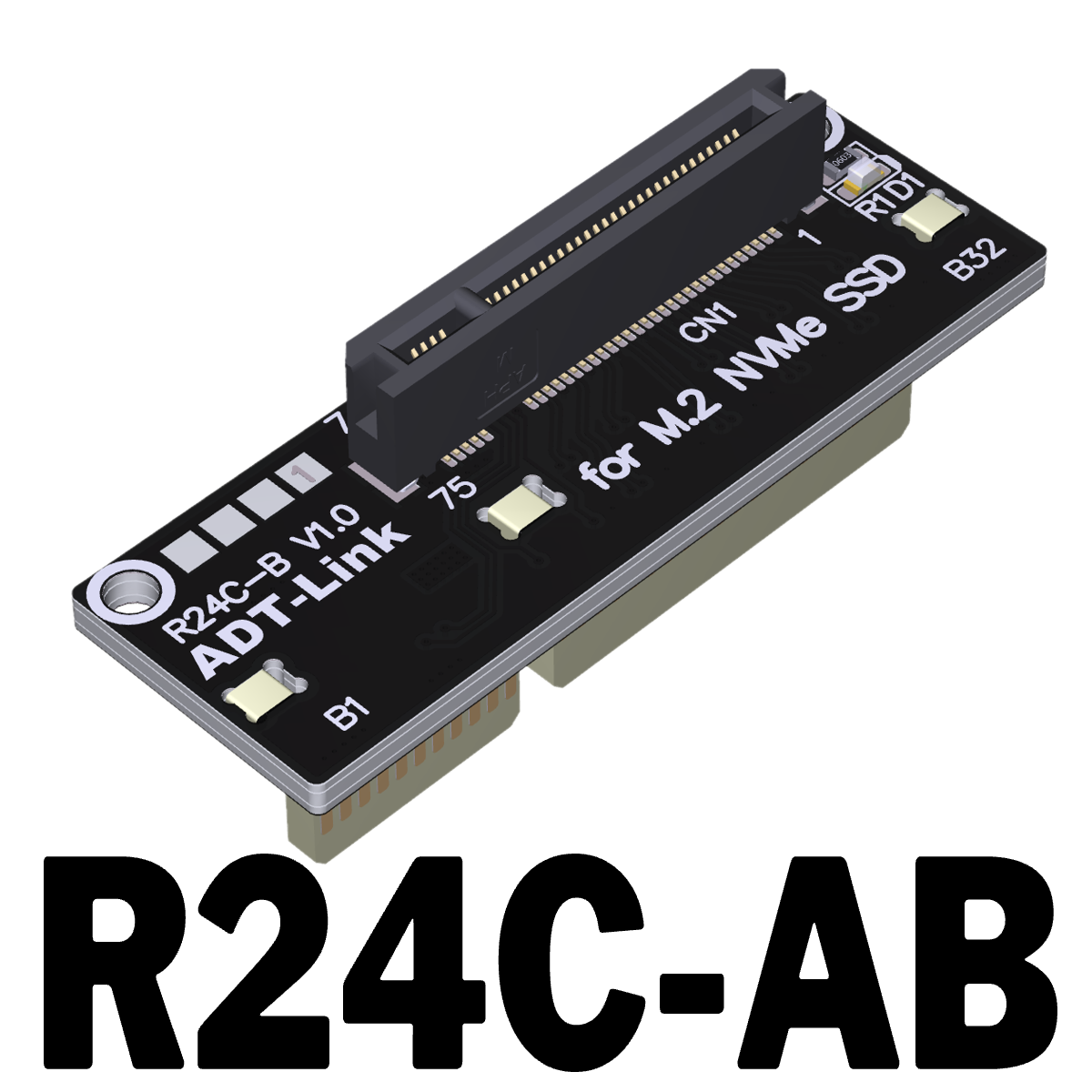

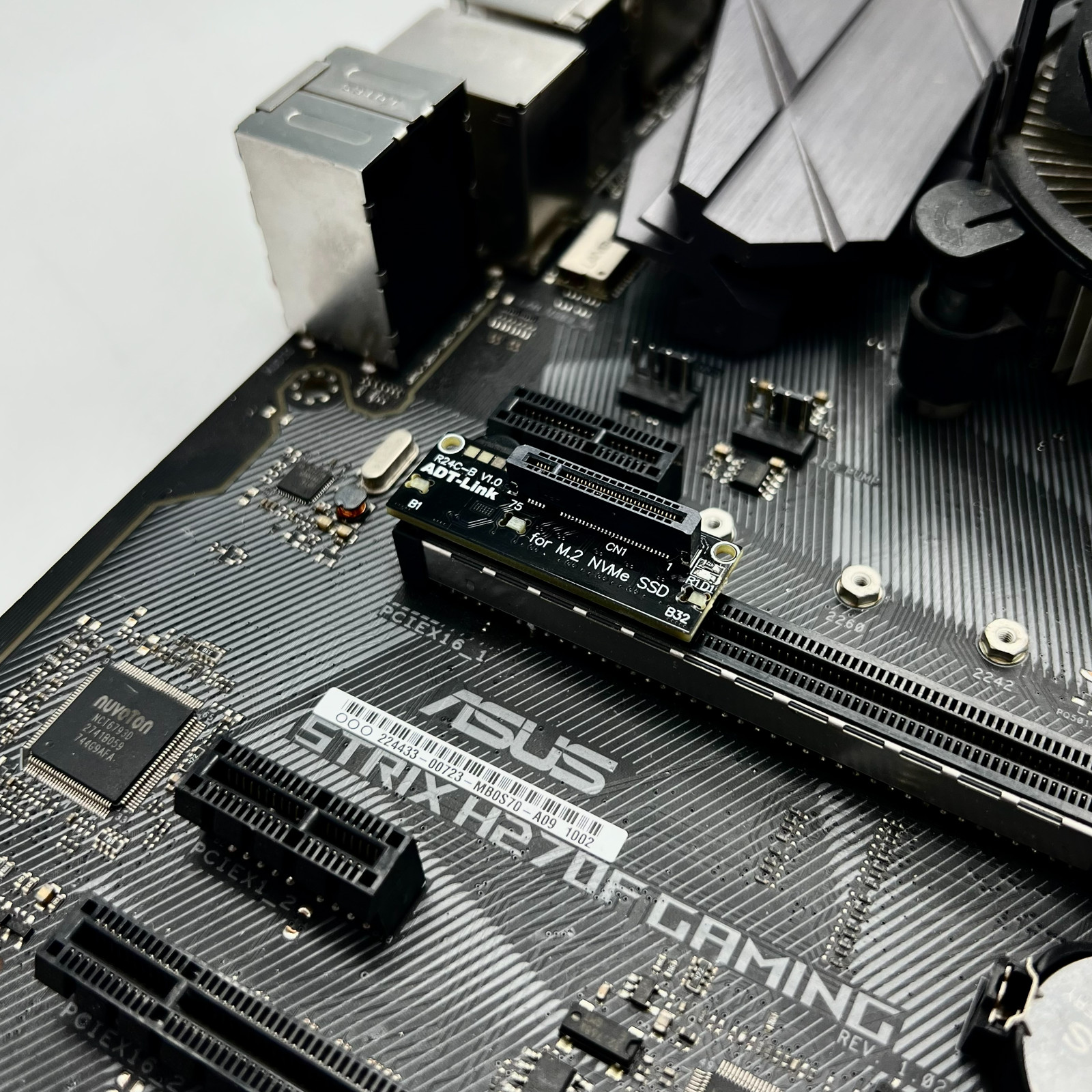

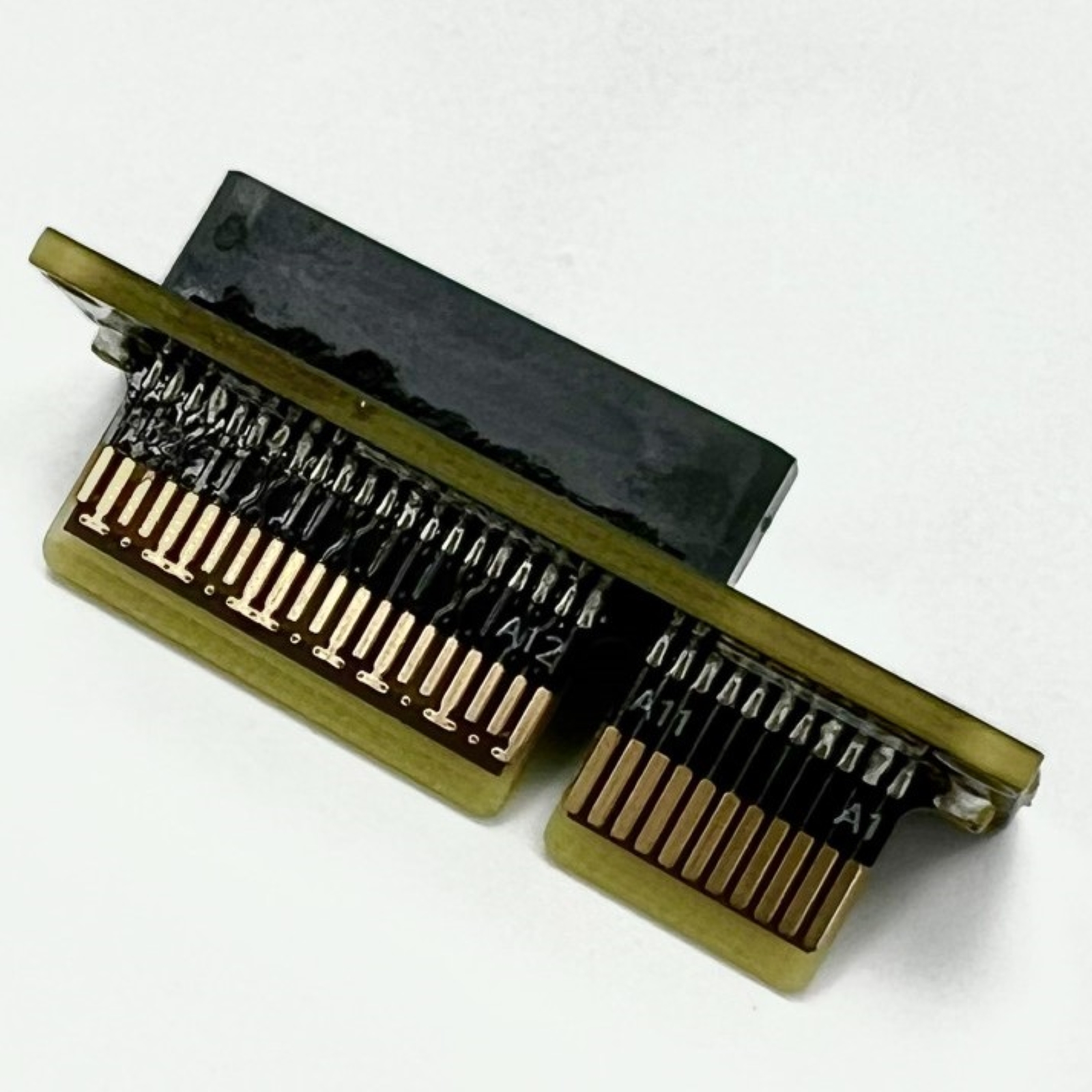

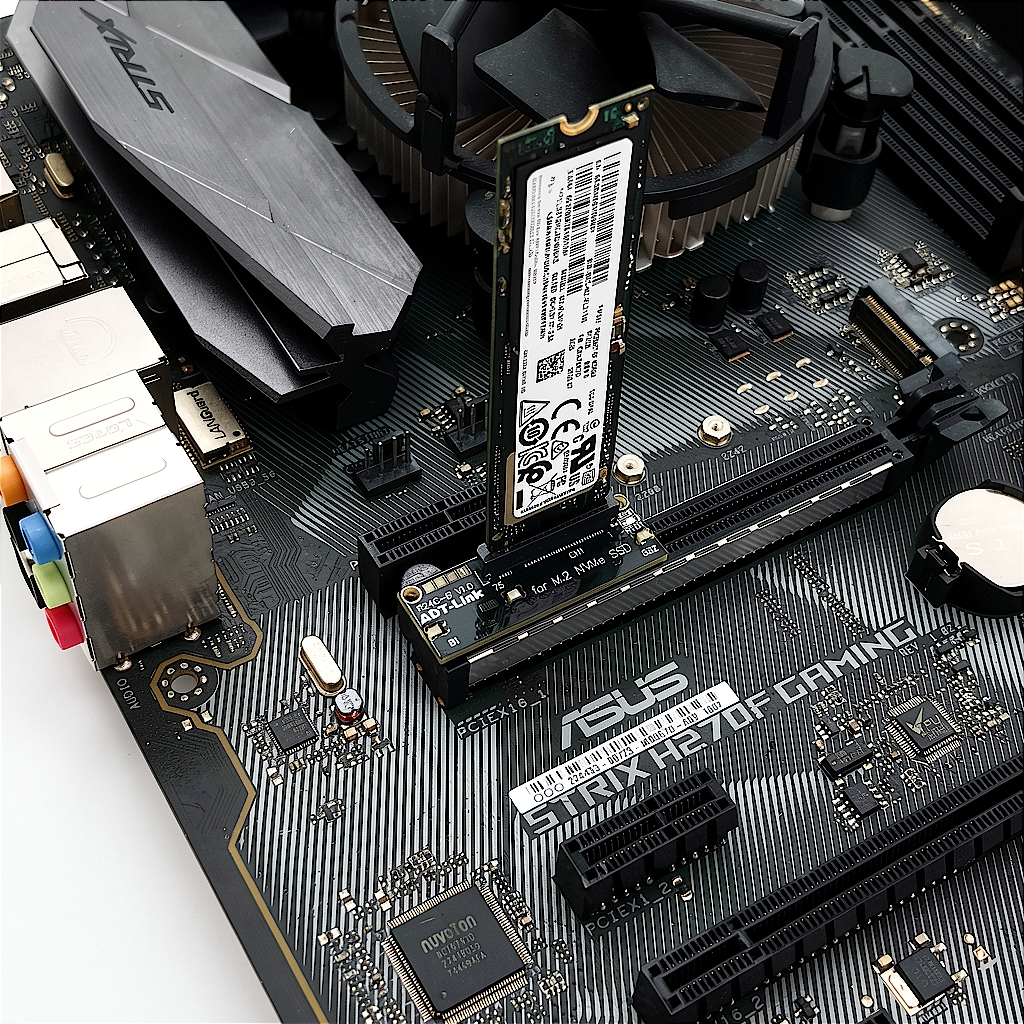

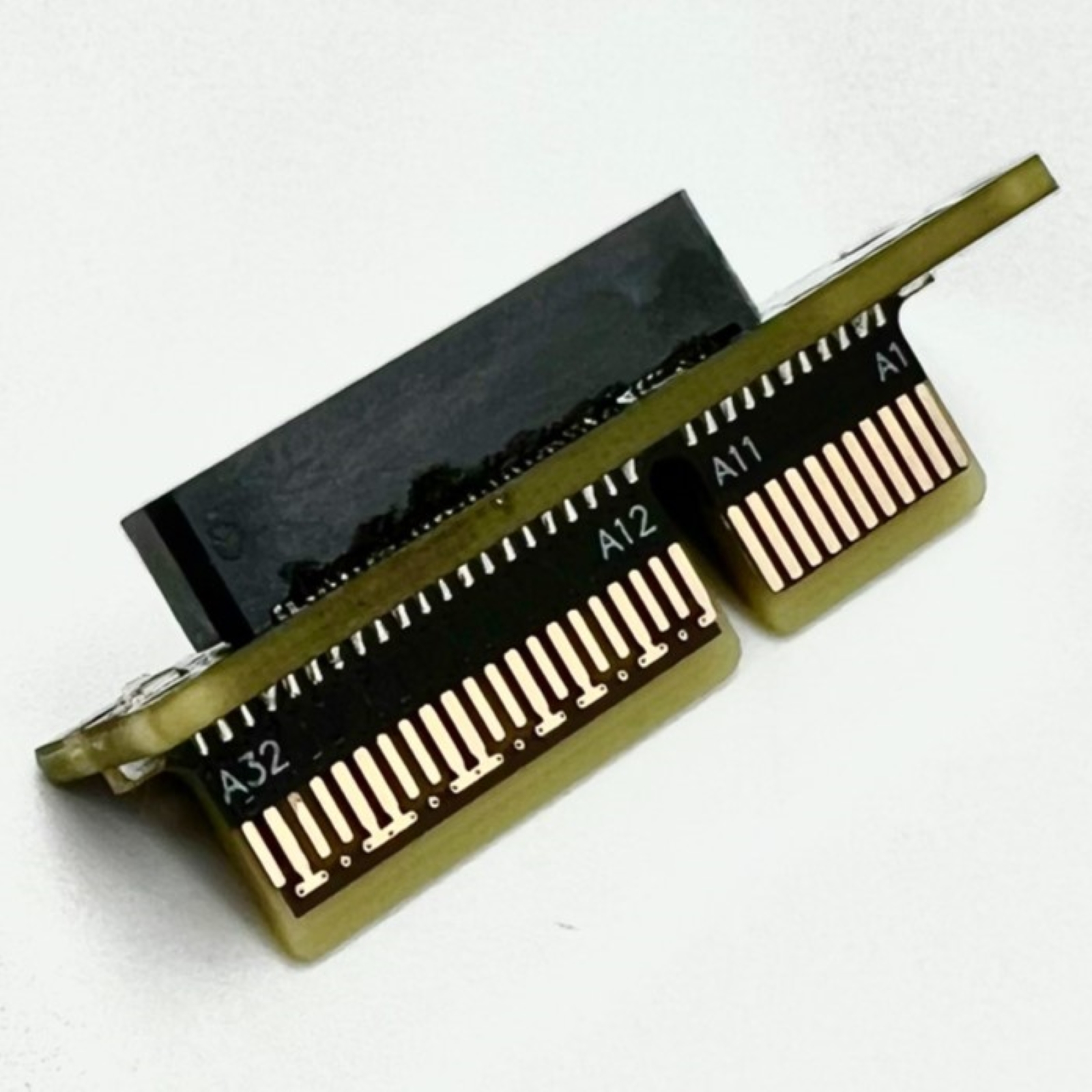

Photos:

Q&A:

Test data:
Does R24C-AB support 5.0?

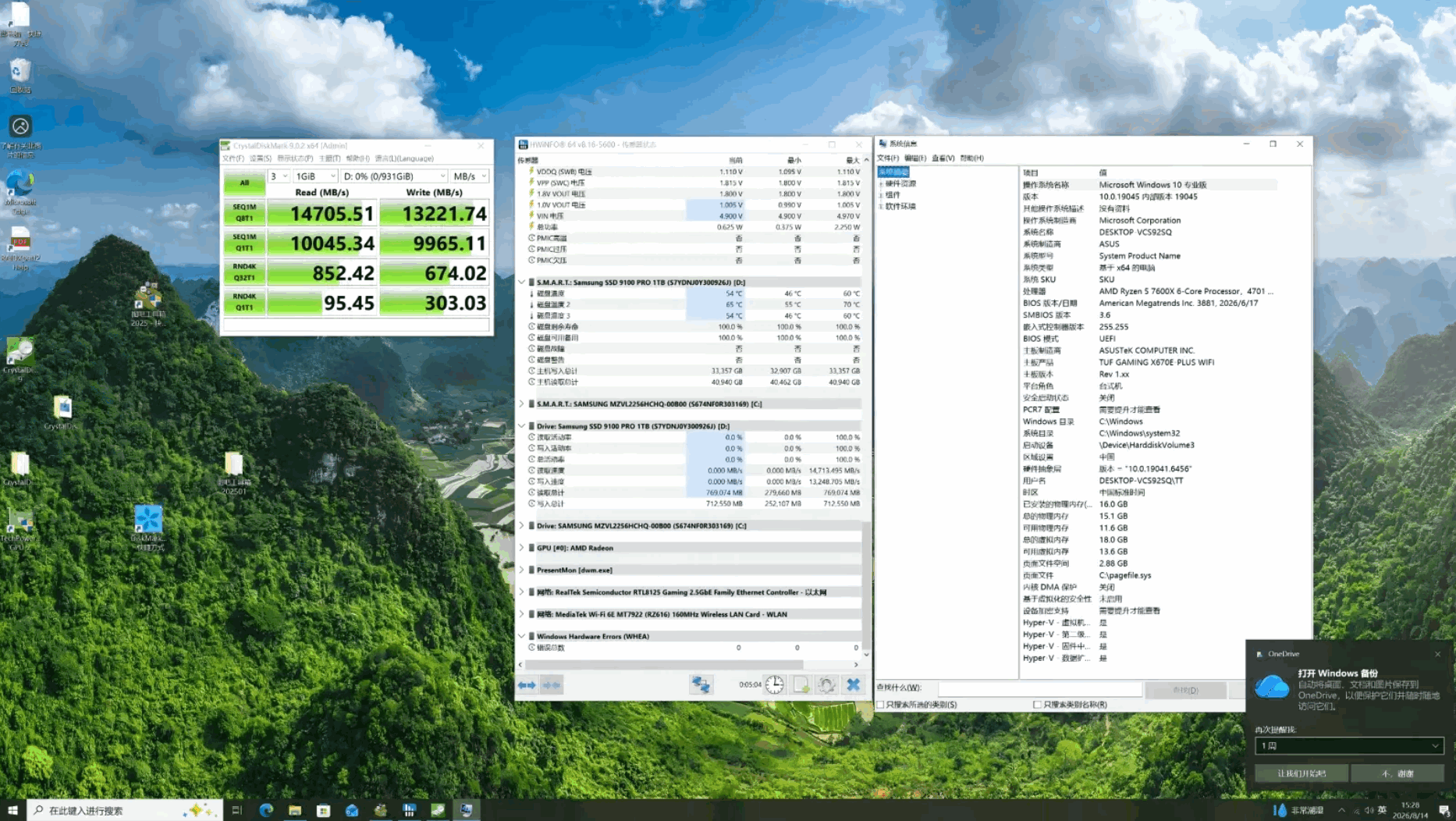

We have tested that PCIe5.0 can be achieved, and the measured data is shown in the following figure:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D model files download https://www.adt.link/download/ADT_R24C-AB_3D.zip

FTP: Hong Kong

3D model files download https://www.adtlink.cn/download/ADT_R24C-AB_3D.zip
