OcuLink Extension Cable

K49SA-BK

Product ID:K49SA-BK
Interface: M.2 Key M /SFF-8612
Transferspeed:PCIe 4.0 x4
Shelf time：2025-Jun-30
Product description: ADT M.2 NVMe to Oculink SFF-8612 Flat Extension Cable
INQUIRY

Cable Length

Part-Number

Note

ADT-Link M.2 NVMe to Oculink SFF-8612 Extension Cable

Brand name: ADT-LINK

Product name:M.2 NVMe to Oculink SFF-8612 Extension Cable

Product model:K49SA-BK

Transferspeed:PCIe 4.0 x4, gen4, 64G/bps (Max.)

Wire length: 5~ 100 cm, the length can be customized

Application:Convert the M.2 SSD interface of small host, desktop, notebook, etc. to OcuLink SFF-8612 interface

ADT K49SA-BK series Part-Number Description:

P/N	Description	Bandwidth
K49SA-BK	M.2 NVMe to Oculink SFF-8612 Extension Cable	PCIe 4.0 x4 (64G/bps)

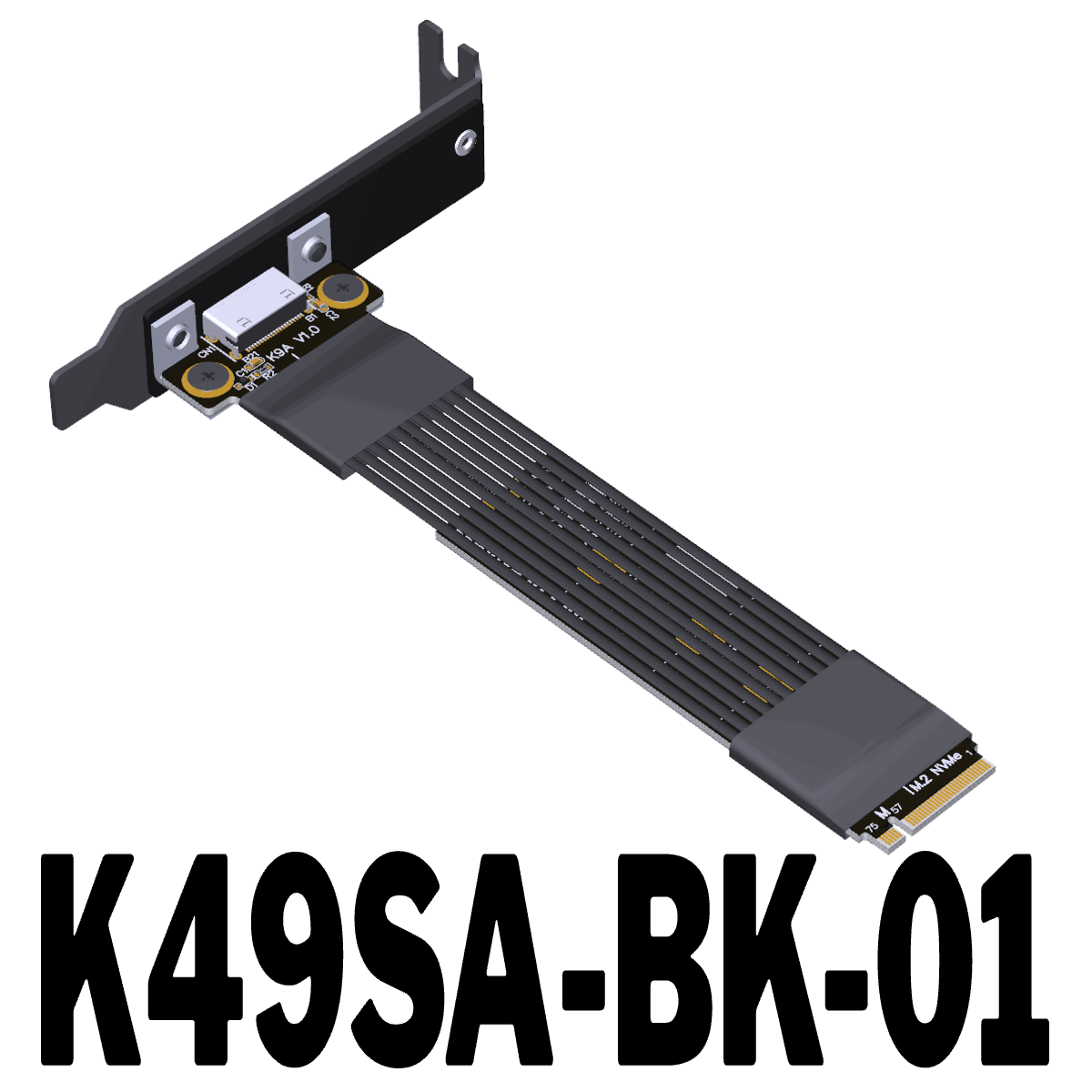

K49SA-BK-01	M.2 NVMe to Oculink SFF-8612 Extension Cable with half-height baffle	PCIe 4.0 x4 (64G/bps)

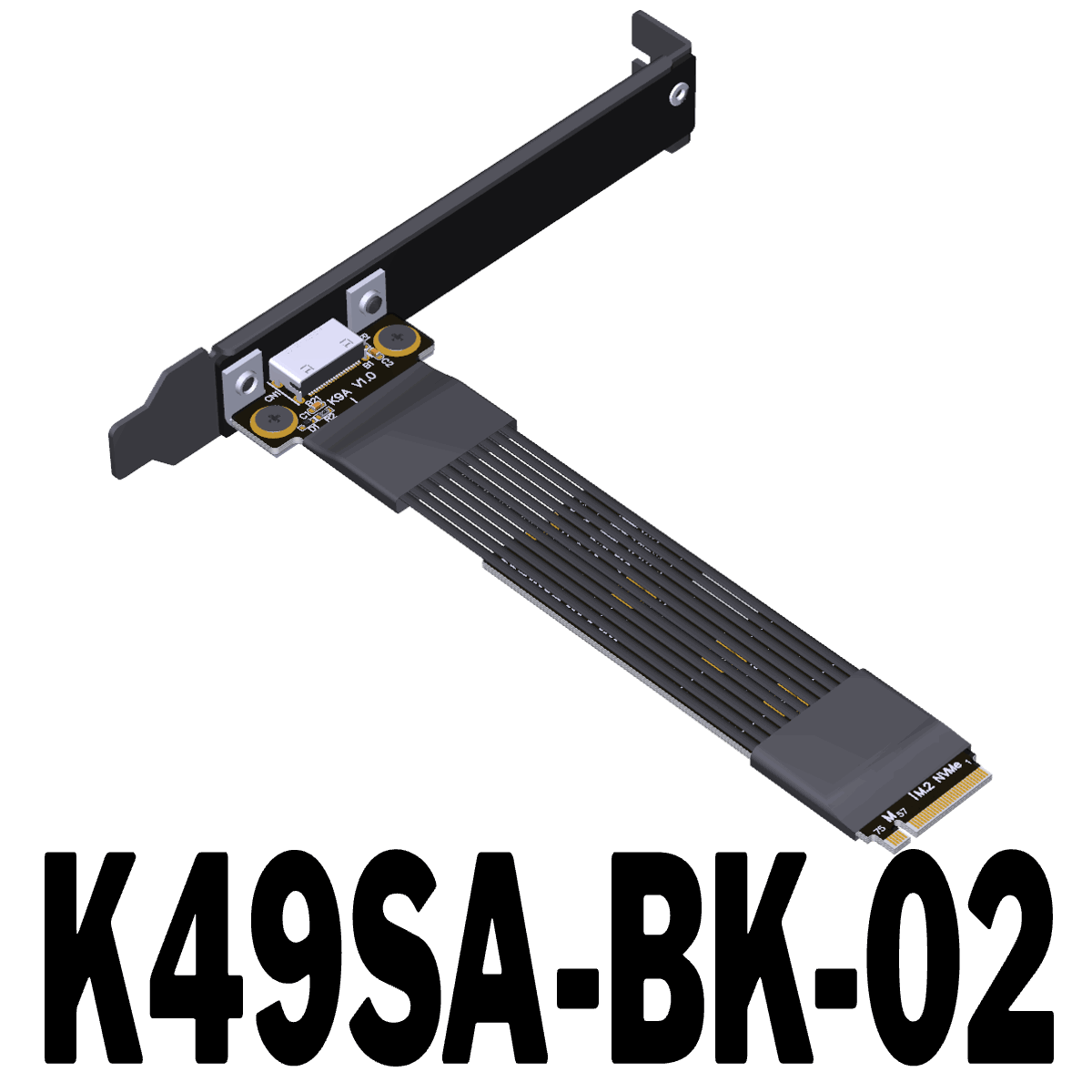

K49SA-BK-02	M.2 NVMe to Oculink SFF-8612 Extension Cable with full-height baffle	PCIe 4.0 x4 (64G/bps)

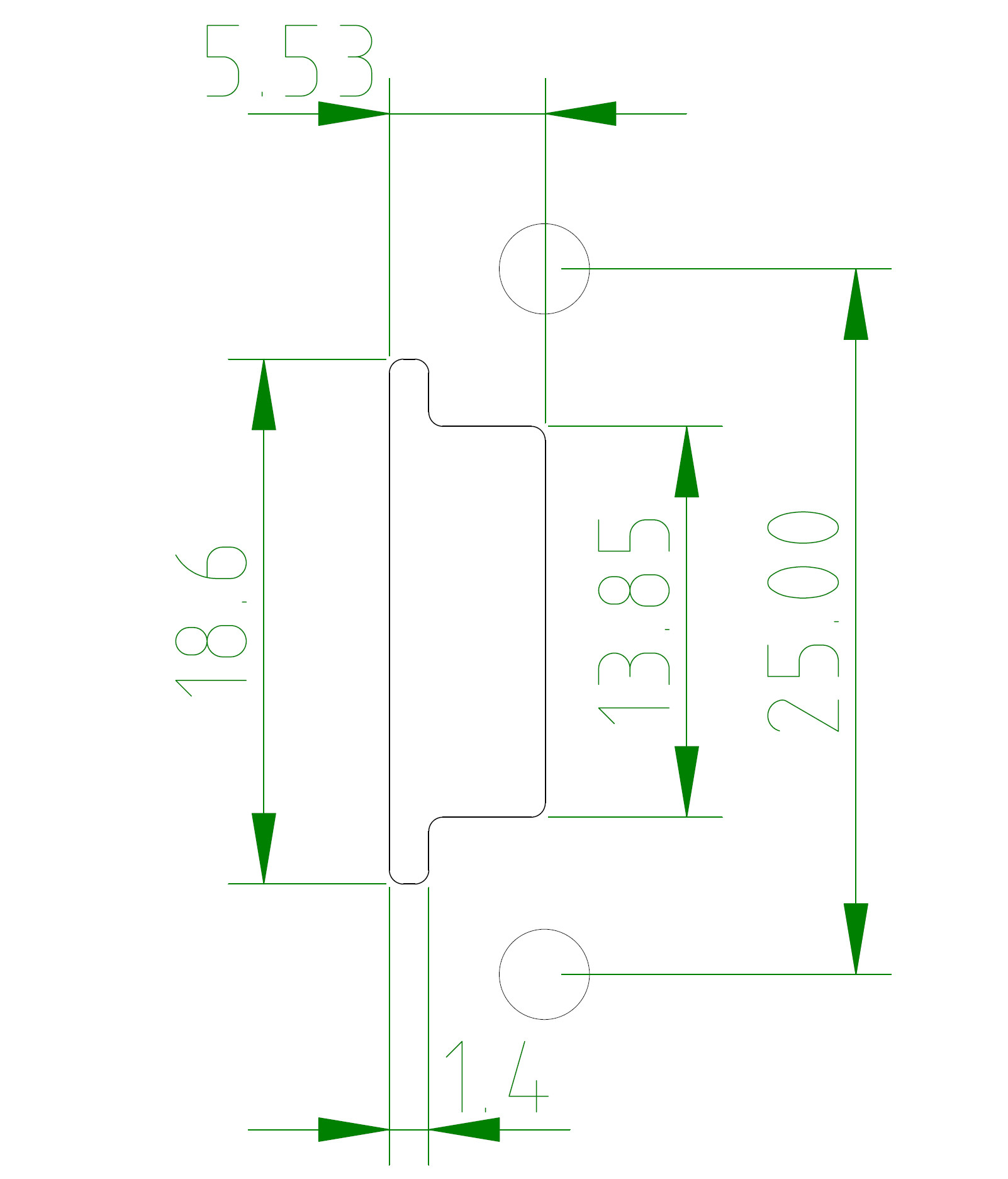

K49SA installation interface size?
Fix with M3 screws

Cable length Description:
The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the blue arrow in the figure below.

Can the PCB be shortened?
Yes, the PCB on one end of the K49SA M.2 can be cut according to the white line indicated by the arrow, and the minimum supported size is 2230

Can K49SA-BK support PCIe 4.0?
The laboratory test shows that it can reach the full speed of PCIe4.0. The difference between the 3DMARK running score after the graphics card dock adapter and the direct plug-in running score is only 1%
The actual test data of our store is as follows:

Test equipment: 7600x + 4070 + Xingu 850W power supply (direct plug)

Test equipment: 7600x + K49SA + F9G + F9934 + 4070 + Xingu 850W power supply (using graphics card dock adapter)

How is the quality of the cable? Is it shielded?
It has a metal layer shield, uses advanced EMI shielding conductive polymer, a new type of material for EMI shielding, and a flat cable design. This technology allows each cable to be completely covered by the electromagnetic interference shielding of the conductive polymer to prevent the incident or outgoing emission of electromagnetic frequencies, minimize interference and performance degradation, and reduce the weight of the cable.

Is the cable soft? Can it be bent?
The cable is the fifth-generation PCIe dedicated cable independently developed by ADT
It is a thin black version with a thickness of 0.8mm. The cable is very soft and bendable, which does not affect its use.
