Brand name: ADT-LINK

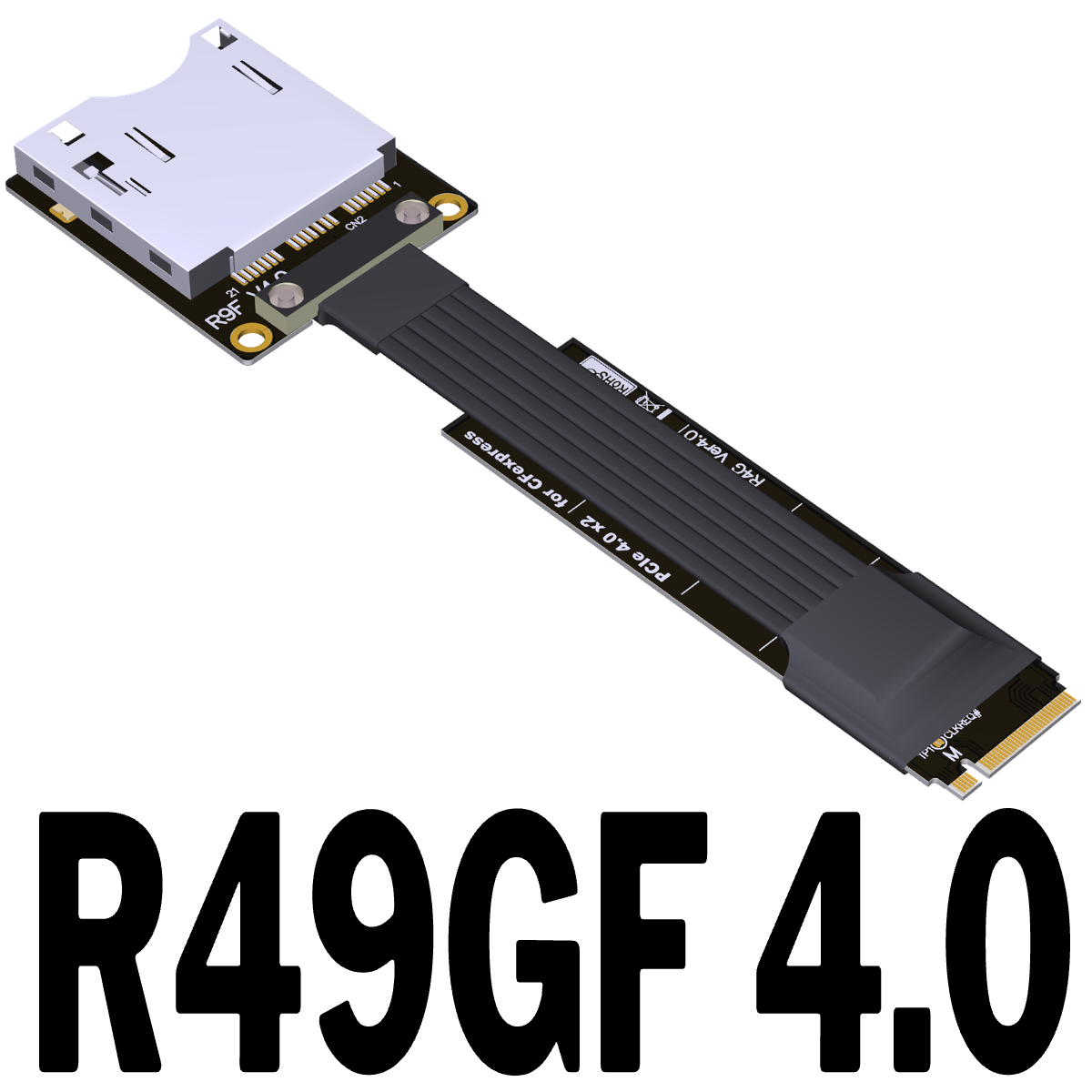

Product name: M.2 NVMe to CFexpress type_B Extender
Product model: R49GF 4.0
Transfer speed: 32Gb/Sec (PCIe gen4 x2 Max.)
Weight: 50g
Dimension: support M.2 NGFF key M(2230 2242 2260 2280) NVMe socket
Application: M.2 NVMe to CFexpress extension cable
Part-Number Description:
Part-Number |
Description |
Speed |
R49GF 4.0 | M.2 NVMe to CFexpress type_B Extension adapter cable |
32Gb/Sec (Max.) |
|
|
|
Cable length Description:

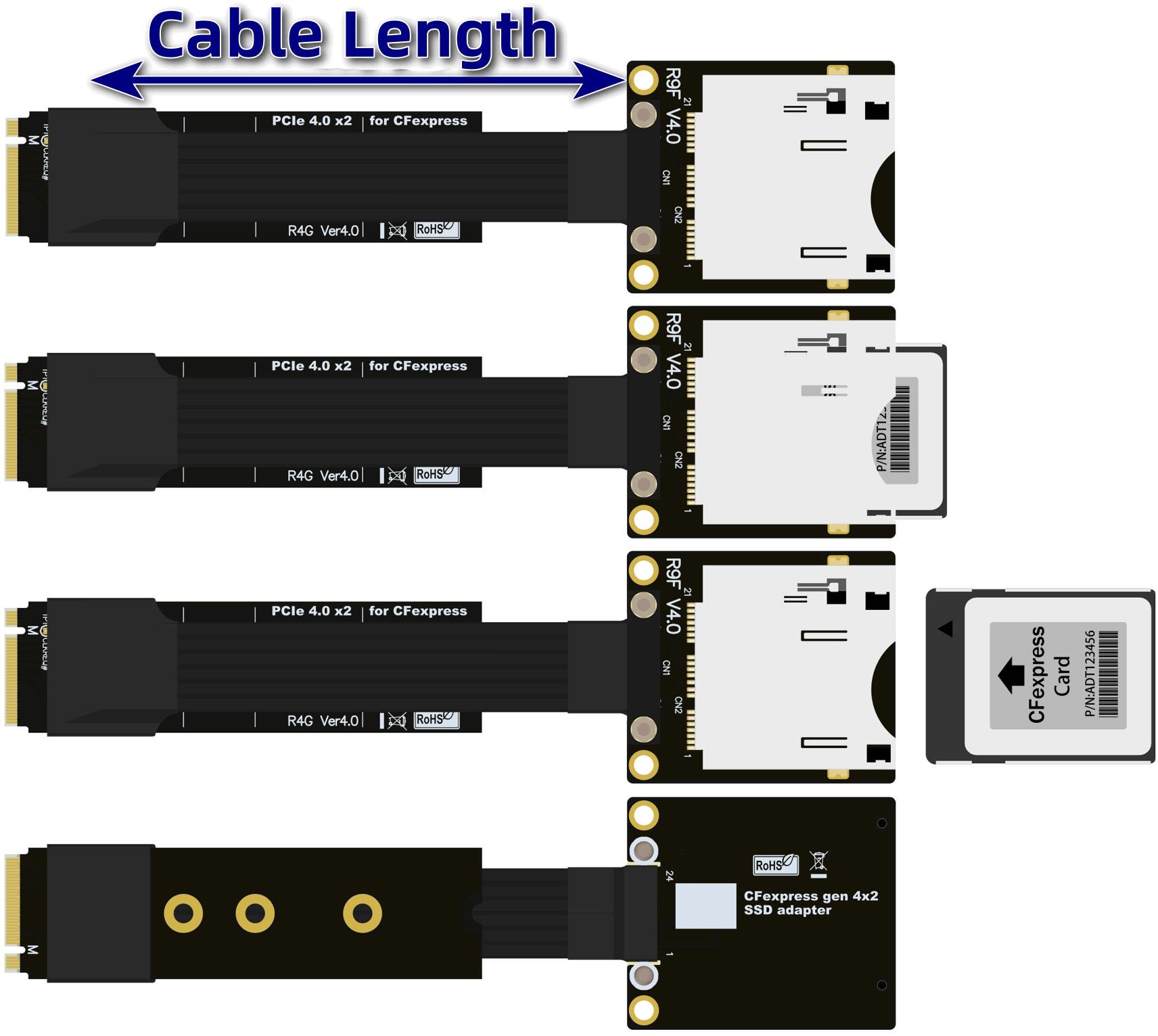

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.
Download:
To open 3D PDF files. Please use Adobe Reader DC software.
FTP: Los Angeles
Schematic & 3D model files download http://www.adt.link/Uploads/download/ADT_R9xV4.zip
FTP: Hong Kong
Schematic & 3D model files download http://www.adtlink.cn/Uploads/download/ADT_R9xV4.zip
WebShop:
http://www.adt.link/product/R49V4-Shop.html
