M.2 NVMe to PCIe x4 Extender

  • R42SS R42US R42NS
  • R42SS R42US R42NS
  • R42SS R42US R42NS
  • R42SS R42US R42NS
  • R42SS R42US R42NS
R42SS R42US R42NSR42SS R42US R42NSR42SS R42US R42NSR42SS R42US R42NSR42SS R42US R42NS

R42SS R42US R42NS

  • Product ID:R42SS R42US R42NS
  • Interface: M.2 NVMe / PCIe x4
  • Application: M. 2 NVME to Pcie x4 Jumper Cable
  • Shelf time:2023-01-10 11:07:19
  • Product description: M.2 NVMe to PCI express x4 extender adapter jumper for GPU graphics video cards.
  • INQUIRY

ADT-Link M.2 NVMe to PCI-Express x4 Jumper Cable

Brand name: ADT-LINK

Product name:M.2 NVMe to PCIe x4 jumper cable

Product model:R42SS R42US R42NS

Transferspeed:PCIe3.0 x4 full speed, gen3, 32G/bps (Max.)

Wire length:3 ~ 100 cm, the length can be customized

Application: M.2 nvme to Pcie x4 board to board jumpers , extender , adapter , flexible , foldable , pluggable


ADT PCIe Jumper products Part-Number Description:

Part-Number
Description
Bandwidth

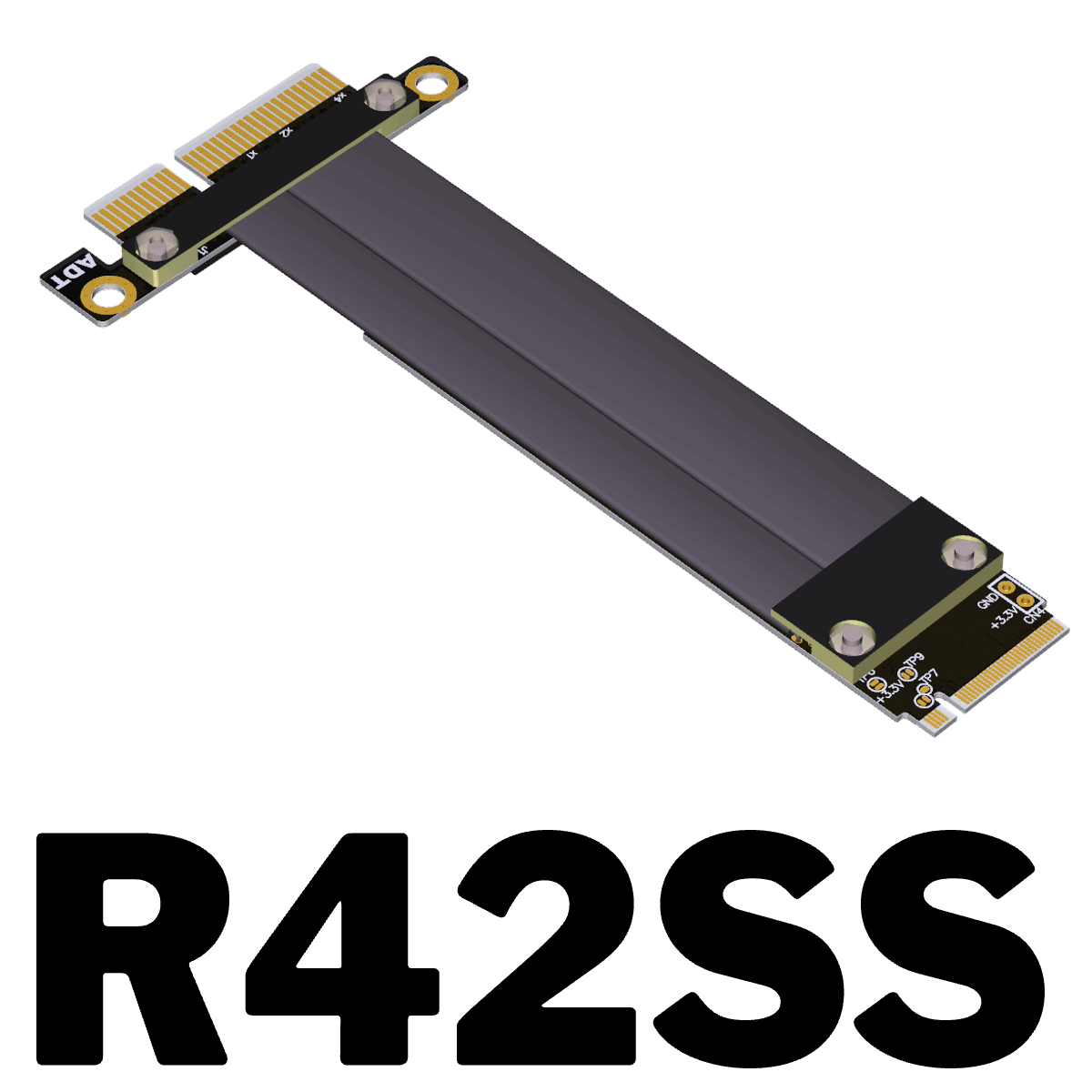

R42SS M.2 Nvme to PCI-E x4 ,goldfinger to goldfinger, Tx to Tx direct extension PCIe 3.0 x4 (32G/bps)

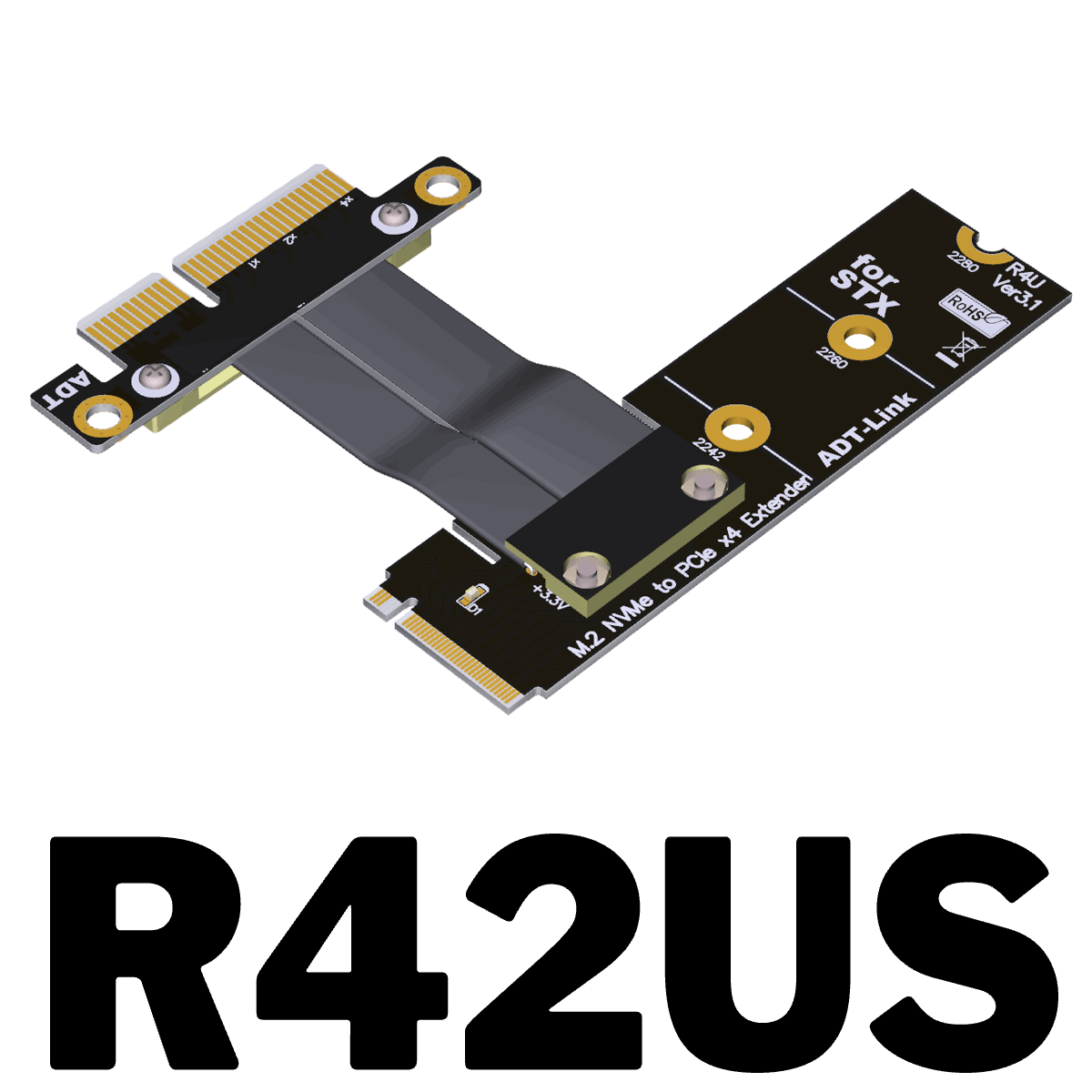

R42US
M.2 Nvme to PCI-E x4 ,goldfinger to goldfinger, Tx to Tx direct extension PCIe 3.0 x4 (32G/bps)

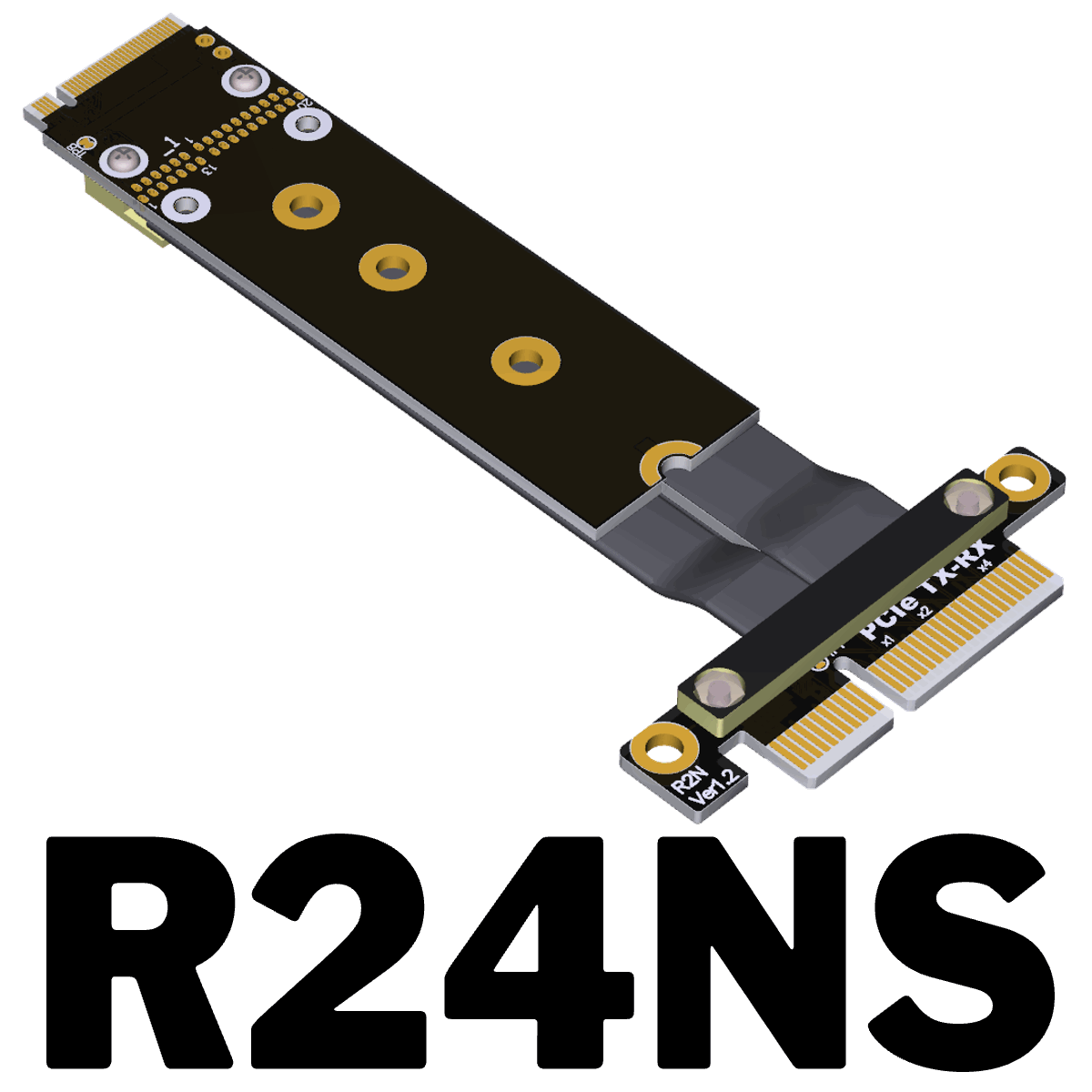

R24NS
PCI-E x4 to M.2 Nvme,goldfinger to goldfinger, Tx to Rx signal swap
PCIe 3.0 x4 (32G/bps)

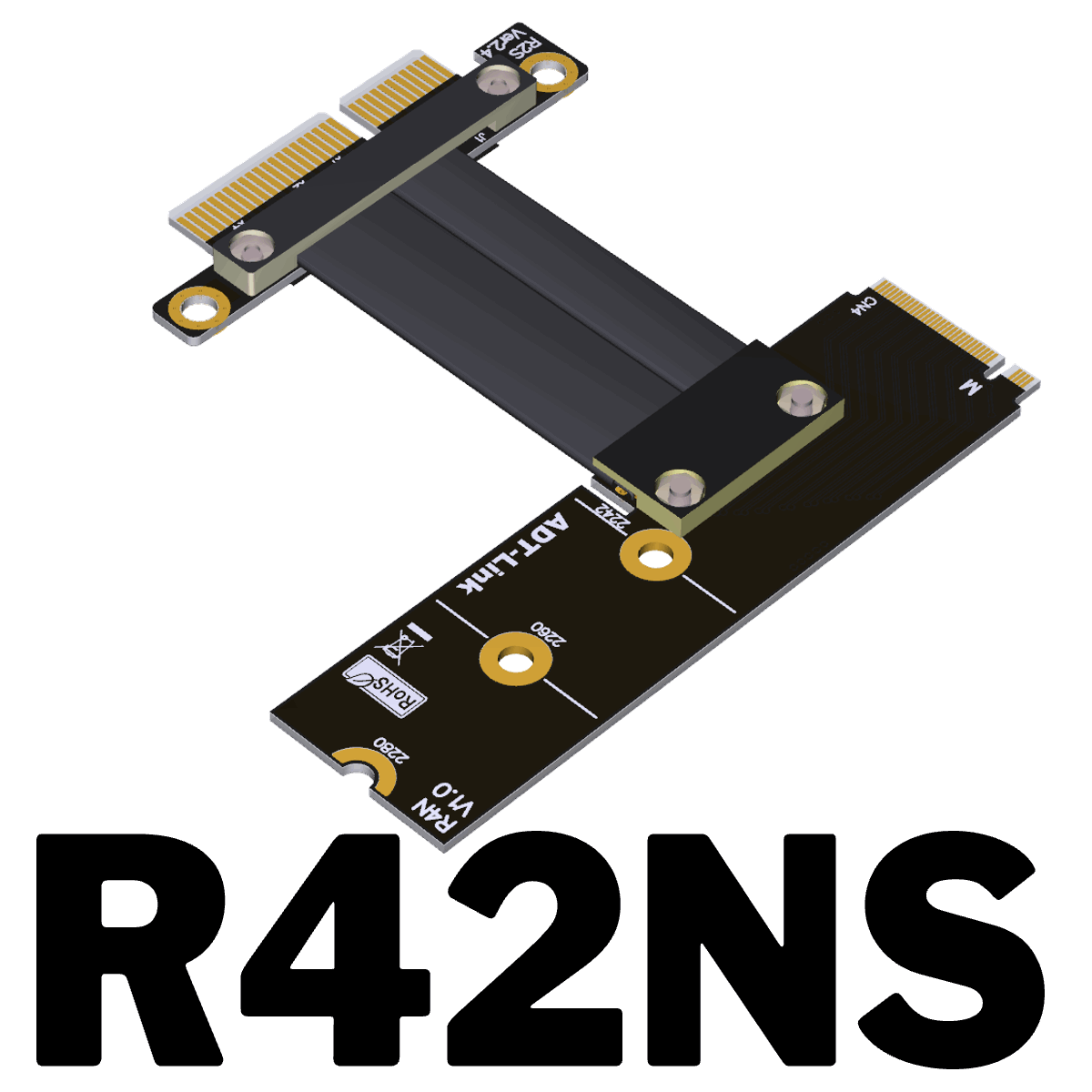

R42NS M.2 Nvme to PCI-E x4 ,goldfinger to goldfinger, Tx to Tx direct extension PCIe 3.0 x4 (32G/bps)


Cable length Description:

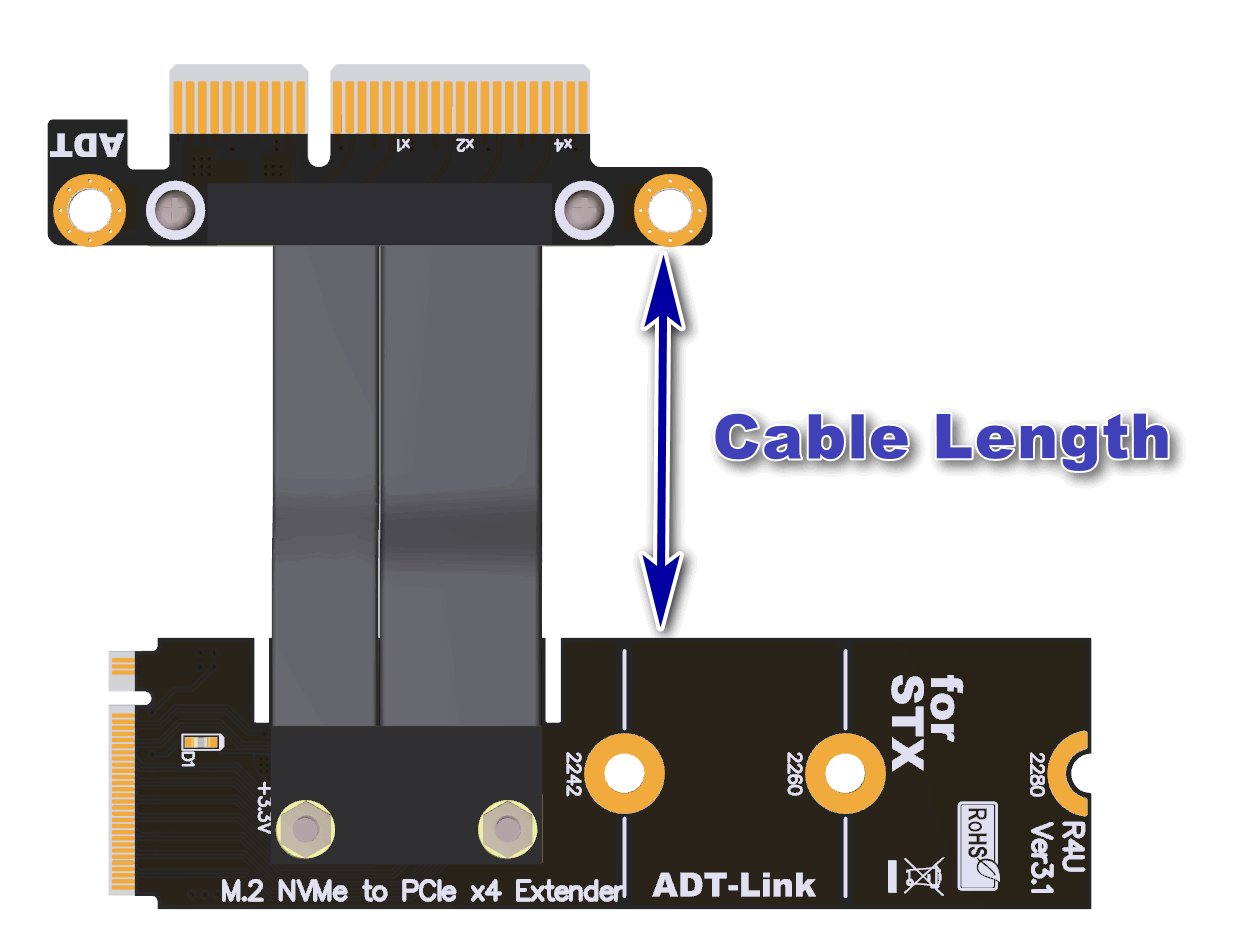

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the figure below.


Photo:


Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D  files download http://www.adt.link/Uploads/download/ADT_R42_Jumper_3D.zip

FTP: Hong Kong

3D  files download http://www.adtlink.cn/Uploads/download/ADT_R42_Jumper_3D.zip

WebShop:

http://www.adt.link/product/R42-Jumper-Shop.html
