ADT-Link PCIe 5.0 x16 to OCP NIC 3.0 adapter

Brand name: ADT-LINK

Product name: PCIe 5.0 x16 to OCP NIC 3.0 adapter

Product model: R37P

Transfer speed: PCIe 5.0 x16

Operating temperature: -40°C to 80°C

Flame retardant rating: 94V0

ADT Adapter series Part-Number Description:

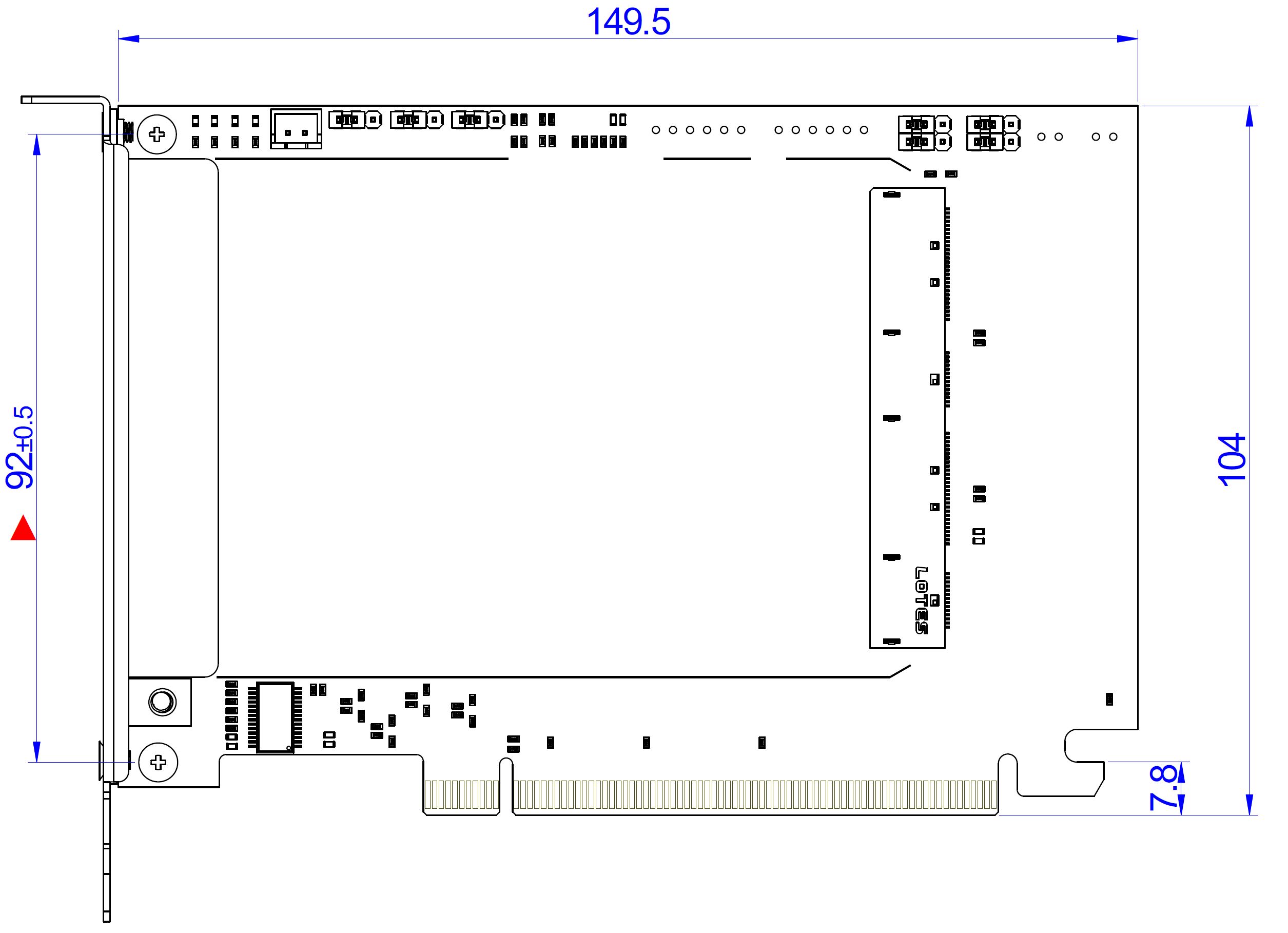

Dimension data of  Adapters

Product advantages:
1. Supports PCIe 5.0 X16 compatibility with Gen3/Gen4/Gen5
2. Exclusive design of R37P baffle, supporting OCP network card interface to be transferred outside the chassis
3. The connector is placed laterally, making the spatial structure more reasonable
4. Optional external power supply design, the motherboard and external circuit work in two separate paths, providing protection for the motherboard circuit
5. Gold finger immersion technology, in compliance with IPC Level 1 international standards
6. LOTES connector, made of LCP flame-retardant high-temperature resistant plastic steel material
7. High frequency, low resistance, high temperature, and oxygen resistant PCB board, with no deformation, yellow crystal, semi transparent color, no whitening, and no blackening
Photos:

Q&A:

Do models R37P support 5.0?

The laboratory test shows that even after serial connection, PCIe5.0 can still be achieved. The measured data is shown in the following figure:
