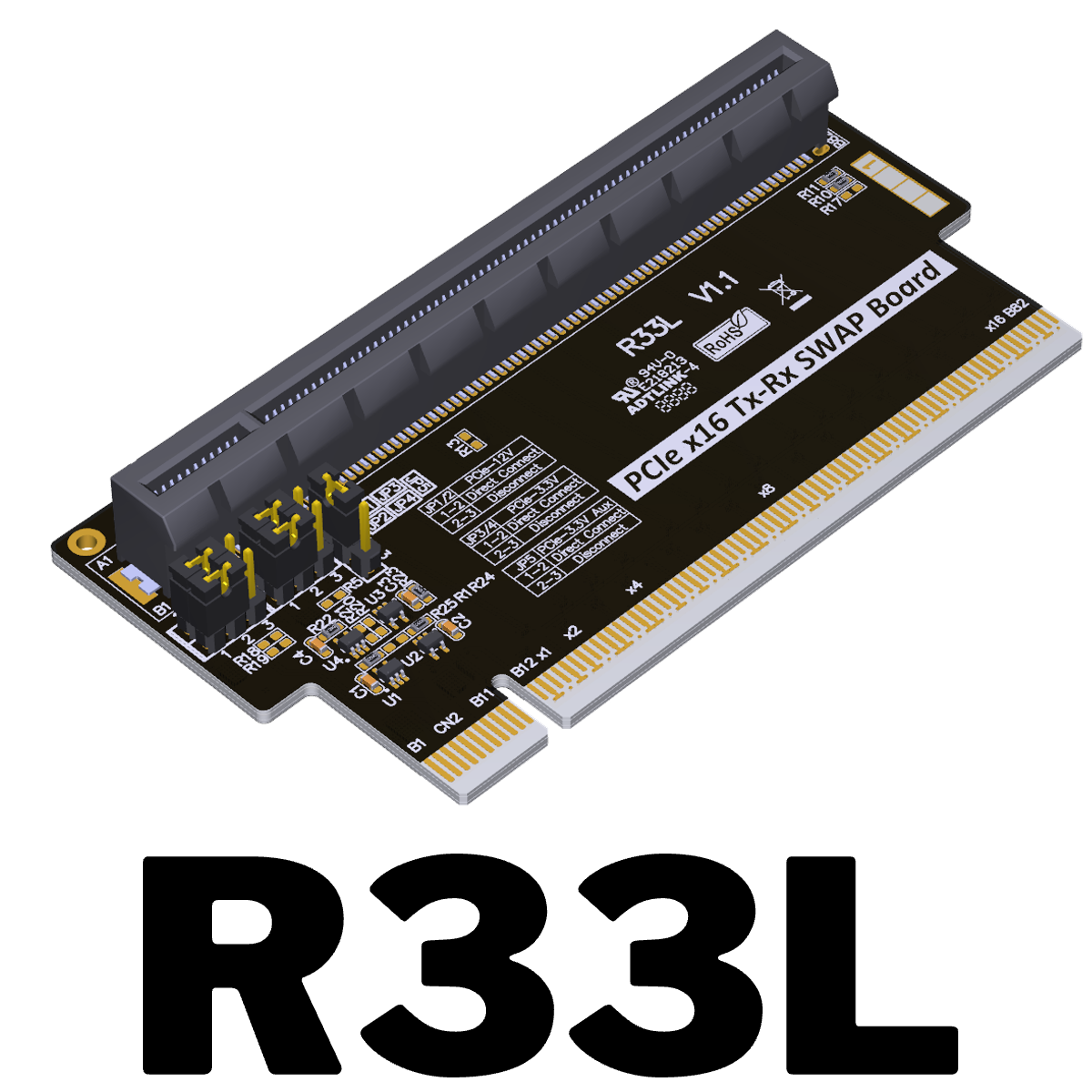

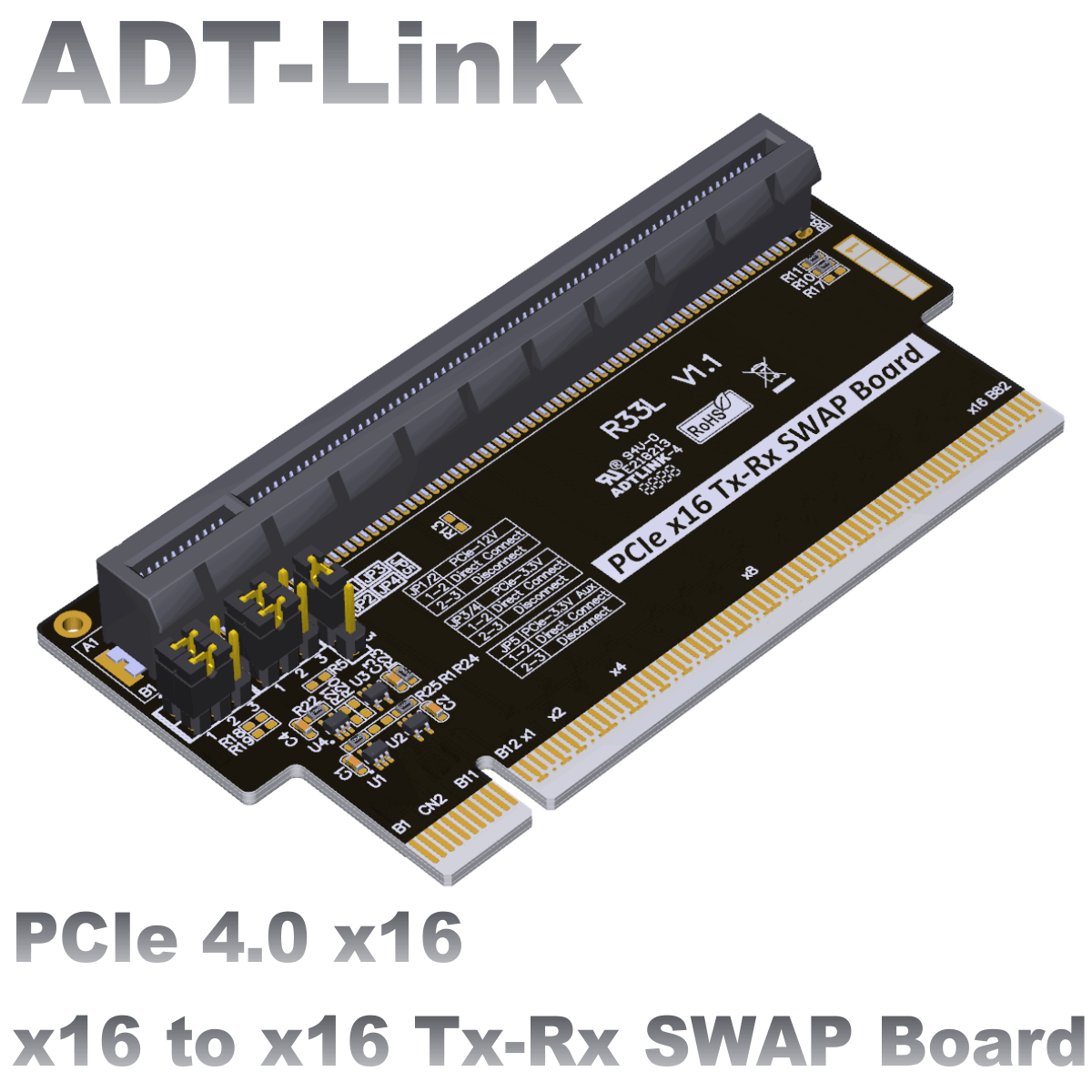

PCIe x16 male to x16 female Tx-Rx Swap Board

Brand name: ADT-LINK

Product name: PCIe x16 male to x16 female Tx-Rx Swap Board

Product model: R33L

Transfer speed: PCIe gen4 x16 (Max.)

Weight: 20g

Application: PCIe x16 extension adapter Steering Test Protection Card

Part-Number Description:

Features:

1. Supports PCIe 4.0 x16 with Gen3/Gen4 compatibility
2. Golden finger electroless gold plating process, compliant with IPC Class 1 international standards
3. LOTES High-Quality Connectors for Stable Signal Transmission
4. High-frequency, low-resistance, high-temperature resistant, and oxygen-resistant PCB substrate material with yellow crystal semi-transparency, no whitening or blackening, and no deformation
5. The jumper cap design allows for the disconnection of motherboard power supply, ensuring compatibility
6. Delay chip design, compliant with NVIDIA JETSON AGX XAVIER platform design specifications

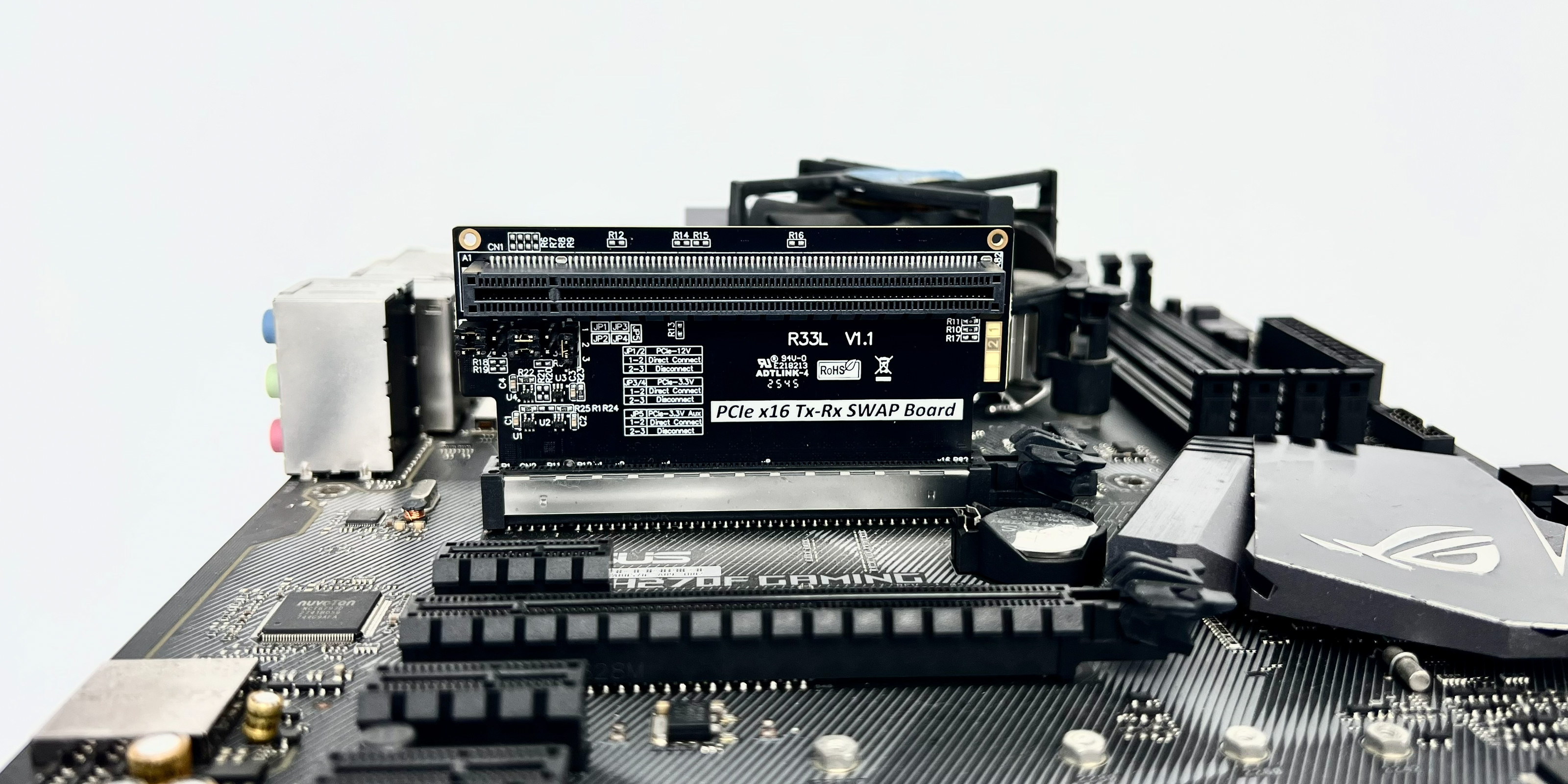

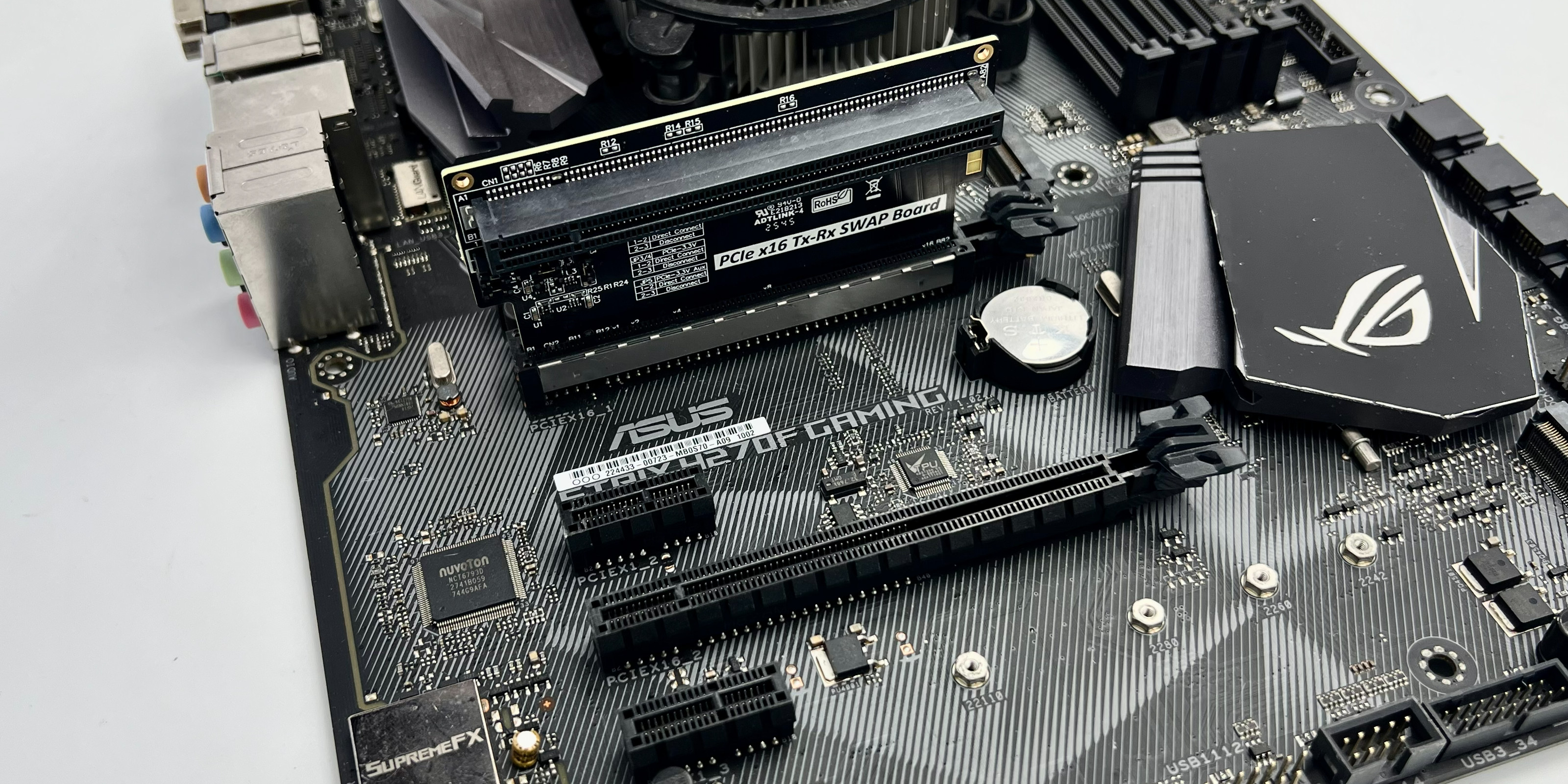

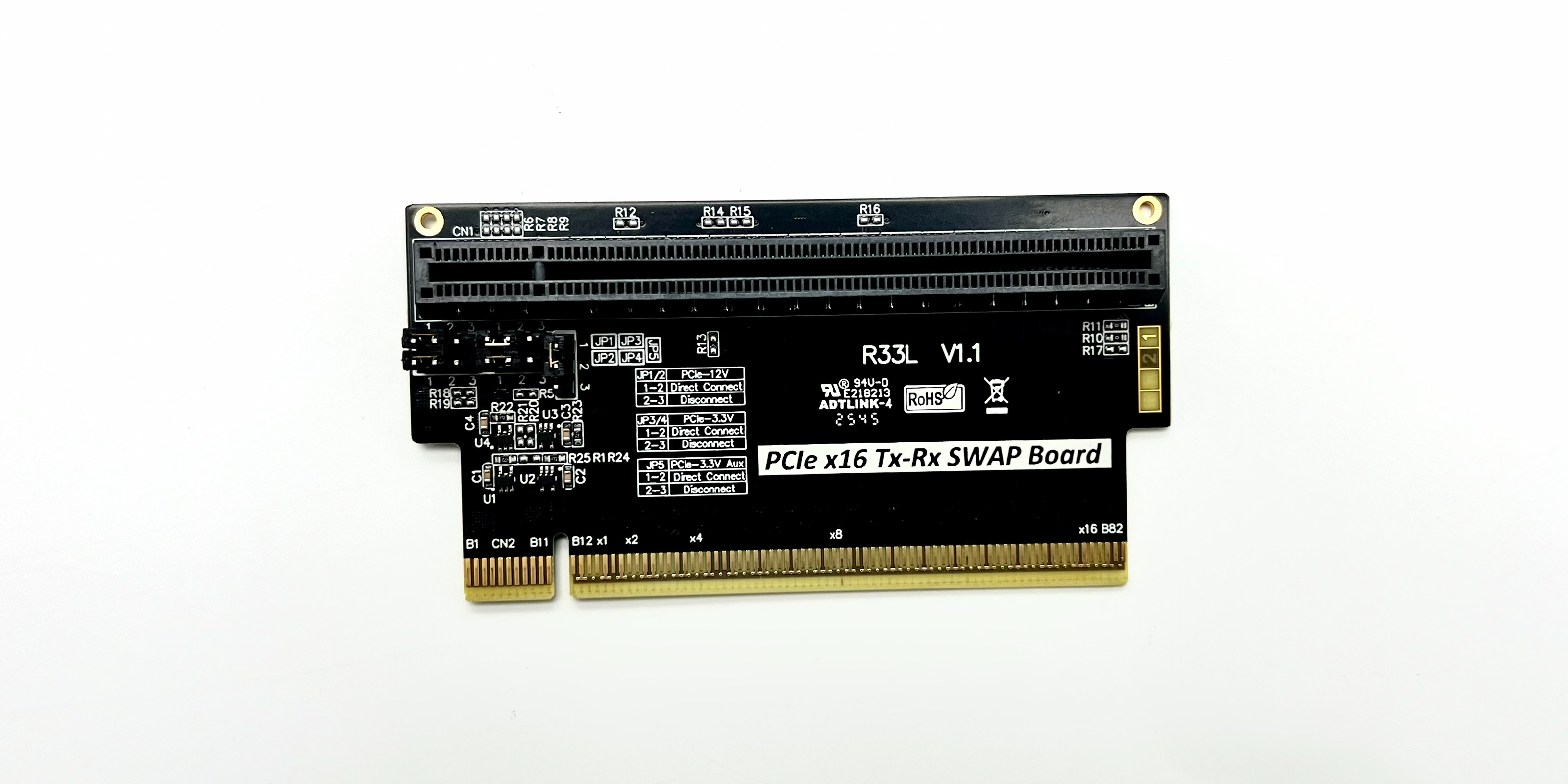

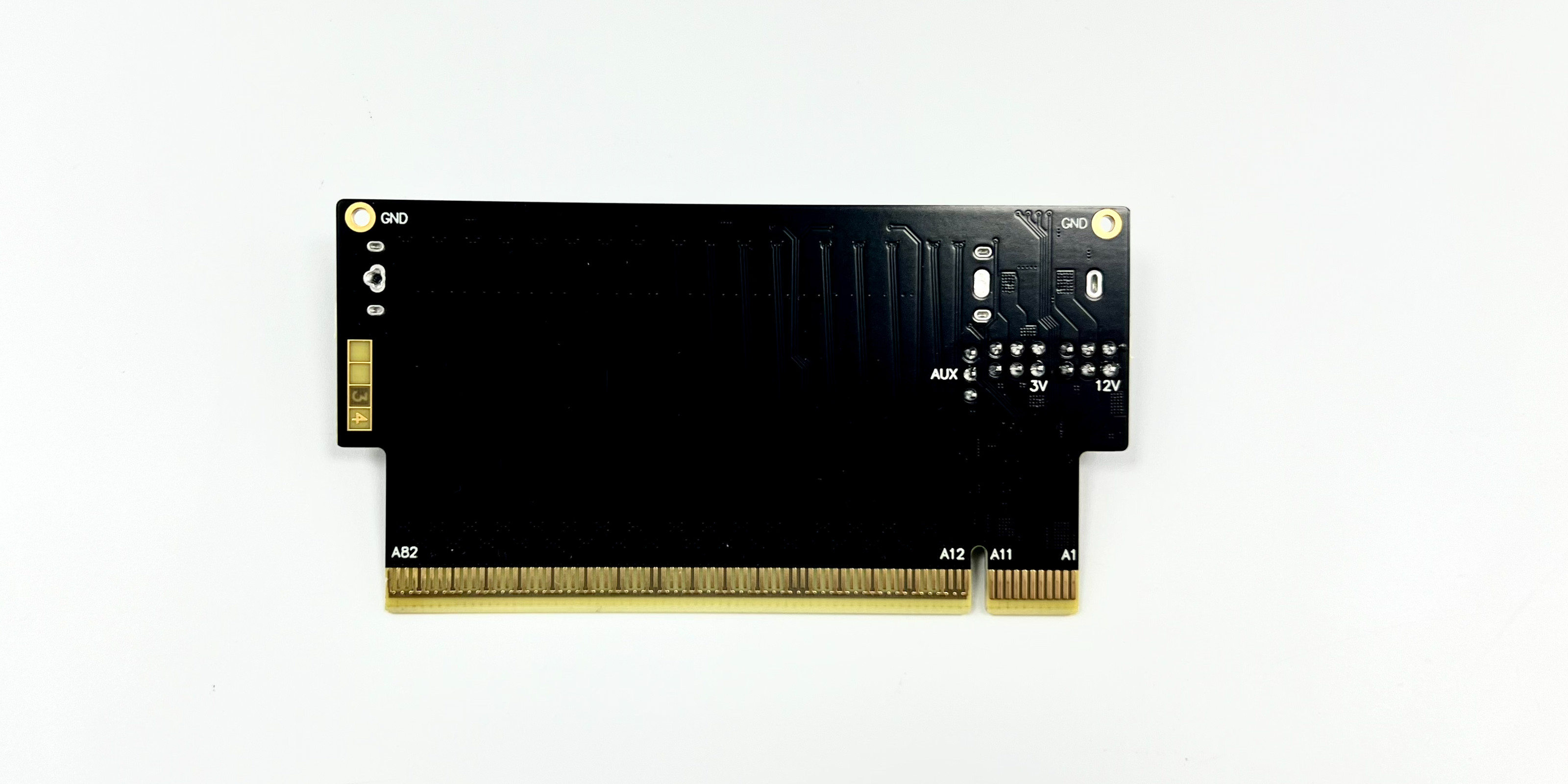

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

Schematic & 3D model files download https://www.adt.link/download/R33_RiserCard_3D.zip

Schematic file download:https://www.adt.link/download/R33L_V11_Schematic.pdf

FTP: Hong Kong

Schematic & 3D model files download https://www.adtlink.cn/download/R33_RiserCard_3D.zip

Schematic file download:https://www.adtlink.cn/download/R33L_V11_Schematic.pdf
