M.2 NVMe to PCIe x4 Extender

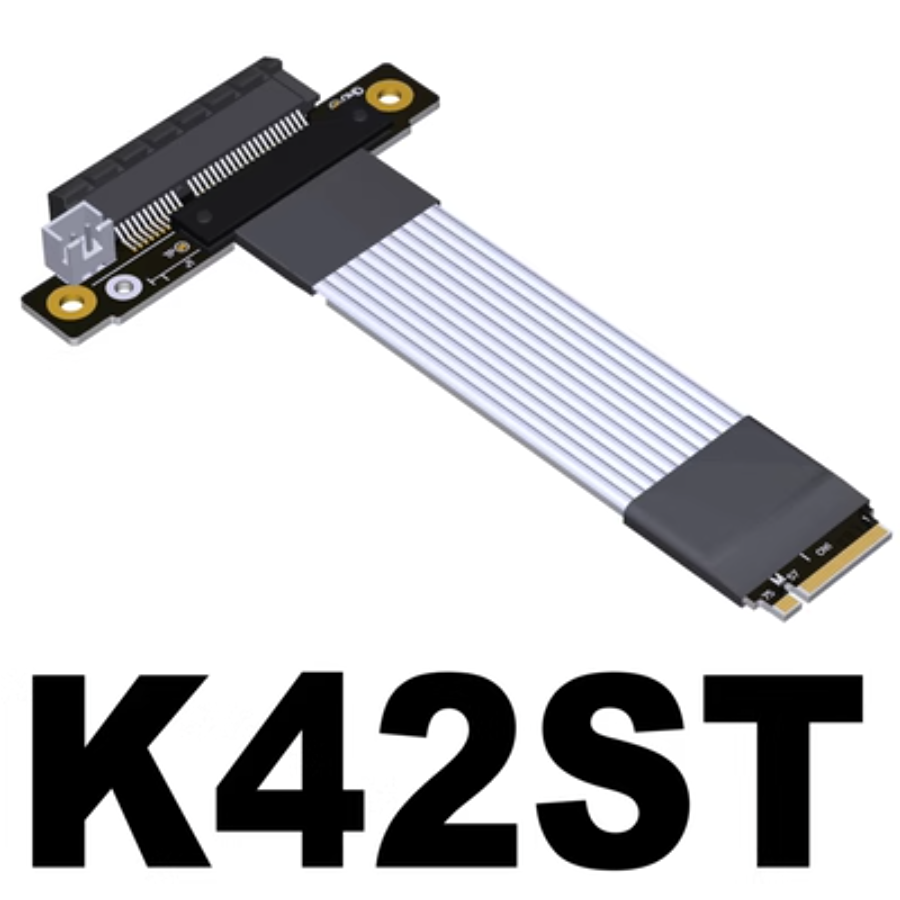

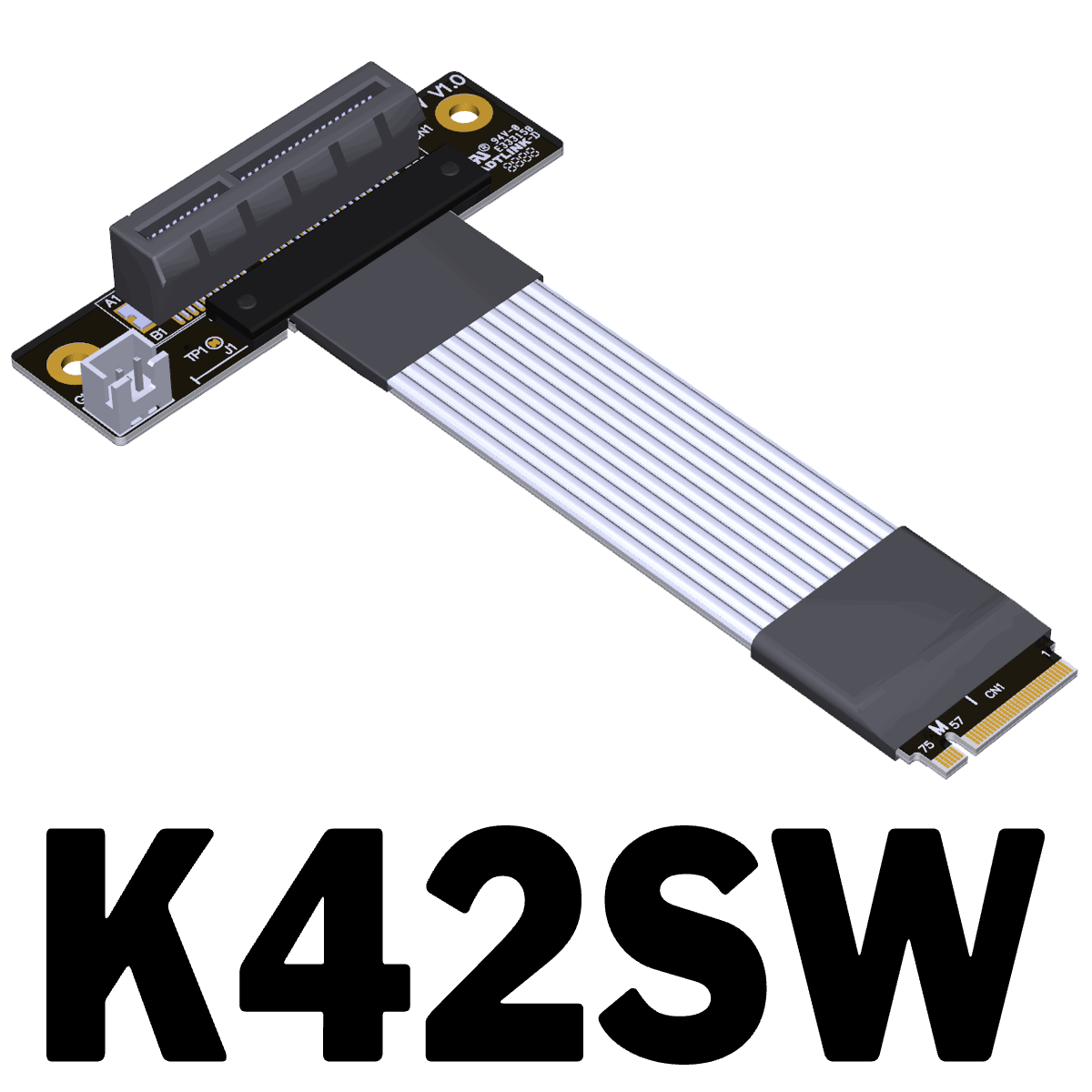

K42ST K42SW K42SP K42UT K42UP

Product name:M.2 NVMe to PCIe x4 extension cable

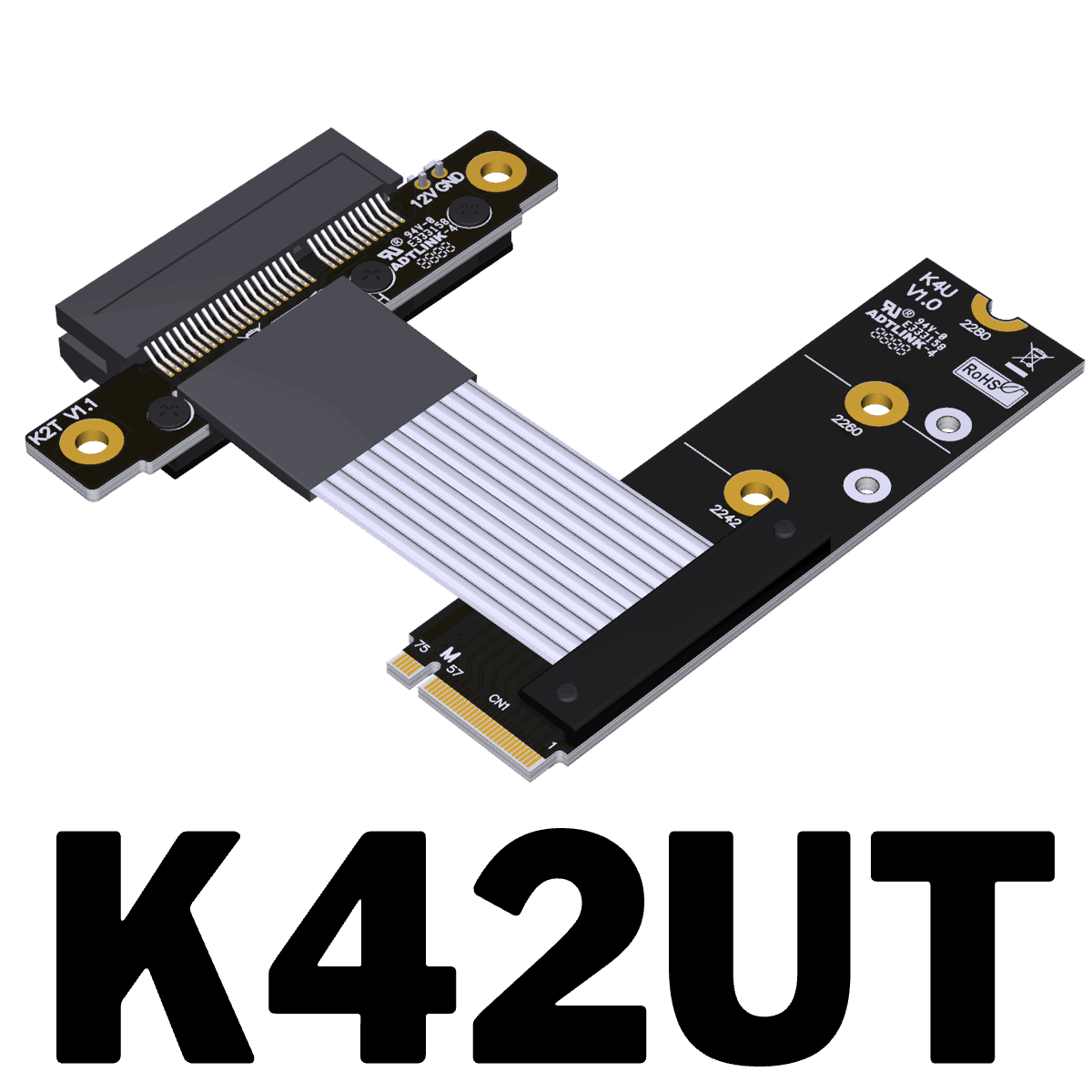

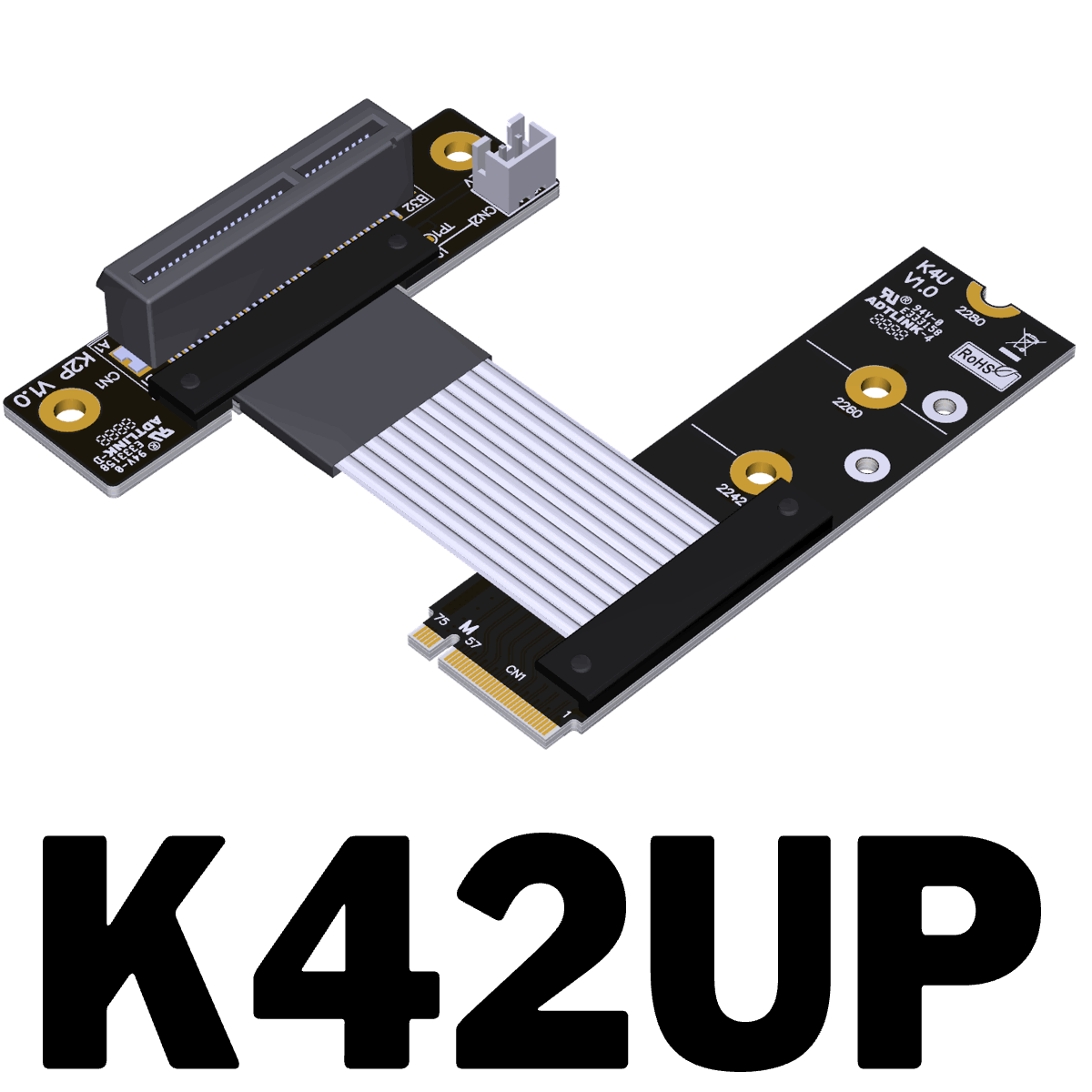

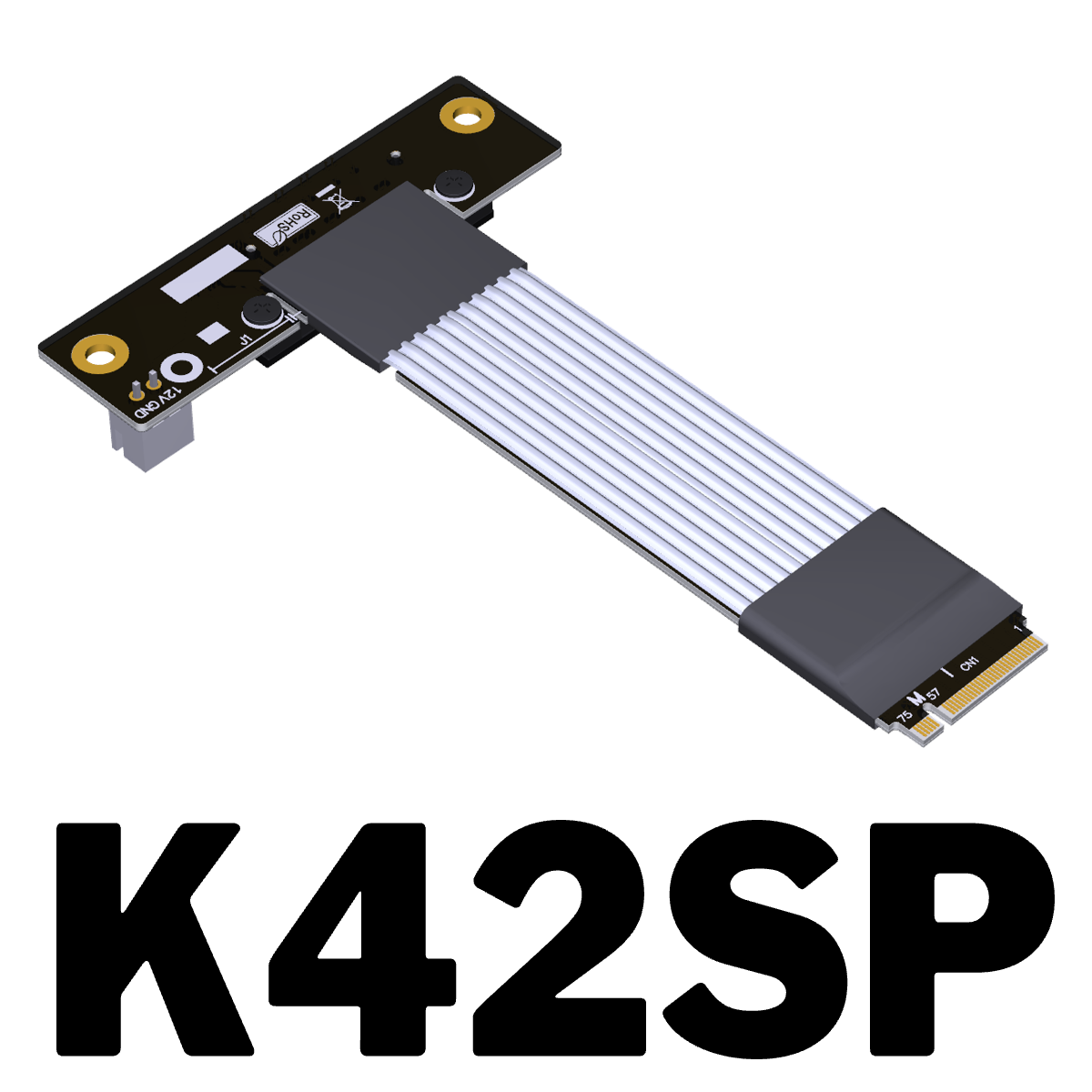

Product model: K42ST K42SW K42SP K42UT K42UP
Transferspeed:PCIe 4.0 x4, gen4, 64G/bps (Max.)
Application: PCIe x4 SSD RAID, LAN, Capture cards to M.2(ultra SSD, M-key)extension
Product description: ADT-Link Pcie 4.0 M.2 NVMe to PCI Express x4 Extender Adapter Cable with Metal Shield for PCIe x4 SSD RAID, LAN, Capture Cards to M.2(Ultra SSD, M-Key) Extension
INQUIRY

ADT-Link M.2 NVMe to PCI express x4 Extension Riser Cable

Brand name: ADT-LINK

Product name:M.2 NVMe to PCIe x4 extension cable

Product model: K42ST K42SW K42SP K42UT K42UP

Transferspeed:PCIe 4.0 x4, gen4, 64G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: PCIe x4 SSD RAID, LAN, Capture cards to M.2(ultra SSD, M-key)extension

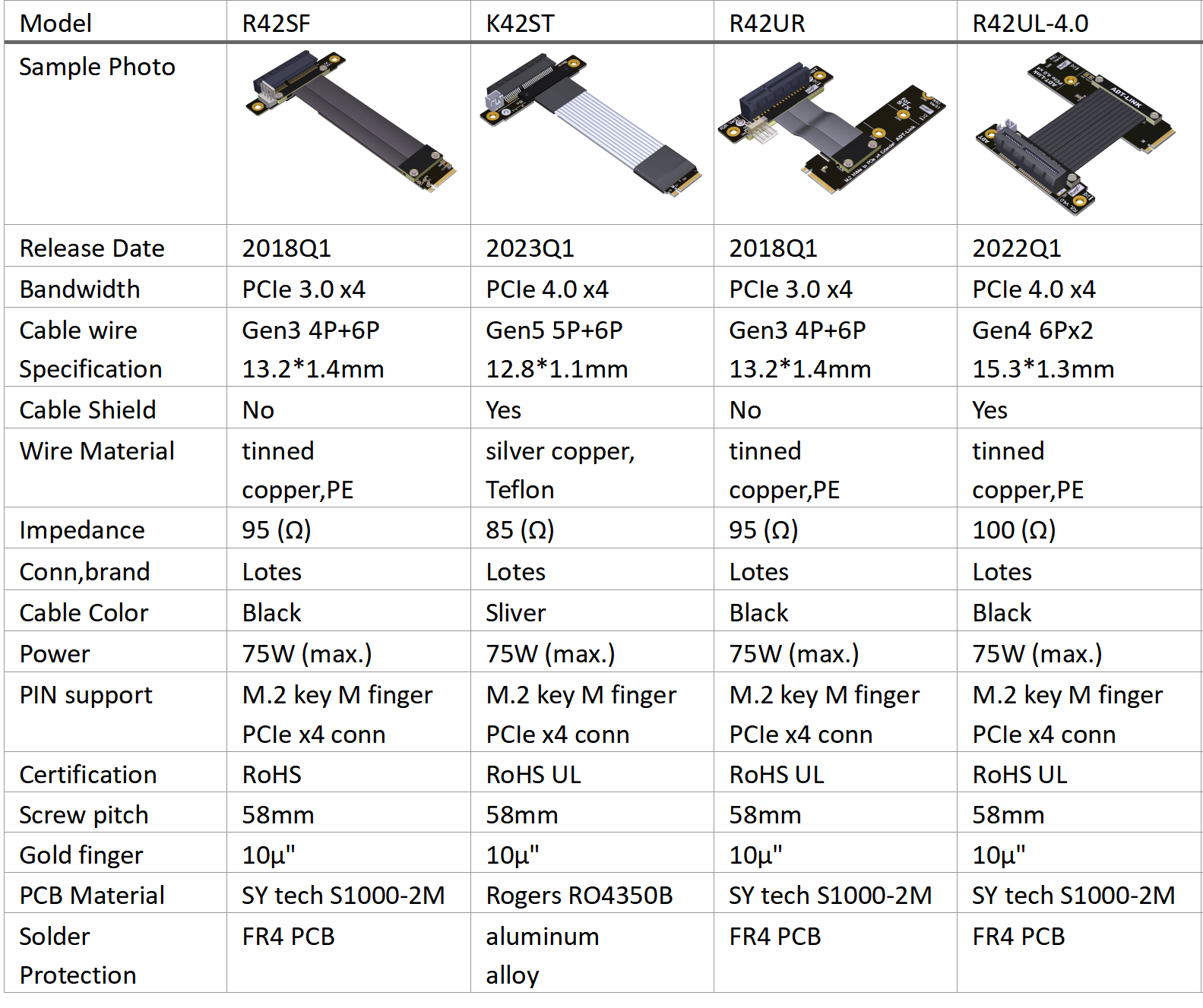

Part-Number Description:

Cable length Description:

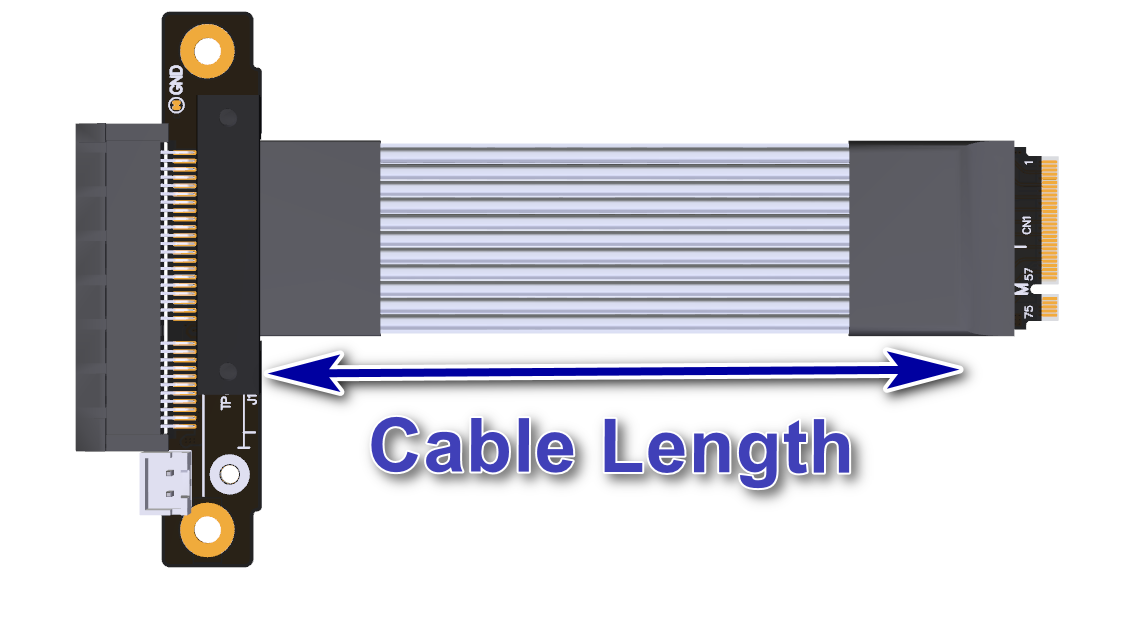

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A

Is there any EMI shielding for Cable?
With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.1mm, so the wire is softer. The wire can be bent or folded, but do not pull it.
